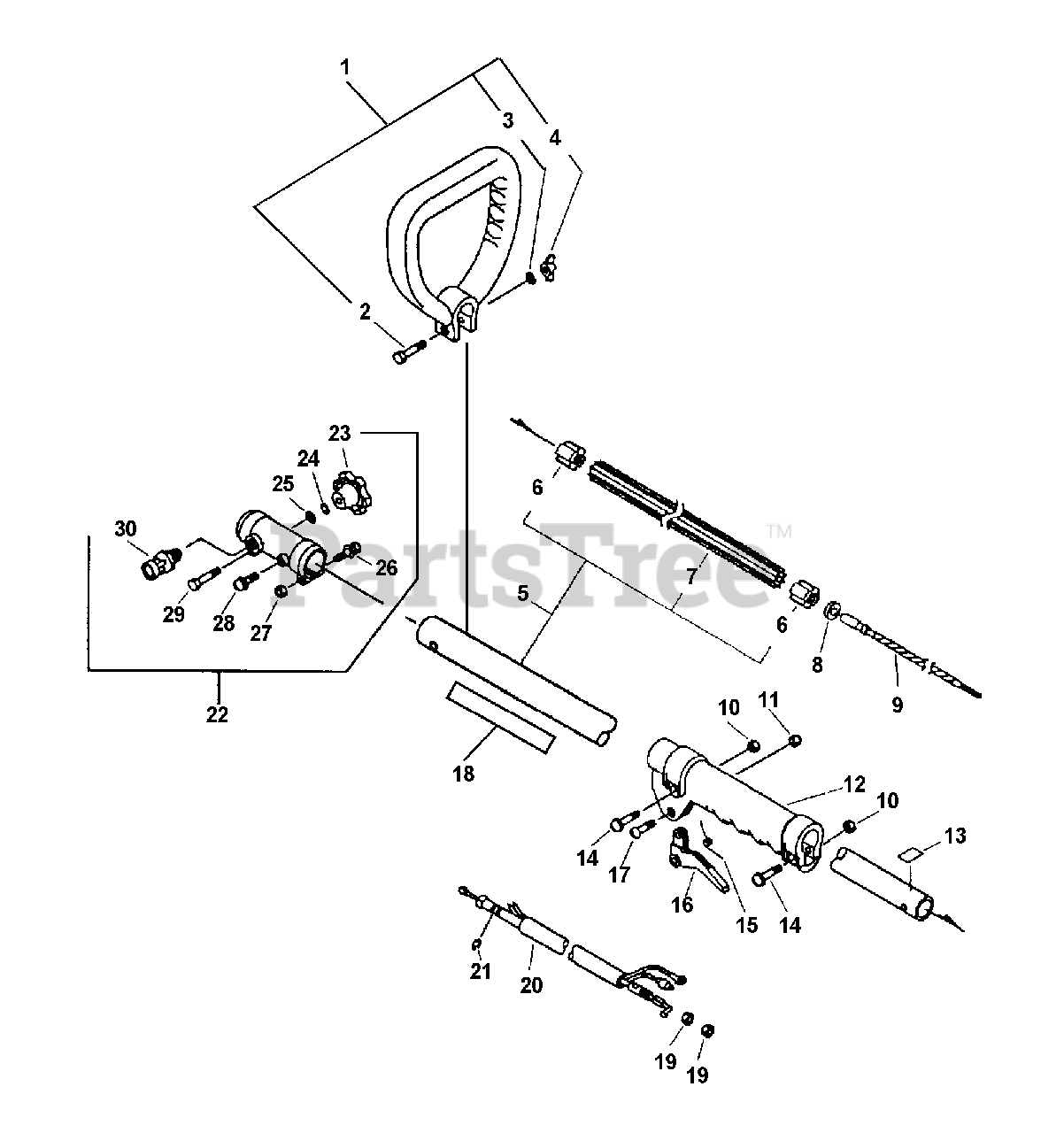

PAS-2000 - Echo PAS Series Powerhead (Type 1E) (SN: 001001 & Above) Upper Driveshaft, Coupler, Handles, Throttle Parts Diagram

PAS Series Powerhead (Type 1E)

Upper Driveshaft, Coupler, Handles, Throttle Parts Diagram

  • Title

1

Echo 35160044330

HANDLE ASSY - FRONT

Note: INCLUDES ITEMS 2 - 4

$24.99

$

In Stock, only 2 left!

0

2

Echo 90001708048

BOLT - 1/4-20 X 1-1/2"

$0.99

$

In Stock, Qty 7

0

3

Echo 90003500008

WASHER - 1/4"

$0.99

$

In Stock, Qty 10

0

4

Echo 90003300008

WINGNUT - 1/4-20

$0.99

$

In Stock, Qty 10

0

5

Echo 61020656630

MAIN PIPE ASSY

Note: Includes ITEMS 6 & 7

$46.99

$

Usually ships in 2-4 days

0

6

Echo 61024655330

BUSHING

$5.49

$

Usually ships in 2-4 days

0

7

Echo 61021756630

LINER - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

8

Echo 10025156630

CUSHION

$0.99

$

In Stock, Qty 15

0

9

Echo 61001355630

DRIVESHAFT - FLEXIBLE -- UPPER

$30.99

$

In Stock, only 1 left!

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

12

Echo 35121344330

GRIP, HANDLE

$16.99

$

In Stock, only 2 left!

0

13

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

14

Echo 90024005025

SCREW - 5X25
(Superseded to 90024205025)

$0.99

$

In Stock, Qty 20+

0

15

Echo 17804306930

SPRING, TRIGGER

$1.49

$

In Stock, Qty 5

0

16

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.99

$

In Stock, Qty 20+

0

17

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 14

0

18

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

19

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

20

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

21

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

22

Echo 61060156630

CLAMP, MAIN PIPE
(Superseded to 61060156631)

Note: INCLUDES ITEMS 23 - 30

$

$

Not available

23

Echo 35232527630

KNOB, FASTENER
(Superseded to V299000100)

$

$

Not available

24

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 90014205030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

27

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

28

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

29

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 9

0

30

Echo 17830256630

LATCH ASSY

$16.99

$

In Stock, only 2 left!

0
