PAS-2100 - Echo PAS Series Powerhead (Type 1E) (SN: 001001 & Above) Crankcase, Cover, Engine, Fan Cover Parts Diagram

PAS Series Powerhead (Type 1E)

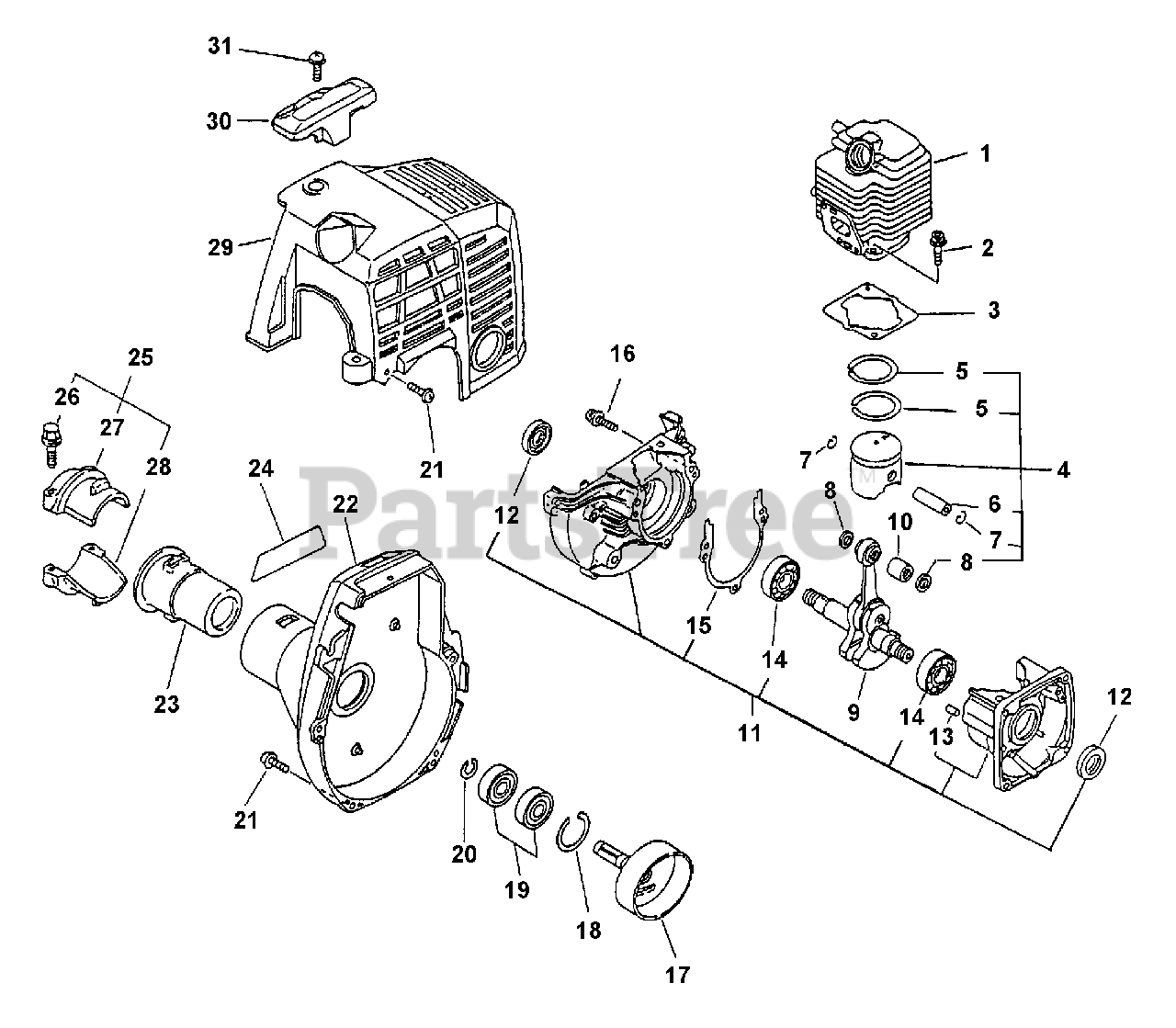

Crankcase, Cover, Engine, Fan Cover Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

$130.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 101010-44332

GASKET, CYLINDER

Note: INCLUDED IN KIT 88900042031

$4.99

$

In Stock, Qty 6

0

4

Echo 10000048732

PISTON KIT

Note: INCLUDES ITEMS 5 - 8

$77.99

$

In Stock, only 2 left!

0

5

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

CRANKSHAFT ASSY

Note: USE SB1026

$

$

Not available

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

CRANKCASE KIT

Note: USE SB1026

$

$

Not available

12

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

13

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

14

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

15

GASKET, CRANKCASE

Note: INCLUDED IN KIT 88900042031

$

$

Not available

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

17

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$16.99

$

In Stock, only 2 left!

0

18

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

22

Echo 10150352131

COVER ASSY, FAN

$78.99

$

Usually ships in 2-4 days

0

23

Echo 61091055230

CUSHION Ø25

$8.49

$

In Stock, only 2 left!

0

24

Echo 89011266030

LABEL, MODEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 61090355230

RETAINER KIT

Note: INCLUDES ITEMS 26 - 28

$21.99

$

Usually ships in 2-4 days

0

26

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

27

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

28

Echo A575000100

HOLDER - LOWER

$9.99

$

Usually ships in 2-4 days

0

29

Echo 10151448930

COVER, ENGINE

$14.99

$

In Stock, only 2 left!

0

30

Echo 15991254130

GUARD, TOP

$9.49

$

In Stock, only 3 left!

0

31

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

Echo SB1026

SHORT BLOCK ES-2100;PB-2100
(Superseded to Discontinued)

Note: OPTIONAL ENGINE RePower

$

$

Not available

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: (Optional);INCLUDES THE FOLLOWING

$19.99

$

In Stock, only 2 left!

0

Echo 101010-44332

GASKET, CYLINDER

Note: OPTIONAL

$4.99

$

In Stock, Qty 6

0

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.99

$

In Stock, Qty 10

0

Echo 130016-42031

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

Note: OPTIONAL

$2.99

$

In Stock, only 2 left!

0
