PAS-211 - Echo PAS Series Powerhead Crankcase, Cylinder Cover, Engine Parts Diagram

PAS Series Powerhead

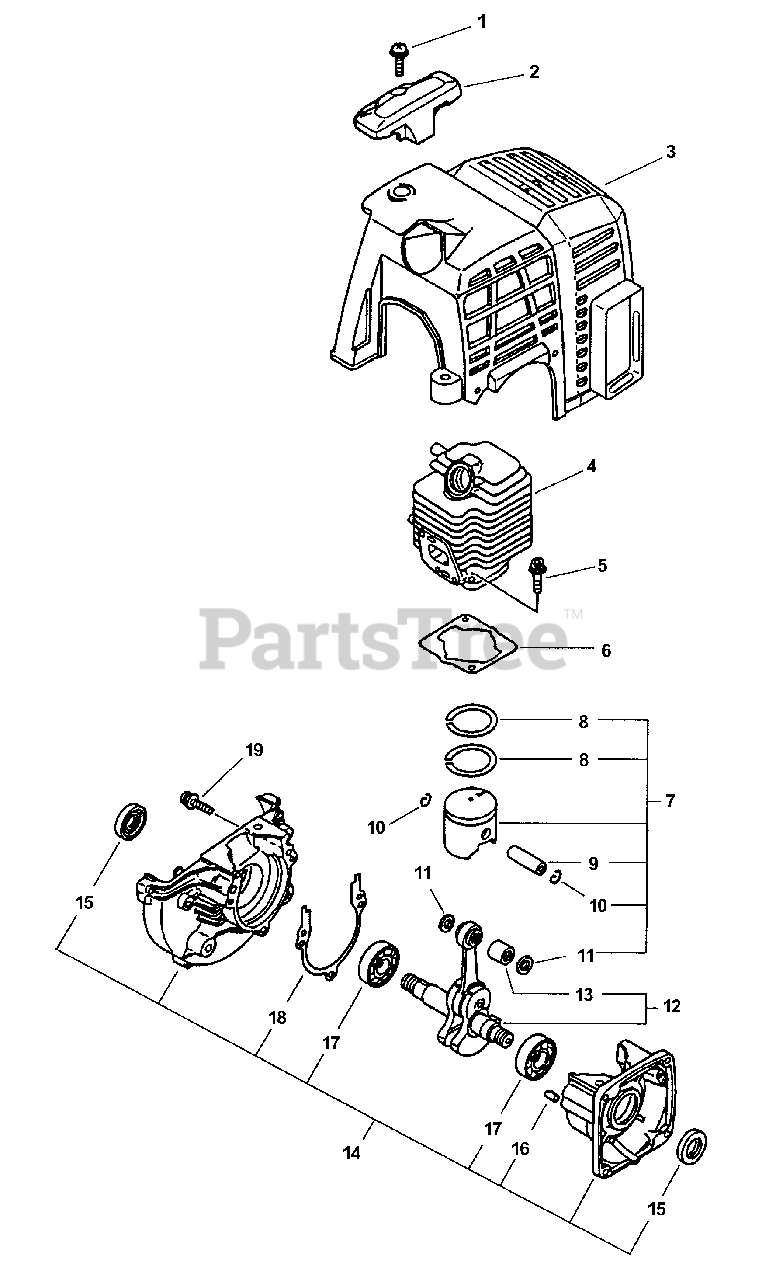

Crankcase, Cylinder Cover, Engine Parts Diagram

  • Title

1

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

2

Echo 15991254130

GUARD, TOP

$9.49

$

In Stock, only 2 left!

0

3

Echo A160000180

COVER, ENGINE
(Superseded to A160000181)

$13.99

$

In Stock, only 3 left!

0

4

Echo A130000091

CYLINDER
(Superseded to A130000101)

$138.99

$

Usually ships in 2-4 days

0

5

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

6

Echo V100000020

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Included In GASKET KIT

$

$

Not available

7

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: INCLUDES ITEMS 8-11

$93.99

$

In Stock, only 2 left!

0

8

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

9

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

10

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

11

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

12

CRANKSHAFT ASSY

Note: USE P/N SB1048 INCLUDES ITEM 13

$

$

Not available

13

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 1 left!

0

14

CRANKCASE KIT

Note: USE P/N SB1048 INCLUDES ITEMS 15-18

$

$

Not available

15

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

16

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

17

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 4 left!

0

18

GASKET, CRANKCASE

Note: Included In GASKET KIT

$

$

Not available

19

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

Echo SB1048

SHORT BLOCK
(Superseded to Discontinued)

Note: INCLUDES ITEMS 4-15

$

$

Not available
