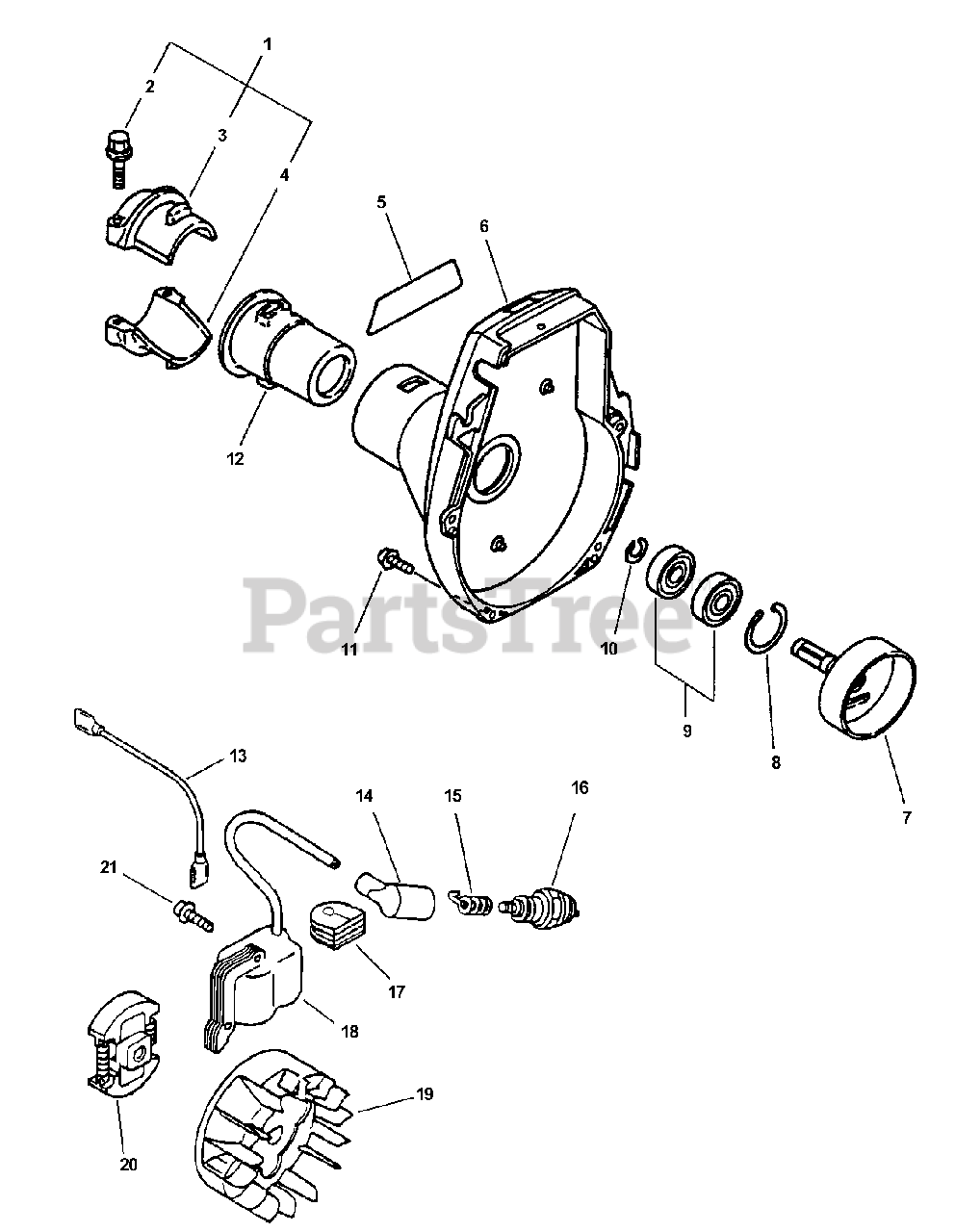

PAS-211 - Echo PAS Series Powerhead Fan Housing Assembly, Clutch, Ignition Parts Diagram

PAS Series Powerhead

Fan Housing Assembly, Clutch, Ignition Parts Diagram

  • Title

1

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: Includes ITEM 2-4

$21.99

$

Usually ships in 2-4 days

0

2

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0

3

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

4

Echo A575000100

CLAMP, MAIN PIPE - LOWER

$9.99

$

Usually ships in 2-4 days

0

5

Echo X503001390

LABEL - MODEL PAS-211
(Superseded to Discontinued)

$

$

Not available

6

Echo 10150352131

CASE, FAN

$78.99

$

Usually ships in 2-4 days

0

7

Echo 17500548931

DRUM, CLUTCH

$16.99

$

In Stock, only 4 left!

0

8

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

9

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

10

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

11

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 11

0

12

Echo 61091055230

CUSHION

$8.49

$

In Stock, only 2 left!

0

13

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

14

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 7

0

15

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

16

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

17

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 16

0

18

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$143.99

$

In Stock, only 1 left!

0

19

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

$68.99

$

Usually ships in 2-4 days

0

20

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$32.99

$

In Stock, only 2 left!

0

21

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0
