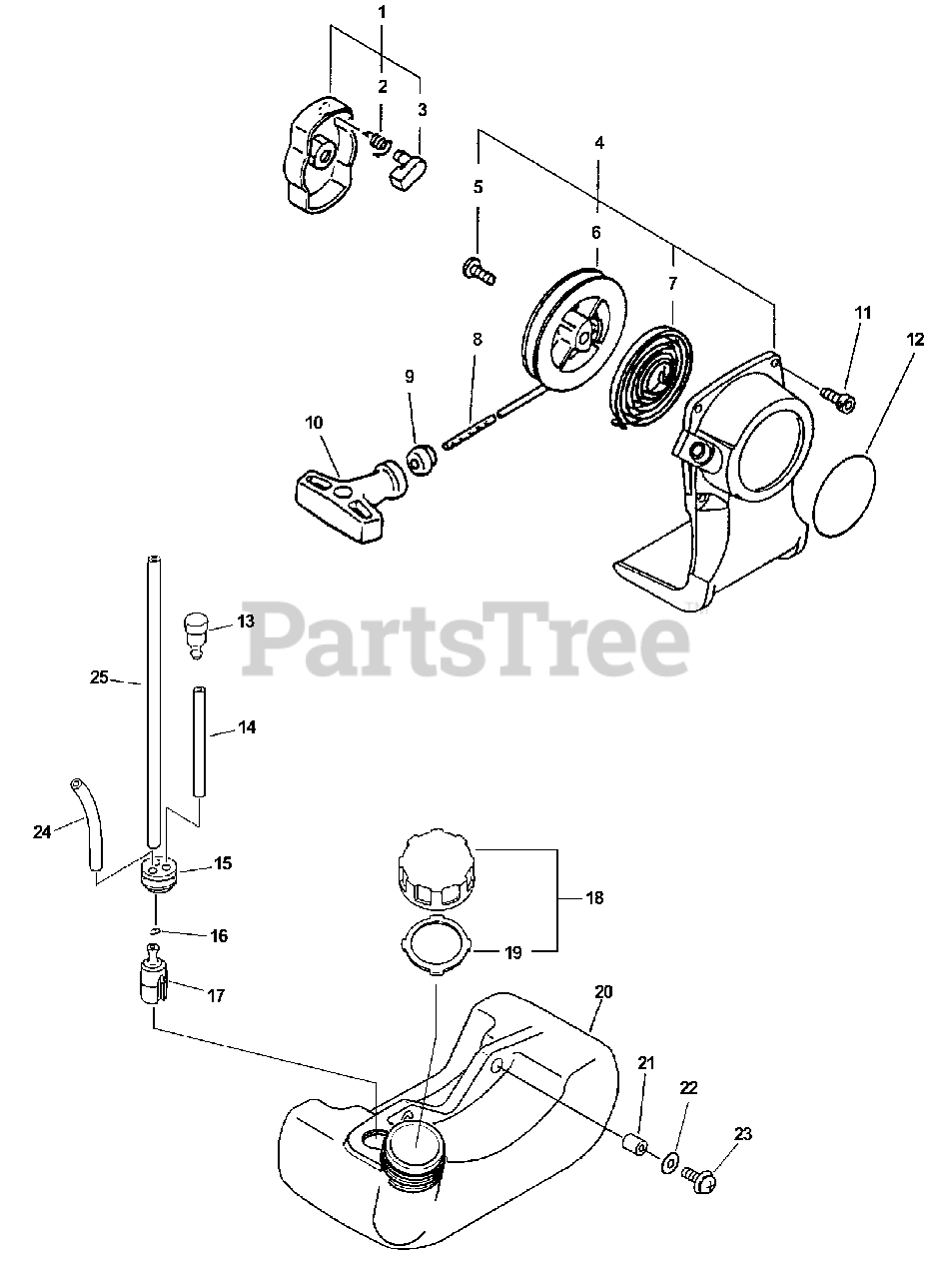

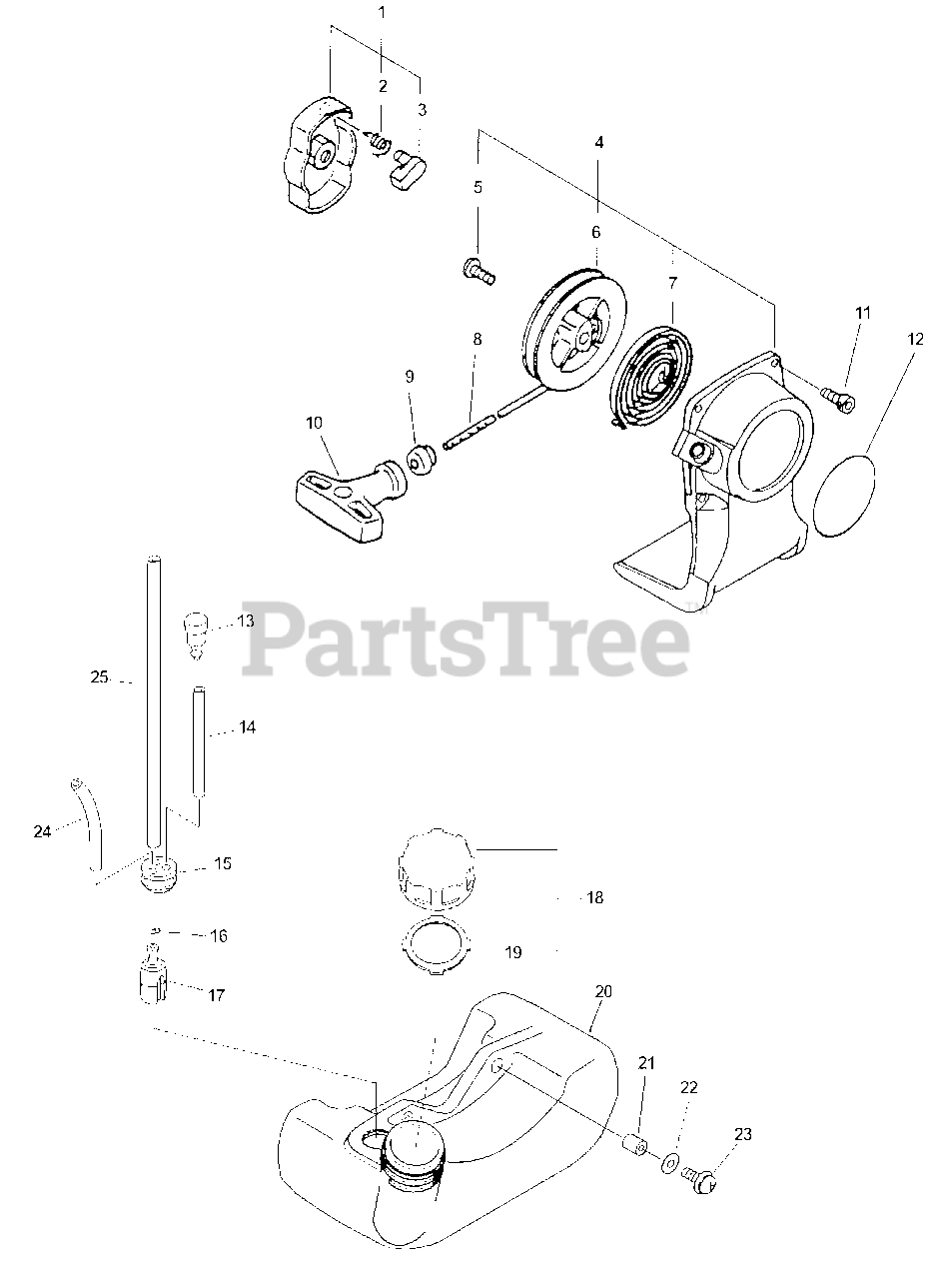

PAS-211 - Echo PAS Series Powerhead Starter Assembly, Fuel System Parts Diagram

PAS Series Powerhead

Starter Assembly, Fuel System Parts Diagram

  • Title

1

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 2 & 3

$11.99

$

In Stock, Qty 8

0

2

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

3

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

4

Echo 17720054130

STARTER ASSY

Note: INCLUDES ITEMS 5-10

$53.99

$

In Stock, only 3 left!

0

5

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

6

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 5

0

7

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

------------------

ROPE, STARTER 3.0×890

Note: RePower BULK OPTION: 99944440000

$

$

Not available

9

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

10

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

11

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

12

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

13

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

14

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

15

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

16

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

17

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

18

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: Includes ITEM 19

$5.49

$

In Stock, only 2 left!

0

19

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

20

Echo A350000030

TANK, FUEL
(Superseded to A350000031)

$21.99

$

In Stock, Qty 9

0

21

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

22

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

24

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 9

0

25

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
