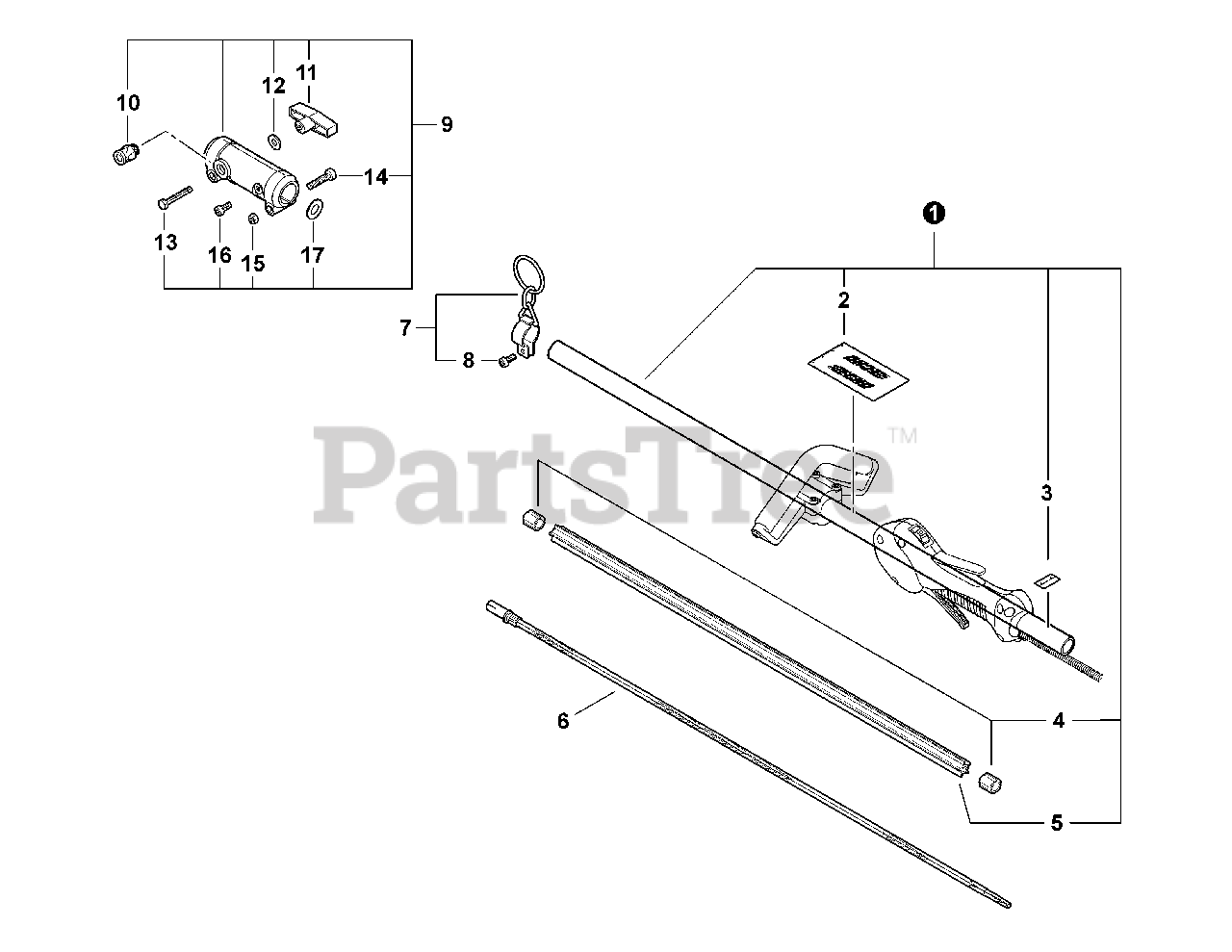

PAS-225 - Echo PAS Series Powerhead (SN: S86813001001 - S86813999999) Main Pipe Assembly - Upper Parts Diagram

PAS Series Powerhead

Main Pipe Assembly - Upper Parts Diagram

  • Title

1

Echo C050001240

MAIN PIPE ASSY

Note: Includes Items 2-5

$25.99

$

In Stock, Qty 13

0

2

Echo X505001930

LABEL - HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

0

3

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

4

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

5

Echo C507000230

LINER - FLEXIBLE

$16.99

$

In Stock, Qty 20+

0

6

Echo C506000042

DRIVESHAFT - FLEXIBLE

$16.99

$

In Stock, Qty 9

0

7

Echo C646000060

HARNESS HANGER KIT
(Superseded to P021046740)

Note: Includes Item 8

$3.49

$

In Stock, Qty 20+

0

8

Echo V805000140

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

9

Echo C510000180

COUPLER ASSY
(Superseded to C510000330)

Note: Includes Items 10-17

$39.99

$

In Stock, Qty 20+

0

10

Echo 17830256630

LATCH ASSY

$13.99

$

In Stock, Qty 20+

0

11

Echo V299000160

WINGNUT
(Superseded to V299000660)

$3.99

$

In Stock, Qty 20+

0

12

Echo V304000040

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

13

Echo 9108506040

BOLT - 6X40

$0.99

$

In Stock, Qty 20+

0

14

Echo V806000020

SCREW - 6X25

$0.99

$

In Stock, Qty 20+

0

15

Echo 90051400006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

16

Echo V805000130

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

17

Echo V312000010

WASHER - 18

$0.99

$

In Stock, Qty 20+

0
