PAS-225 - Echo PAS Series Powerhead (SN: T44912001001 - T44912999999) Fuel System Parts Diagram

PAS Series Powerhead

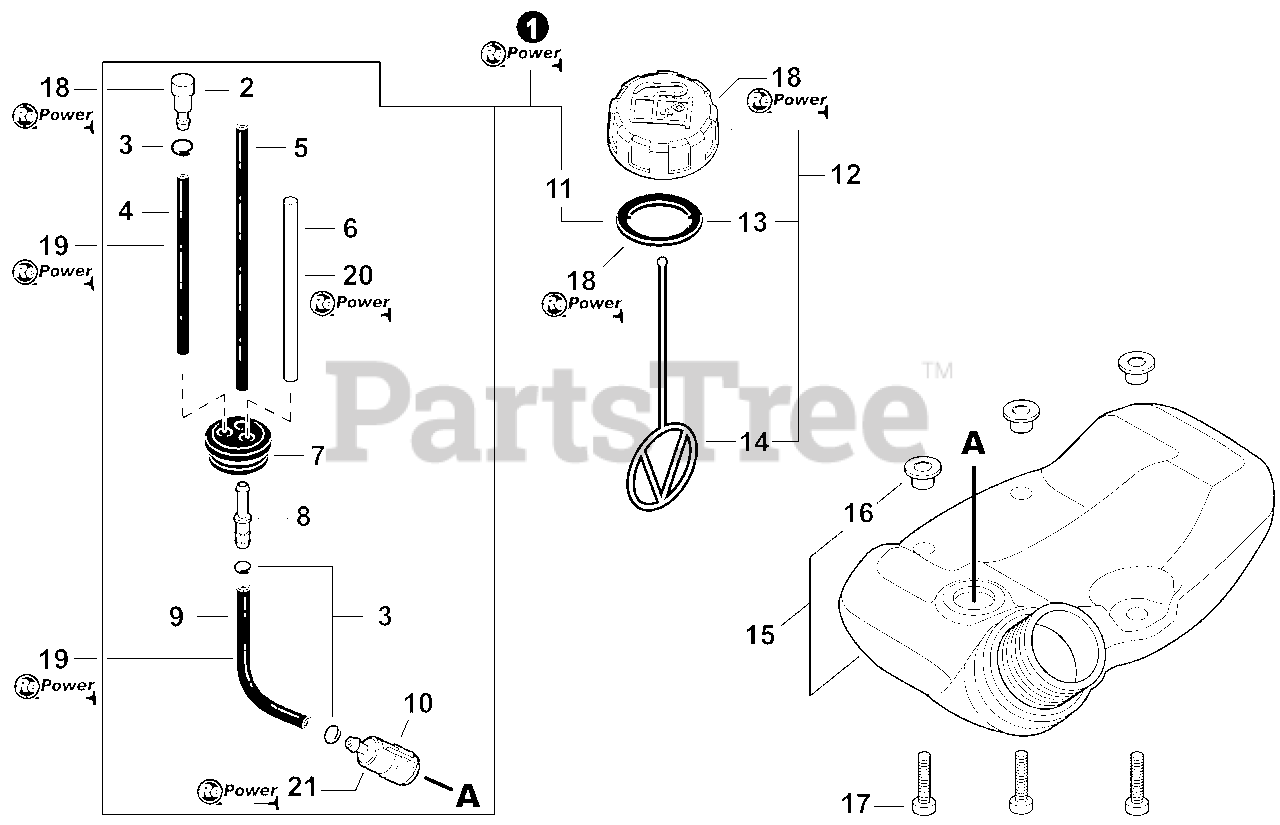

Fuel System Parts Diagram

  • Title

1

Echo 90127BP

FUEL SYSTEM KIT
(Superseded to 90127)

Note: Includes Items 2-11 See RePower Maintenance Kits

$30.99

$

Usually ships in 2-4 days

0

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001210

PIPE, FUEL 3x5x90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

5

Echo V471003691

PIPE, FUEL 3x5x74 BLACK
(Superseded to V471005620)

$3.99

$

In Stock, Qty 18

0

6

Echo 13201256030

PIPE, FUEL 3x6x80 YELLOW

$3.49

$

In Stock, Qty 6

0

7

Echo 13211546730

GROMMET, FUEL 5

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003700

PIPE, FUEL 3x5x130 BLACK

$1.49

$

In Stock, Qty 7

0

10

Echo 13120507321

FILTER, FUEL
(Superseded to A369000480)

$6.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

12

Echo P021040430

CAP ASSY, FUEL

Note: Includes Items 13-14

$6.99

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

Note: See RePower Maintenance Kits

$4.99

$

In Stock, Qty 20+

0

14

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

15

Echo A350000780

TANK ASSY, FUEL

Note: Includes Item 16

$25.99

$

In Stock, only 3 left!

0

16

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

17

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

18

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

Note: See RePower Maintenance Kits

$

$

Not available

19

Echo 90014

BULK PIPE - 3x5 MM BLACK (4 PIECESx2 M)

Note: See RePower Maintenance Kits

$50.99

$

In Stock, Qty 9

0

20

Echo 90017

BULK PIPE - 3x6 MM CLEAR (4 PIECESx2 M)

Note: See RePower Maintenance Kits

$69.99

$

In Stock, only 1 left!

0

21

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

Note: See RePower Maintenance Kits

$21.99

$

In Stock, Qty 20+

0
