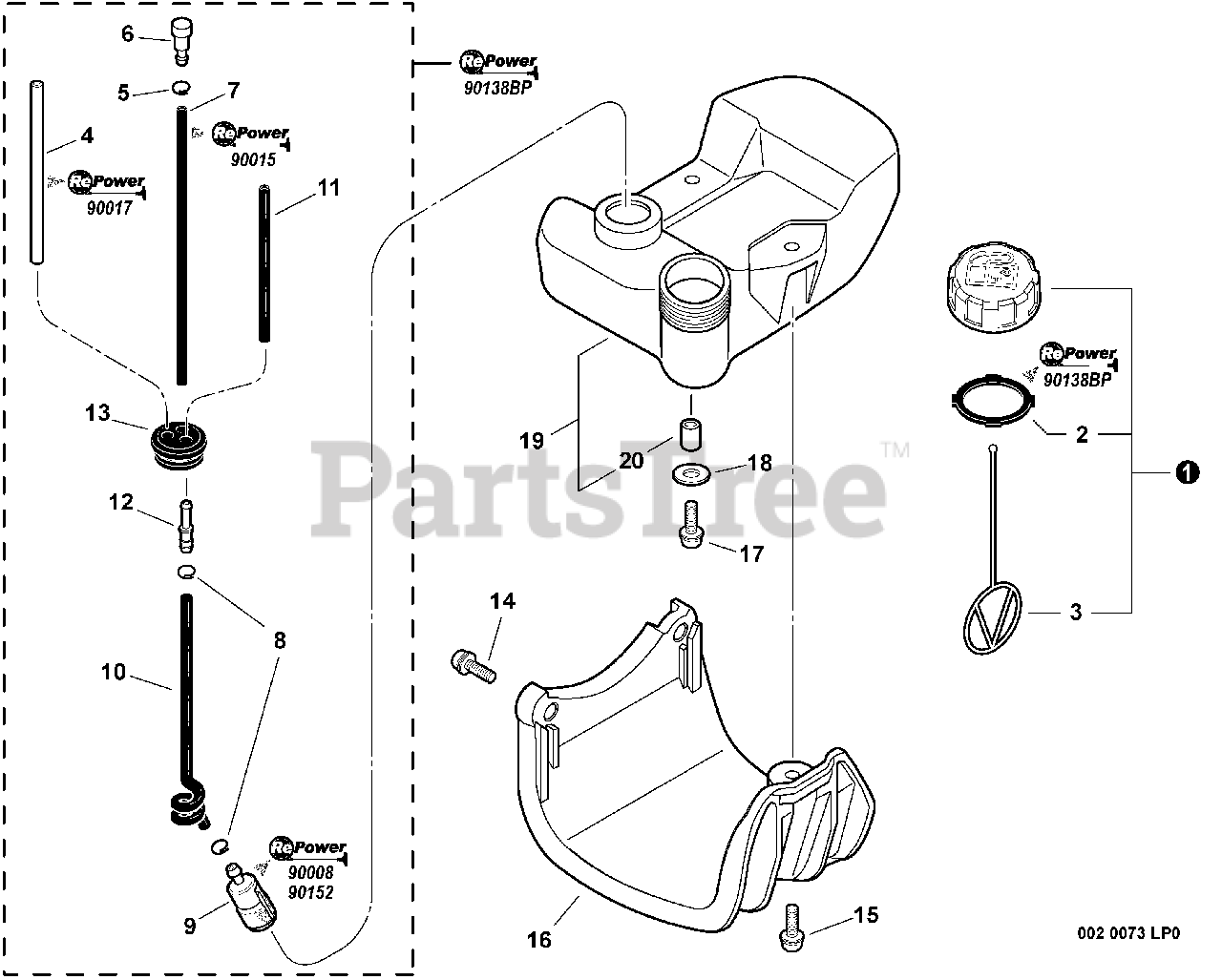

PAS-230 - Echo PAS Series Powerhead (SN: S75212021001 - S75212025631) Fuel System Parts Diagram

PAS Series Powerhead

Fuel System Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, FUEL CAP

Note: Included In RePower KIT

$4.99

$

In Stock, only 4 left!

0

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

4

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

6

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

7

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, only 4 left!

0

8

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In RePower KIT

$9.99

$

In Stock, Qty 20+

0

10

Echo V471003080

PIPE, FUEL 3×6×105

$5.99

$

Usually ships in 2-4 days

0

11

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

Note: RePower BULK OPTION: N/A

$3.99

$

In Stock, Qty 13

0

12

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

13

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

14

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

15

Echo 90024405020

SCREW 5×20

$1.49

$

In Stock, Qty 5

0

16

Echo 30511057733

GUARD, FUEL TANK

$17.99

$

In Stock, only 2 left!

0

17

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

18

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo A350000660

TANK, FUEL
(Superseded to A350002320)

Note: Includes ITEM 20

$

$

Not available

20

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

21

Echo 90138BP

FUEL SYSTEM KIT
(Superseded to Discontinued)

$

$

Not available

22

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$21.99

$

In Stock, Qty 20+

0

23

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

24

Echo 90015

BULK PIPE - 3×6 MM BLACK (4 PIECES×2 M)

$48.99

$

In Stock, only 1 left!

0

25

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: CLEAR

$69.99

$

In Stock, only 2 left!

0
