PAS-230 - Echo PAS Series Powerhead (SN: S82713001001 - S82713999999) Fuel System S/N: S82713001001 - S82713004381 Parts Diagram

PAS Series Powerhead

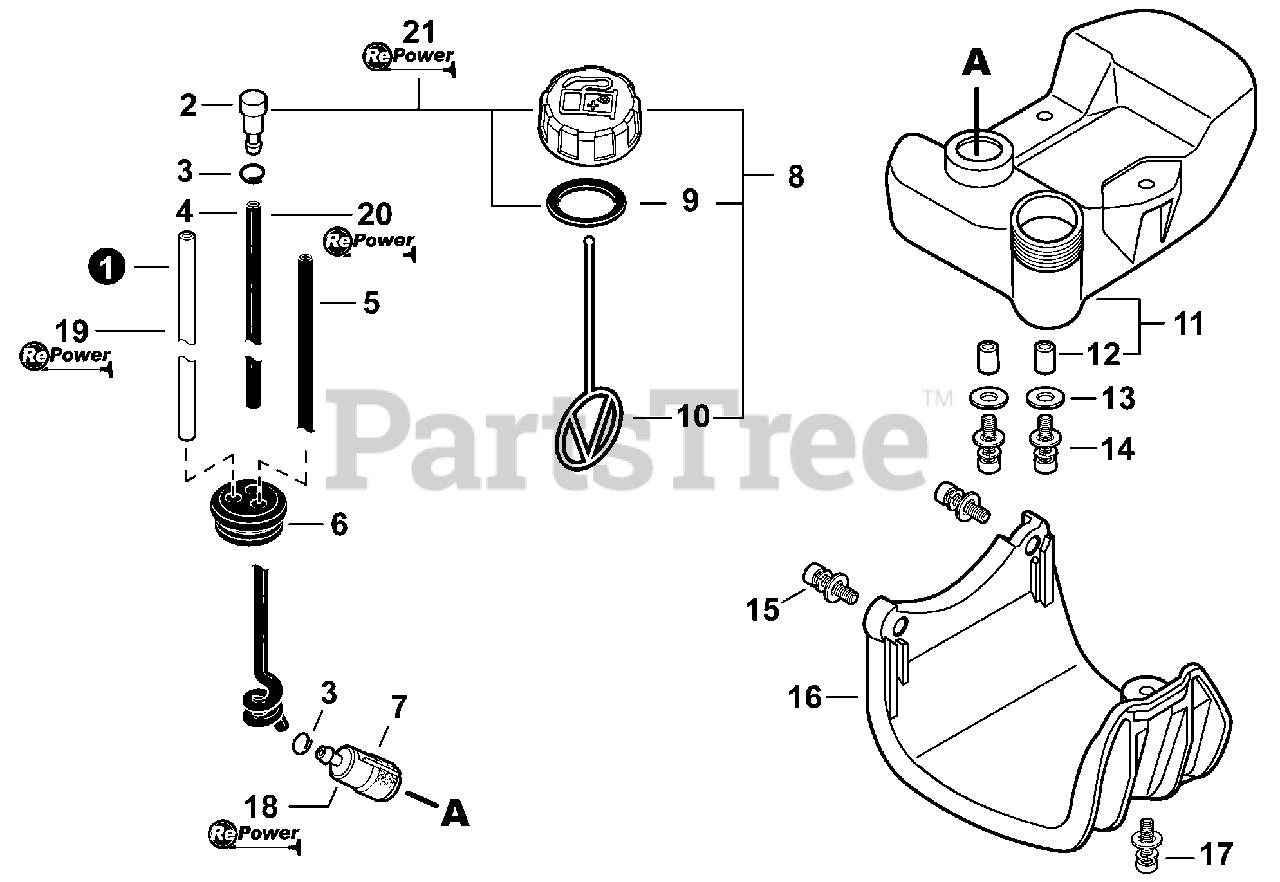

Fuel System S/N: S82713001001 - S82713004381 Parts Diagram

  • Title

1

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

2

Echo A356000030

VENT ASSY
(Superseded to A356000031)

Note: Included In Cap/Vent Kit

$9.49

$

In Stock, Qty 20+

0

3

Echo 13201326630

CLIP 6.5 MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, only 3 left!

0

5

Echo 13201038331

PIPE, FUEL 3×6×165
(Superseded to 13201038332)

$9.99

$

In Stock, only 2 left!

0

6

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 19

0

7

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In Tune-up Kit

$9.99

$

In Stock, Qty 20+

0

8

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 9-10

$7.49

$

In Stock, Qty 8

0

9

Echo 131016-55830

GASKET, FUEL CAP

Note: Included In Fuel system Kit

$

$

Not available

10

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, only 4 left!

0

11

Echo A350000660

TANK, FUEL
(Superseded to A350002320)

Note: Includes ITEM 12

$

$

Not available

12

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

13

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

15

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

16

Echo 30511057733

GUARD, FUEL TANK

$17.99

$

In Stock, only 2 left!

0

17

Echo 90024405020

SCREW 5×20

$1.49

$

In Stock, Qty 5

0

18

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$21.99

$

In Stock, Qty 18

0

19

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: See Maintenance Kits

$69.99

$

In Stock, only 1 left!

0

20

Echo 90015

BULK PIPE - 3×6 MM BLACK (4 PIECES×2 M)

Note: See Maintenance Kits

$48.99

$

In Stock, only 1 left!

0

21

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

Note: See Maintenance Kits

$

$

Not available
