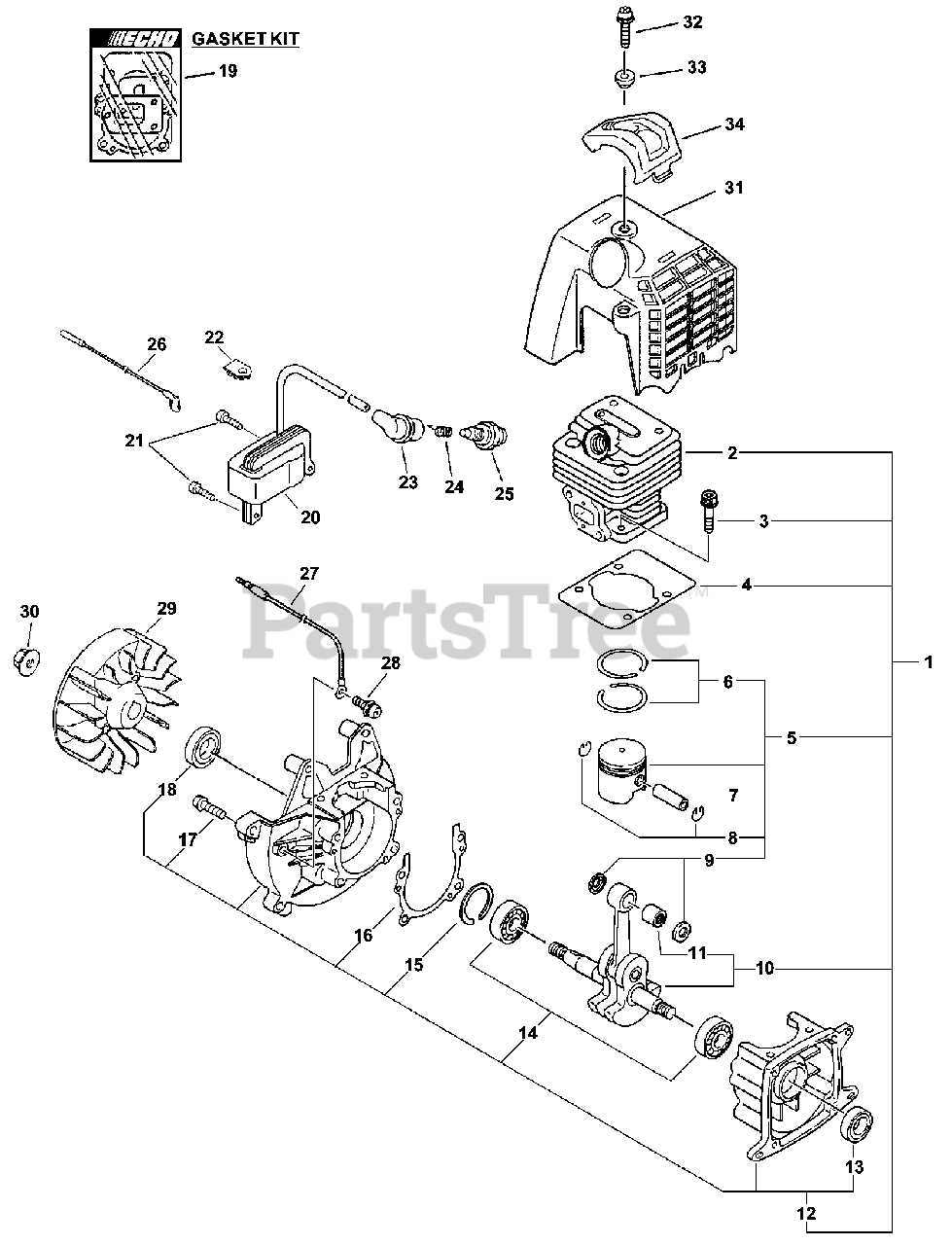

PAS-231 - Echo PAS Series Powerhead (SN: 02001001 - 02999999) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

PAS Series Powerhead

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1045

SHORT BLOCK

Note: INCLUDES ITEMS 2-18

$226.99

$

Usually ships in 2-4 days

0

2

Echo A130000074

CYLINDER
(Superseded to A130000075)

$188.99

$

Usually ships in 2-4 days

0

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

4

Echo V100000010

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Included In GASKET KIT

$

$

Not available

5

Echo P021000930

PISTON KIT

Note: Includes ITEMS 6-9

$72.99

$

Usually ships in 2-4 days

0

6

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo A011000042

CRANKSHAFT ASSY

Note: Includes ITEM 11

$212.99

$

Usually ships in 2-4 days

0

11

Echo V553000010

BEARING, NEEDLE 8

$11.99

$

In Stock, only 2 left!

0

12

Echo P021000940

CRANKCASE KIT
(Superseded to P021000941)

Note: Includes ITEMS 13-18

$251.99

$

Usually ships in 2-4 days

0

13

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

14

Echo 90080036001

BEARING, BALL 6001

$11.99

$

In Stock, Qty 7

0

15

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

16

Echo 10024255930

GASKET, CRANKCASE

Note: Included In GASKET KIT

$4.49

$

In Stock, only 2 left!

0

17

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10021228230

SEAL, OIL 12

$4.99

$

In Stock, only 2 left!

0

19

Echo P021002600

GASKET KIT

$29.99

$

Usually ships in 2-4 days

0

20

Echo A411000010

COIL, IGNITION

$83.99

$

In Stock, only 1 left!

0

21

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

22

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

23

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

24

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

25

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

26

Echo 16201056430

LEAD - IGNITION 145 MM

$7.99

$

In Stock, only 2 left!

0

27

Echo 16201452930

LEAD - GROUND

$5.99

$

In Stock, only 2 left!

0

28

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

29

Echo A409000020

FLYWHEEL

$81.99

$

Usually ships in 2-4 days

0

30

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, Qty 5

0

31

Echo A160000040

COVER, ENGINE - GRAY
(Superseded to A160000041)

$16.99

$

In Stock, only 1 left!

0

32

Echo 9111005016

BOLT 5×16

$0.99

$

In Stock, Qty 20+

0

33

Echo V353000020

COLLAR 5

$1.99

$

In Stock, Qty 20+

0

34

Echo A162000000

GUARD, TOP

$12.99

$

In Stock, only 2 left!

0
