PAS-231 - Echo PAS Series Powerhead (SN: 02001001 - 02999999) Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

PAS Series Powerhead

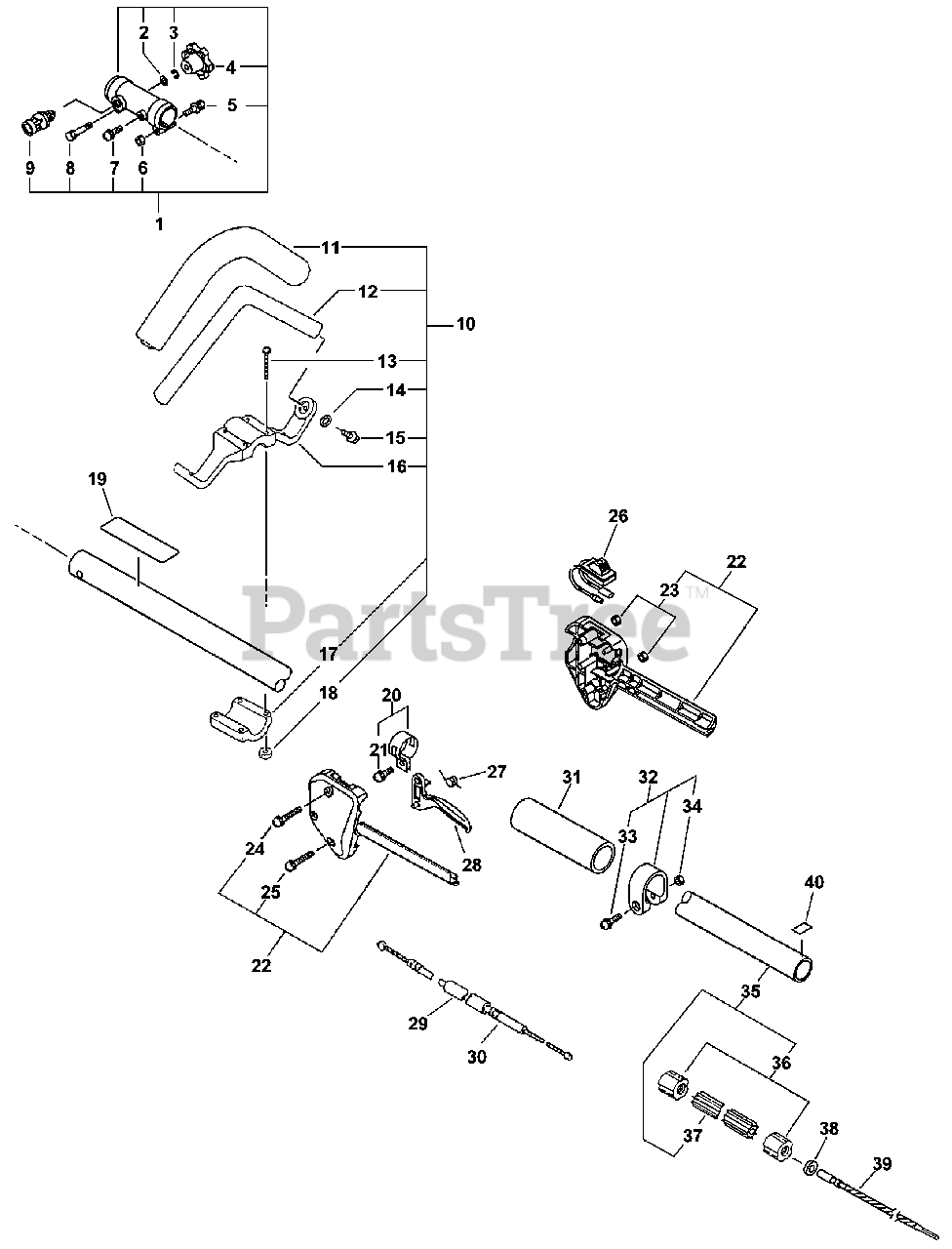

Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

  • Title

1

Echo 61060156732

COUPLER ASSY
(Superseded to Discontinued)

Note: Includes ITEM 2-9

$

$

Not available

2

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

4

Echo V299000100

KNOB
(Superseded to Discontinued)

$

$

Not available

5

Echo 90014205030

BOLT 5×30

$0.99

$

In Stock, only 1 left!

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

8

Echo 900162-05040

BOLT 5×40

$1.99

$

In Stock, only 1 left!

0

9

Echo 17830256630

LATCH ASSY

$16.99

$

In Stock, only 2 left!

0

10

Echo P021000021

HANDLE ASSY, FRONT
(Superseded to P021012390)

Note: Includes ITEMS 11-18

$16.99

$

In Stock, only 2 left!

0

11

Echo 35121666230

GRIP, HANDLE

$5.49

$

In Stock, Qty 9

0

12

Echo 35120566230

HANDLE, SUPPORT

$5.49

$

Usually ships in 2-4 days

0

13

Echo 900162-05040

BOLT 5×40

$1.99

$

In Stock, only 1 left!

0

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 35123266230

BRACKET, HANDLE

$6.49

$

Usually ships in 2-4 days

0

17

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 3 left!

0

18

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

19

Echo 89022809560

LABEL, CAUTION

$0.99

$

In Stock, only 2 left!

0

20

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 21

$11.99

$

In Stock, only 2 left!

0

21

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

22

Echo 17800352130

HANDLE KIT, CONTROL

Note: INCLUDES ITEMS 23-25

$5.99

$

In Stock, only 3 left!

0

23

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

24

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

25

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

26

Echo A440000280

SWITCH, ON-OFF

$14.99

$

In Stock, only 2 left!

0

27

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

28

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

29

Echo V475000850

TUBE, FLEXIBLE

$1.49

$

In Stock, only 3 left!

0

30

Echo 17800156530

CABLE, THROTTLE

$23.99

$

In Stock, Qty 14

0

31

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

32

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 33-34

$11.99

$

In Stock, only 2 left!

0

33

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

34

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

35

Echo 61020656730

MAIN PIPE ASSY
(Superseded to C050001240)

Note: INCLUDES ITEMS 36-37

$30.99

$

In Stock, Qty 8

0

36

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

37

Echo C507000230

LINER - FLEXIBLE

$19.99

$

In Stock, only 2 left!

0

38

Echo 10025156630

CUSHION

$0.99

$

In Stock, Qty 13

0

39

Echo 61001355630

DRIVESHAFT - FLEXIBLE

$30.99

$

In Stock, only 1 left!

0

40

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0
