PAS-2601 - Echo PAS Series Powerhead (Type 1E) Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

PAS Series Powerhead (Type 1E)

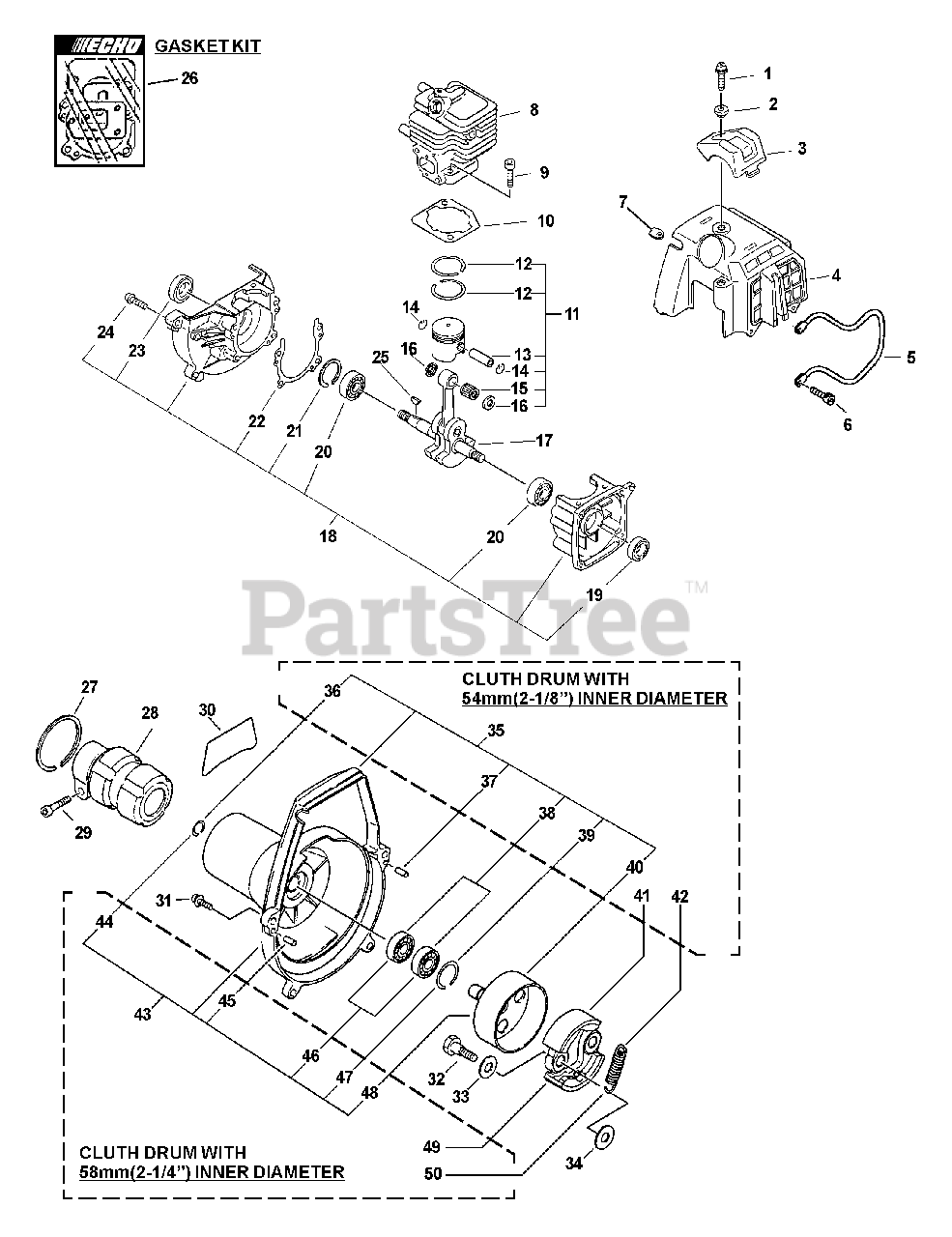

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title

Echo SB1039

SHORT BLOCK -- SB1039
(Superseded to Discontinued)

Note: INCLUDES ITEMS 8-24; OPTIONAL ENGINE REPOWER

$

$

Not available

1

Echo 90023905022

SCREW - 5X22

$0.99

$

Usually ships in 2-4 days

0

2

Echo V353000020

COLLAR - 5

$1.99

$

In Stock, only 3 left!

0

3

Echo 15990555930

GUARD - TOP

$11.99

$

Usually ships in 2-4 days

0

4

Echo 10150657730

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10026857730

GUARD, ENGINE

Note: OPTIONAL

$21.99

$

Usually ships in 2-4 days

0

6

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

7

Echo 10153828230

PLUG

$1.99

$

Usually ships in 2-4 days

0

8

Echo 10103456532

CYLINDER

$201.99

$

Usually ships in 2-4 days

0

9

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 19

0

10

Echo 10101056030

GASKET, CYLINDER

$5.49

$

Usually ships in 2-4 days

0

11

Echo P021000370

PISTON KIT
(Superseded to P021000371)

Note: Includes ITEMS 12-16

$95.99

$

Usually ships in 2-4 days

0

12

Echo A101000010

RING, PISTON

$8.99

$

In Stock, only 2 left!

0

13

Echo 10001356030

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

14

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

15

Echo 10001255930

BEARING, NEEDLE
(Superseded to V553000020)

$11.99

$

Usually ships in 2-4 days

0

16

Echo 10001455930

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

17

------------------

CRANKSHAFT ASSY

$

$

Not available

18

------------------

CRANKCASE KIT

$

$

Not available

19

Echo 10021305530

SEAL, OIL

$6.99

$

In Stock, Qty 20+

0

20

Echo 90080036001

BEARING, BALL - 6001C3

$10.99

$

In Stock, only 3 left!

0

21

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

22

------------------

GASKET, CRANKCASE

$

$

Not available

23

Echo 10021228230

SEAL, OIL - 12

$4.99

$

In Stock, Qty 8

0

24

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

25

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 15

0

26

Echo 88900057730

GASKET KIT

$22.99

$

Usually ships in 2-4 days

0

27

Echo 90070200042

RING, RETAINING - 42

$1.99

$

In Stock, Qty 20+

0

28

Echo 61092255931

CLAMP, MAIN PIPE

$37.99

$

In Stock, only 1 left!

0

29

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

30

Echo X503000620

LABEL - MODEL PAS-2601

$2.99

$

Usually ships in 2-4 days

0

31

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 8

0

32

Echo 17504656030

BOLT, CLUTCH

$5.49

$

In Stock, only 3 left!

0

33

Echo 17504956030

WASHER - SPRING

$1.99

$

In Stock, Qty 20+

0

34

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, only 1 left!

0

35

Echo P021001250

FAN CASE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 36-40; CLUTCH DRUM WITH 54mm(2-1/8") INNER DIAMETER

$

$

Not available

36

Echo 90070100012

RING, RETAINING - 12

Note: CLUTCH DRUM WITH 54mm(2-1/8") INNER DIAMETER

$0.99

$

In Stock, Qty 19

0

37

Echo V622000020

PIN - LOCATING

Note: CLUTCH DRUM WITH 54mm(2-1/8") INNER DIAMETER

$0.99

$

In Stock, Qty 7

0

38

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

Note: CLUTCH DRUM WITH 54mm(2-1/8") INNER DIAMETER

$6.99

$

In Stock, Qty 20+

0

39

Echo 90070200028

RING, RETAINING - 28

Note: CLUTCH DRUM WITH 54mm(2-1/8") INNER DIAMETER

$1.99

$

In Stock, Qty 20+

0

40

Echo 17500551730

DRUM, CLUTCH

Note: CLUTCH DRUM WITH 54mm(2-1/8") INNER DIAMETER

$17.99

$

Usually ships in 2-4 days

0

41

Echo 17500955930

SHOE, CLUTCH
(Superseded to 17500955931)

Note: CLUTCH DRUM WITH 54mm(2-1/8") INNER DIAMETER

$23.99

$

In Stock, only 2 left!

0

42

Echo 17501805533

SPRING, CLUTCH

Note: CLUTCH DRUM WITH 54mm(2-1/8") INNER DIAMETER

$2.49

$

In Stock, only 2 left!

0

43

Echo P021007130

FAN CASE ASSY
(Superseded to P021007131)

Note: INCLUDES ITEMS 44-48; CLUTCH DRUM WITH 58mm(2-1/4") INNER DIAMETER

$111.99

$

Usually ships in 2-4 days

0

44

Echo 90070100012

RING, RETAINING - 12

Note: CLUTCH DRUM WITH 58mm(2-1/4") INNER DIAMETER

$0.99

$

In Stock, Qty 19

0

45

Echo V622000020

PIN - LOCATING

Note: CLUTCH DRUM WITH 58mm(2-1/4") INNER DIAMETER

$0.99

$

In Stock, Qty 7

0

46

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

Note: CLUTCH DRUM WITH 58mm(2-1/4") INNER DIAMETER

$6.99

$

In Stock, Qty 20+

0

47

Echo 90070200028

RING, RETAINING - 28

Note: CLUTCH DRUM WITH 58mm(2-1/4") INNER DIAMETER

$1.99

$

In Stock, Qty 20+

0

48

Echo A556000030

DRUM, CLUTCH

Note: CLUTCH DRUM WITH 58mm(2-1/4") INNER DIAMETER

$53.99

$

In Stock, only 2 left!

0

49

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

Note: CLUTCH DRUM WITH 58mm(2-1/4") INNER DIAMETER

$16.99

$

In Stock, Qty 10

0

50

Echo V451000090

SPRING, CLUTCH

Note: CLUTCH DRUM WITH 58mm(2-1/4") INNER DIAMETER

$2.49

$

In Stock, Qty 14

0
