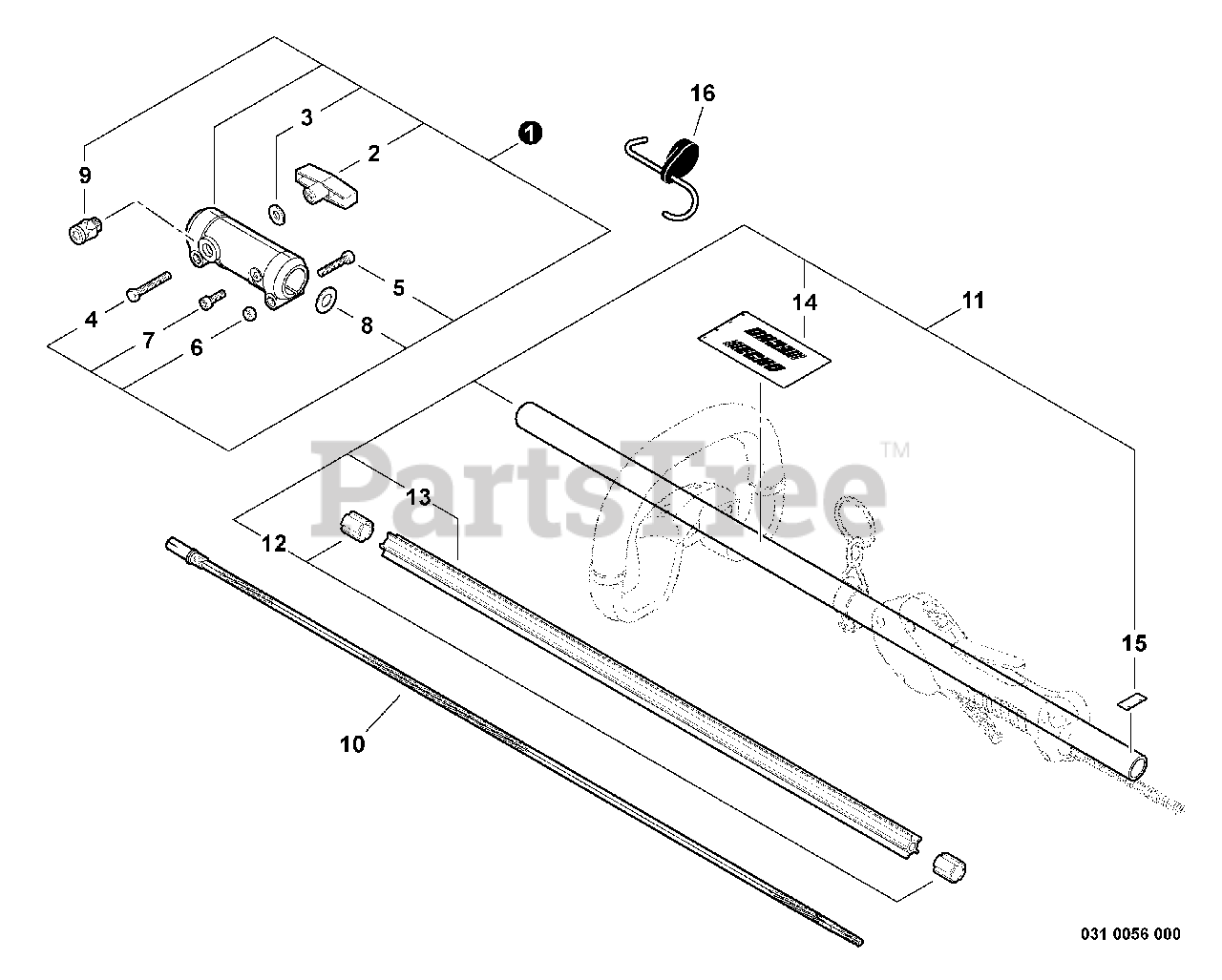

PAS-265 - Echo PAS Series Powerhead (SN: S86312001001 - S86312999999) Main Pipe Assembly, Driveshaft, Coupler Parts Diagram

PAS Series Powerhead

Main Pipe Assembly, Driveshaft, Coupler Parts Diagram

  • Title

1

Echo P021004350

COUPLER ASSY
(Superseded to C510000180)

Note: INCLUDES ITEMS 2-9

$47.99

$

In Stock, Qty 20+

0

2

Echo V299000160

WINGNUT
(Superseded to V299000660)

$4.99

$

In Stock, Qty 20+

0

3

Echo V304000040

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

4

Echo 9108506040

BOLT - 6X40

$0.99

$

In Stock, Qty 17

0

5

Echo 90010506025

SCREW - 6X25

$1.49

$

In Stock, Qty 18

0

6

Echo 90051400006

NUT - 6

$0.99

$

In Stock, Qty 5

0

7

Echo 90010506010

SCREW - 6X10

$1.49

$

In Stock, only 3 left!

0

8

Echo V312000010

WASHER - 18

$0.99

$

In Stock, Qty 20+

0

9

Echo 17830256630

LATCH ASSY

$16.99

$

In Stock, only 2 left!

0

10

Echo C506000042

DRIVESHAFT - FLEXIBLE

$16.99

$

Usually ships in 2-4 days

0

11

Echo C050001100

MAIN PIPE ASSY

Note: Includes ITEMS 12-13

$31.99

$

In Stock, only 1 left!

0

12

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

13

Echo C507000230

LINER - FLEXIBLE

$19.99

$

In Stock, only 1 left!

0

14

Echo X505001930

LABEL - HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

0

15

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

16

Echo 99944200631

PAS ATTACHMENT HANGER

$4.49

$

In Stock, Qty 20+

0
