PB-1000 - Echo Handheld Blower (SN: 066001 - 098000) Fan, Housings Parts Diagram

Handheld blower powered by a 21.2 cc air-cooled two-stroke single-cylinder gasoline engine. Compact 325 x 220 x 330 mm, 3.3 kg dry weight.

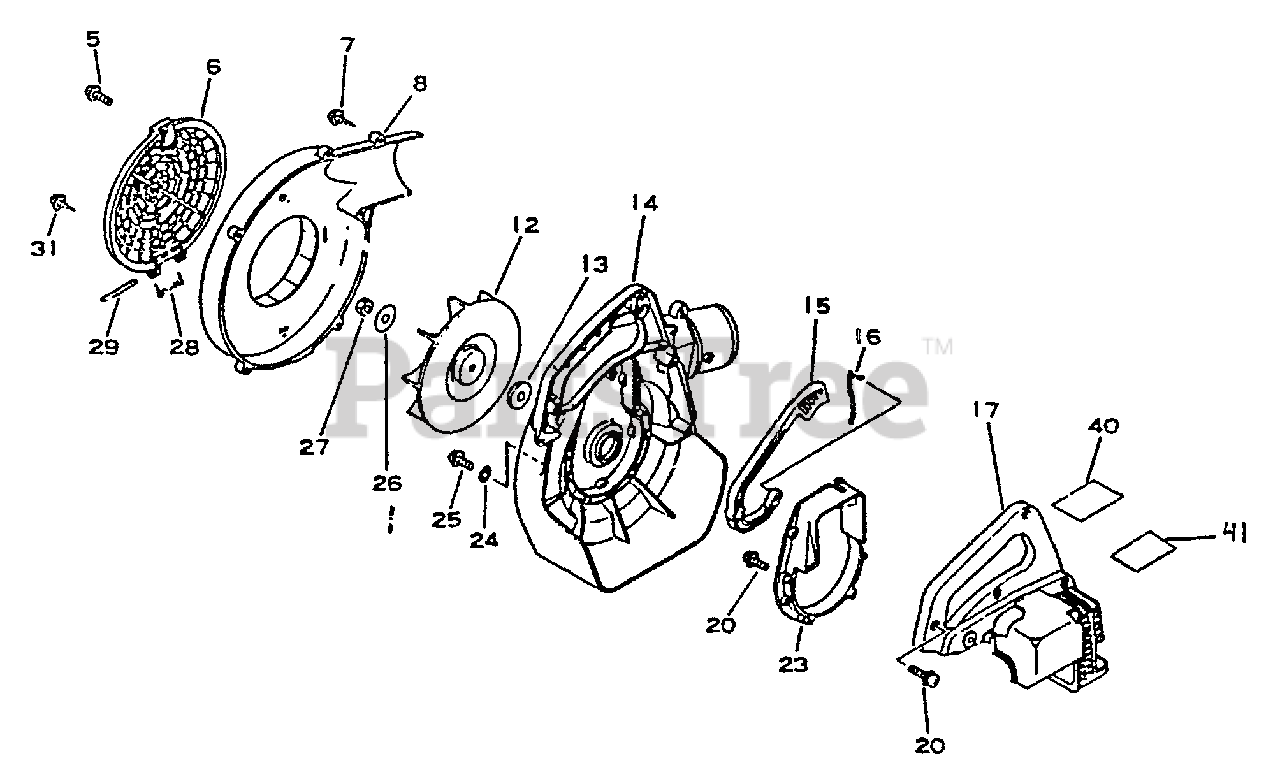

Fan, Housings Parts Diagram

  • Title

5

Echo 90023805018

SCREW 5×18

$0.99

$

In Stock, only 4 left!

0

6

Echo 20012405060

SHIELD, DEBRIS
(Superseded to 20012405061)

$24.99

$

Usually ships in 2-4 days

0

7

Echo 90025205020

SCREW 5×20

$0.99

$

Usually ships in 2-4 days

0

8

Echo 20010505060

COVER, FAN - LEFT
(Superseded to 20010506360)

$

$

Not available

12

Echo 20001005061

FAN
(Superseded to 20001006361)

$19.99

$

In Stock, only 2 left!

0

13

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

14

Echo 20011005060

COVER, FAN - RIGHT
(Superseded to 20011006360)

$

$

Not available

15

Echo 17801005060

TRIGGER, THROTTLE
(Superseded to 17801006360)

$5.99

$

Usually ships in 2-4 days

0

16

Echo 17801105060

ROD, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

17

Echo 10400805060

COVER, ENGINE
(Superseded to 10400806360)

$

$

Not available

20

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

23

Echo 10493005060

BRACKET, ENGINE
(Superseded to 10493005061)

$37.99

$

Usually ships in 2-4 days

0

24

Echo 10403205060

WASHER

$1.49

$

Usually ships in 2-4 days

0

25

Echo 900238-04022

SCREW 4×22

$0.99

$

In Stock, only 2 left!

0

26

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

27

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

28

Echo 20015205060

SPRING, COIL

$3.99

$

In Stock, only 1 left!

0

29

Echo 20015005060

PIN, INTAKE COVER

$3.49

$

Usually ships in 2-4 days

0

31

Echo 90025205020

SCREW 5×20

$0.99

$

Usually ships in 2-4 days

0

40

Echo 89011205060

LABEL - MODEL
(Superseded to 89011806360)

$1.99

$

Usually ships in 2-4 days

0

41

Echo 89019405060

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available
