PB-1000 - Echo Handheld Blower (SN: 242732 - 999999) Carburetor Parts Diagram

Handheld blower powered by a 21.2 cc air-cooled two-stroke single-cylinder gasoline engine. Compact 325 x 220 x 330 mm, 3.3 kg dry weight.

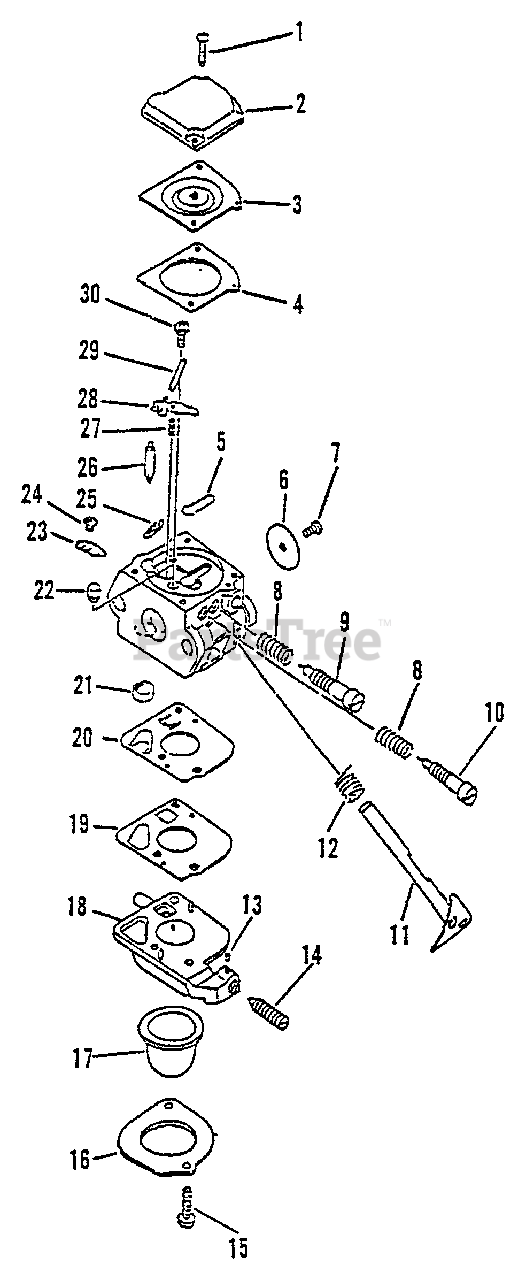

Carburetor Parts Diagram

  • Title

Echo 12520006861

CARBURETOR - C1U-K26A
(Superseded to 12520006862)

Note: Includes ITEMS 1-30

$

$

Not available

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Included in Repair Kit P/N 12530042030 & Gasket/Diaphragm Kit P/N 12530342030

$

$

Not available

4

GASKET, METERING

Note: Included in Repair Kit P/N 12530042030 & Gasket/Diaphragm Kit P/N 12530342030

$

$

Not available

5

PLUG, WELCH

Note: Included in Repair Kit P/N 12530042030

$

$

Not available

6

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

7

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

8

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12532007260

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

10

Echo 12531851330

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 12531705060

SHAFT, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

12

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

13

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12533406860

SCREW

$4.99

$

Usually ships in 2-4 days

0

15

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

16

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

17

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

18

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

------------------

GASKET, PUMP

Note: Included in Repair Kit P/N 12530042030 & Gasket/Diaphragm Kit P/N 12530342030

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included in Repair Kit P/N 12530042030 & Gasket/Diaphragm Kit P/N 12530342030

$

$

Not available

21

STRAINER

Note: Included in Repair Kit P/N 12530042030

$

$

Not available

22

Echo 12537606360

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

23

Echo 12535005060

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

25

Echo 125327-13930

CLIP

$0.99

$

In Stock, only 3 left!

0

26

VALVE, NEEDLE

Note: Included in Repair Kit P/N 12530042030

$

$

Not available

27

SPRING

Note: Included in Repair Kit P/N 12530042030

$

$

Not available

28

LEVER, METERING

Note: Included in Repair Kit P/N 12530042030

$

$

Not available

29

PIN

Note: Included in Repair Kit P/N 12530042030

$

$

Not available

30

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

Echo 12530042030

REBUILD KIT

$20.99

$

In Stock, Qty 5

0

Echo 12530342030

GASKET / DIAPHRAGM KIT

$16.99

$

In Stock, only 2 left!

0
