PB-1010 - Echo Handheld Blower (SN: 066001 - 098000) Engine, Crankcase Parts Diagram

Handheld blower with 325 mm length, 225 mm width, 330 mm height and 3.5 kg dry weight. Powered by a 21.2 cc, 32.2 mm bore, air-cooled single-cylinder, 2-stroke gasoline engine. Comes with Y-T, granule-spreader, Y-head and fan-head nozzles and a full gasket kit.

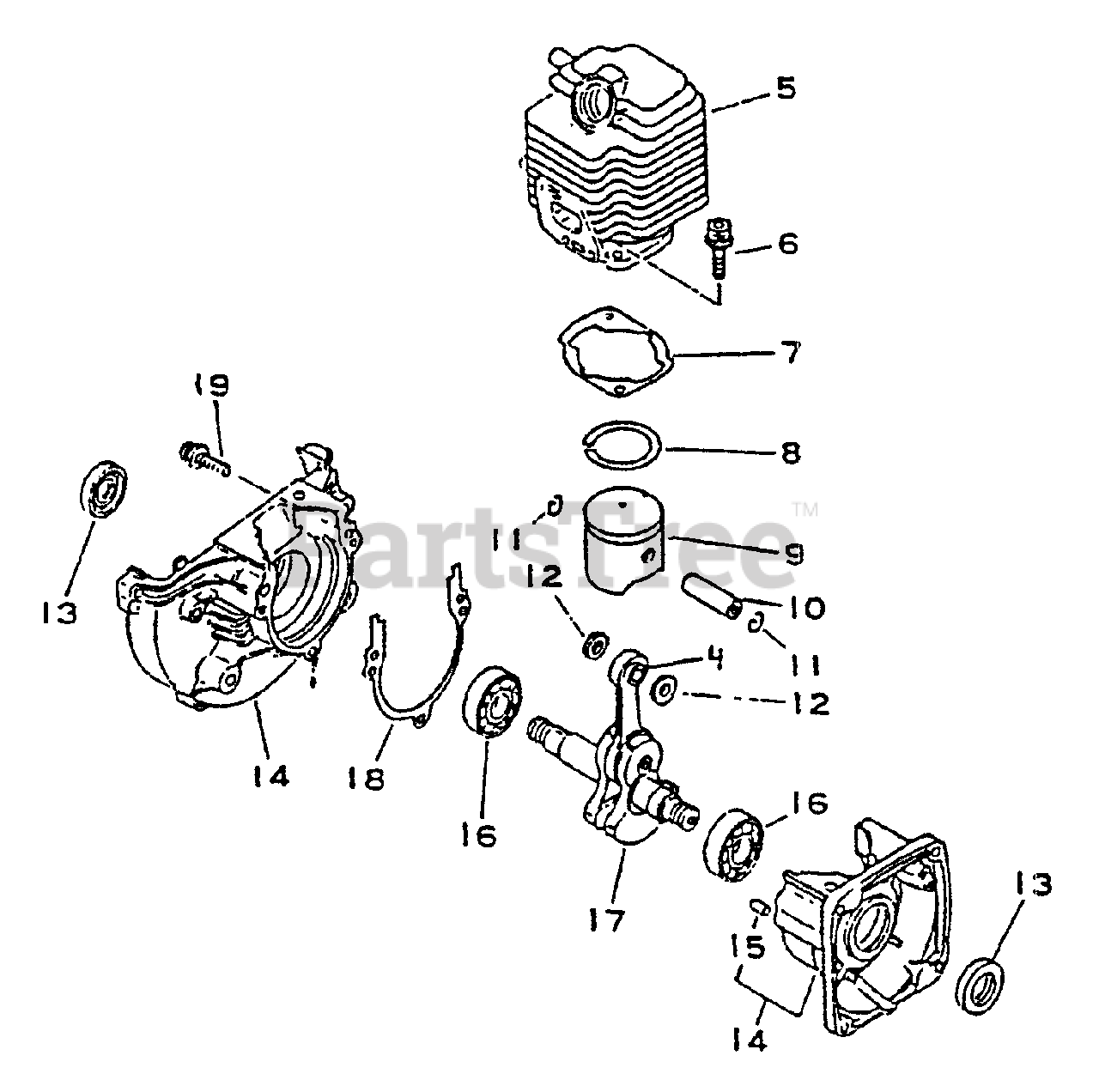

Engine, Crankcase Parts Diagram

  • Title

4

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

5

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

6

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

7

GASKET, CYLINDER

Note: Included in Gasket Kit, P/N 88900005061

$

$

Not available

8

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

9

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

10

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

11

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$157.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

17

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

Note: Includes ITEM 4

$186.99

$

Usually ships in 2-4 days

0

18

GASKET, CRANKCASE

$

$

Not available

19

Echo 90023805028

SCREW 5×28

Note: Included in Gasket Kit, P/N 88900005061

$0.99

$

Usually ships in 2-4 days

0

Echo 88900005061

GASKET KIT
(Superseded to 88900005062)

$41.99

$

In Stock, only 2 left!

0
