PB-1010 - Echo Handheld Blower (SN: 066001 - 098000) Engine, Crankcase Parts Diagram

Handheld Blower

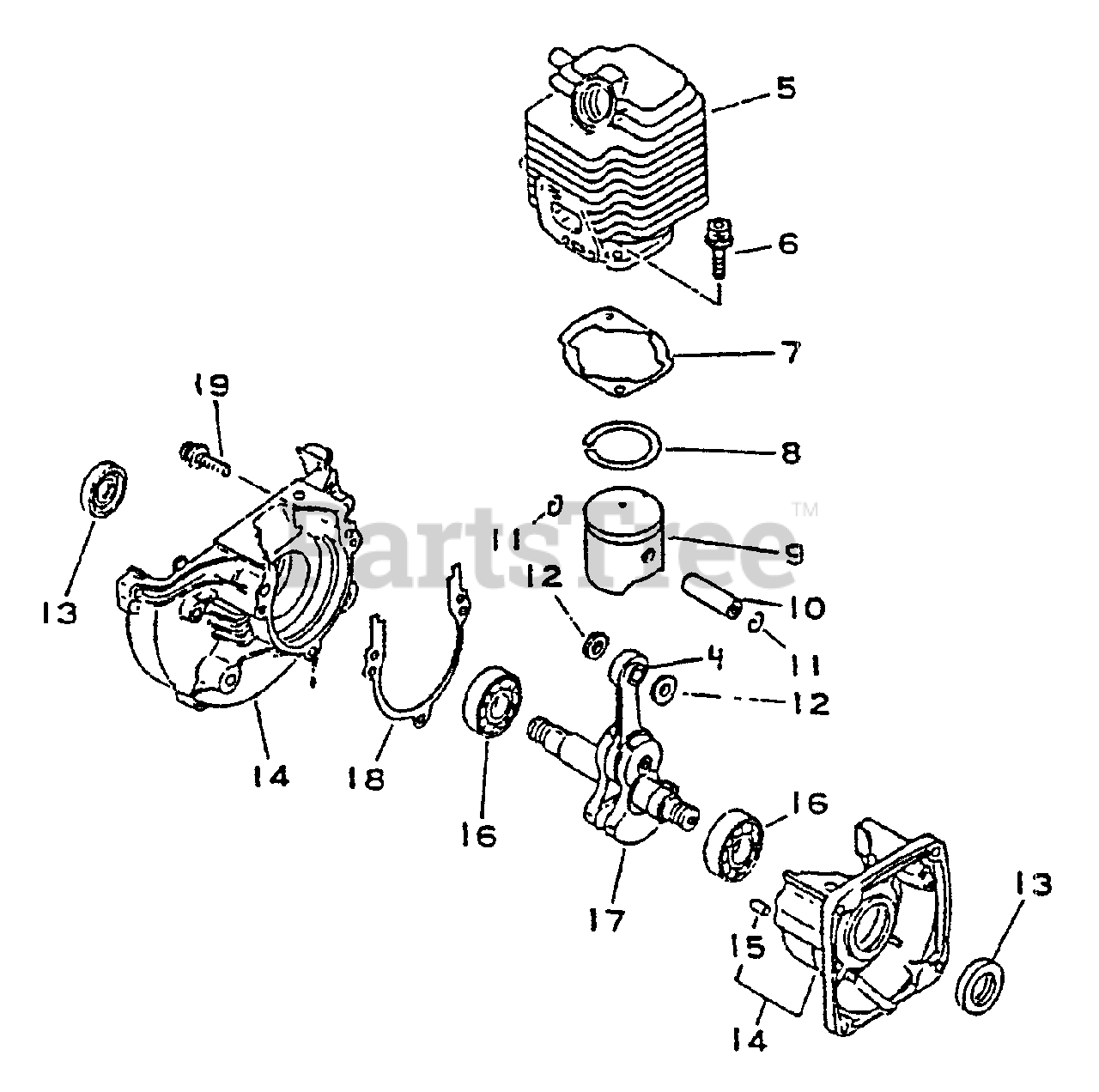

Engine, Crankcase Parts Diagram

  • Title

4

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

5

Echo 10101145230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

6

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

7

------------------

GASKET, CYLINDER

Note: Included in Gasket Kit, P/N 88900005061

$

$

Not available

8

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

9

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

10

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

12

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

13

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 7

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$157.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

16

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

17

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

Note: Includes ITEM 4

$186.99

$

Usually ships in 2-4 days

0

18

------------------

GASKET, CRANKCASE

$

$

Not available

19

Echo 90023805028

SCREW - 5X28

Note: Included in Gasket Kit, P/N 88900005061

$0.99

$

Usually ships in 2-4 days

0

Echo 88900005061

GASKET KIT
(Superseded to 88900005062)

$41.99

$

In Stock, only 2 left!

0
