PB-1010 - Echo Handheld Blower (SN: 066001 - 098000) Intake, Exhaust, Air Cleaner Parts Diagram

Handheld blower with 325 mm length, 225 mm width, 330 mm height and 3.5 kg dry weight. Powered by a 21.2 cc, 32.2 mm bore, air-cooled single-cylinder, 2-stroke gasoline engine. Comes with Y-T, granule-spreader, Y-head and fan-head nozzles and a full gasket kit.

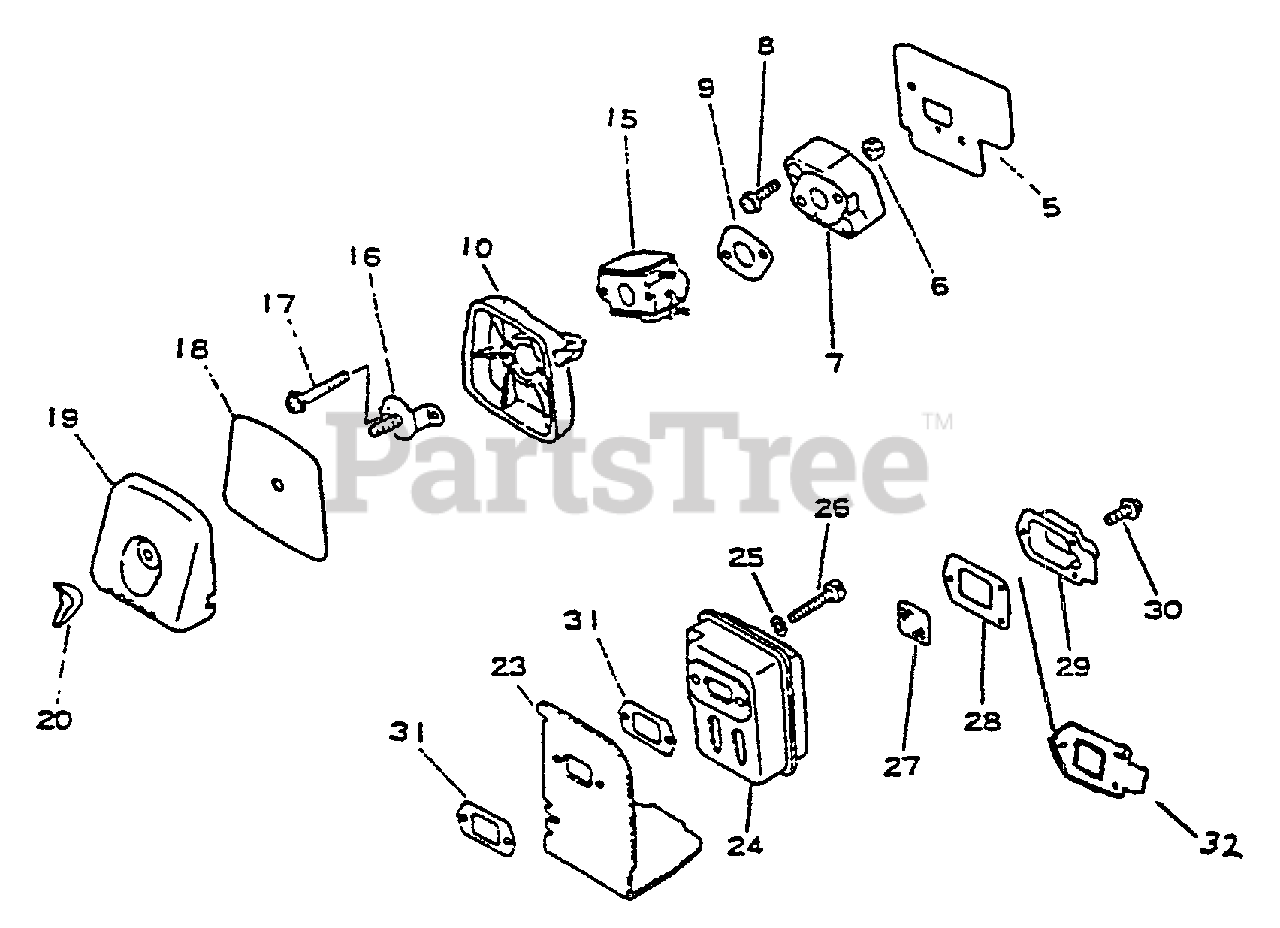

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo 13001005060

GASKET, INTAKE
(Superseded to 13001005061)

$

$

Not available

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 13001705060

INSULATOR, INTAKE
(Superseded to 13001705061)

$7.49

$

In Stock, only 2 left!

0

8

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

9

Echo 13001642030

GASKET, INTAKE
(Superseded to 13001642031)

$1.49

$

In Stock, Qty 20+

0

10

Echo 13030705660

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo 12520005060

CARBURETOR
(Superseded to 12520005061)

$

$

Not available

16

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

17

Echo 90024205064

SCREW 5×64

$1.49

$

In Stock, Qty 9

0

18

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 9

0

19

Echo 13031305060

COVER, AIR FILTER

$7.49

$

Usually ships in 2-4 days

0

20

Echo 13041504560

WINGNUT - 5
(Superseded to 90052800005)

$1.99

$

In Stock, Qty 5

0

23

Echo 14587105760

COVER, MUFFLER

Note: Included in Muffler Ass'y, 14580005061

$13.99

$

Usually ships in 2-4 days

0

24

Echo 14581044330

MUFFLER

Note: Included in Muffler Ass'y, 14580005061

$43.99

$

Usually ships in 2-4 days

0

25

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

26

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

27

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: Included in Muffler Ass'y, 14580005061

$2.49

$

In Stock, Qty 20+

0

28

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: Included in Muffler Ass'y, 14580005061

$2.99

$

In Stock, only 2 left!

0

29

Echo 14587605060

GUIDE, EXHAUST - INNER
(Superseded to 14587605061)

Note: Included in Muffler Ass'y, 14580005061. Revised 04/93

$3.99

$

In Stock, only 1 left!

0

30

Echo 900242-04010

SCREW 4×10

Note: Included in Muffler Ass'y, 14580005061

$0.99

$

In Stock, Qty 20+

0

31

Echo V104000160

GASKET, EXHAUST

Note: Included in Muffler Ass'y, 14580005061

$2.49

$

In Stock, Qty 20+

0

32

Echo 14587642030

GUIDE, EXHAUST

Note: Included in Muffler Ass'y, 14580005061. Revised 04/93

$4.99

$

In Stock, only 3 left!

0

Echo 14580005061

MUFFLER ASSY
(Superseded to 14580005062)

$100.99

$

Usually ships in 2-4 days

0
