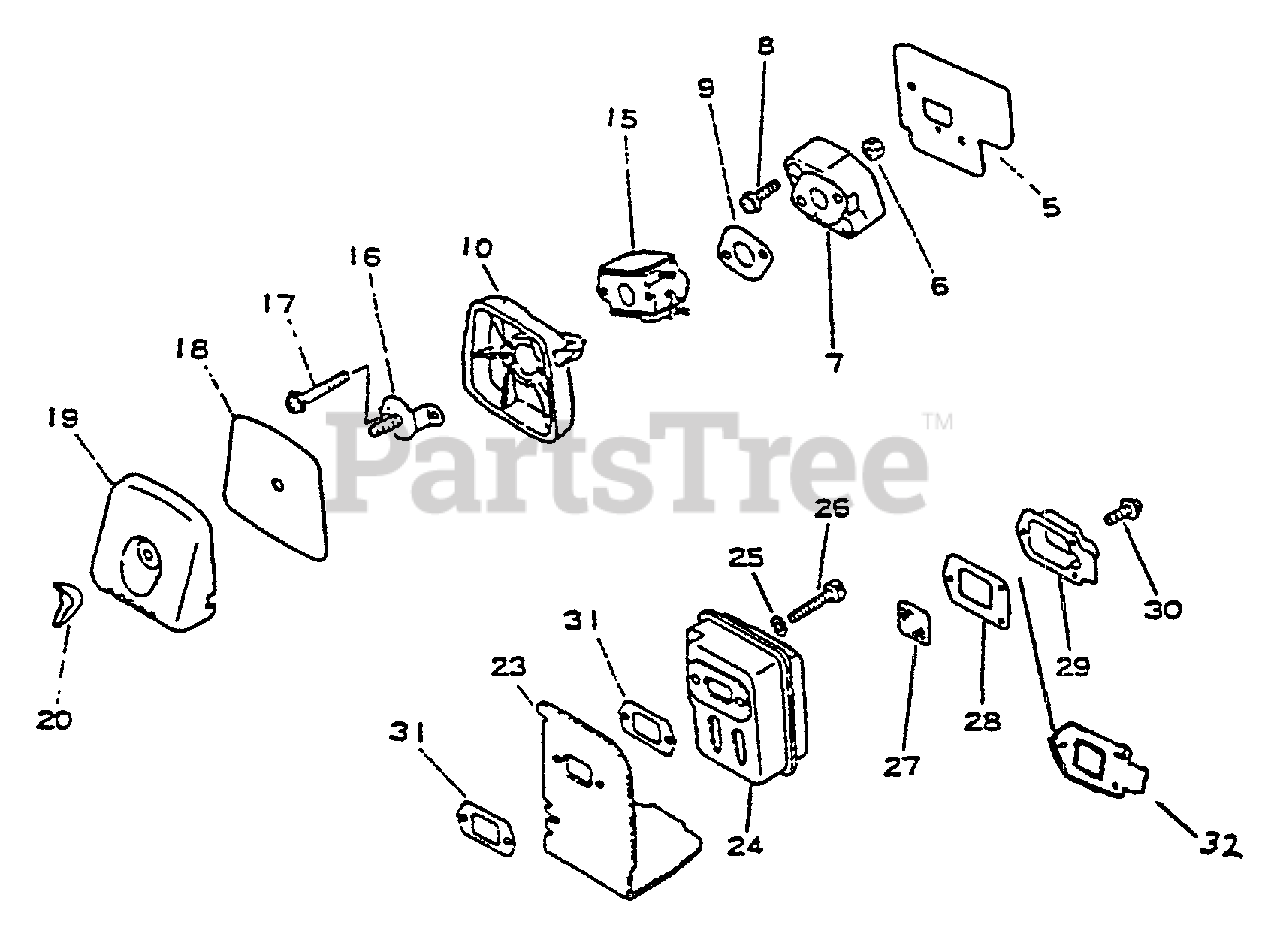

PB-1010 - Echo Handheld Blower (SN: 066001 - 098000) Intake, Exhaust, Air Cleaner Parts Diagram

Handheld Blower

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo 13001005060

GASKET, INTAKE
(Superseded to 13001005061)

$

$

Not available

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 13001705060

INSULATOR, INTAKE
(Superseded to 13001705061)

$6.99

$

In Stock, only 2 left!

0

8

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, only 4 left!

0

9

Echo 13001642030

GASKET, INTAKE
(Superseded to 13001642031)

$1.49

$

In Stock, Qty 20+

0

10

Echo 13030705660

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo 12520005060

CARBURETOR
(Superseded to 12520005061)

$

$

Not available

16

Echo 12901105060

PLATE, PREVENT

$6.49

$

In Stock, Qty 7

0

17

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

18

Echo 13031004560

FILTER, AIR

$5.49

$

In Stock, Qty 18

0

19

Echo 13031305060

COVER, AIR FILTER - BLACK

$6.99

$

Usually ships in 2-4 days

0

20

Echo 13041504560

WINGNUT - 5
(Superseded to 90052800005)

$1.49

$

In Stock, Qty 17

0

23

Echo 14587105760

SHIELD, EXHAUST

Note: Included in Muffler Ass'y, 14580005061

$12.99

$

Usually ships in 2-4 days

0

24

Echo 14581044330

MUFFLER

Note: Included in Muffler Ass'y, 14580005061

$40.99

$

Usually ships in 2-4 days

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

27

Echo 14586240630

SCREEN, SPARK ARRESTOR

Note: Included in Muffler Ass'y, 14580005061

$2.49

$

In Stock, Qty 20+

0

28

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: Included in Muffler Ass'y, 14580005061

$2.99

$

In Stock, Qty 10

0

29

Echo 14587605060

GUIDE, EXHAUST - INNER
(Superseded to 14587605061)

Note: Included in Muffler Ass'y, 14580005061. Revised 04/93

$3.99

$

In Stock, only 1 left!

0

30

Echo 90024204010

SCREW - 4X10

Note: Included in Muffler Ass'y, 14580005061

$0.99

$

In Stock, Qty 20+

0

31

Echo V104000160

GASKET, EXHAUST

Note: Included in Muffler Ass'y, 14580005061

$2.49

$

In Stock, Qty 5

0

32

Echo 14587642030

GASKET, EXHAUST - INNER

Note: Included in Muffler Ass'y, 14580005061. Revised 04/93

$4.49

$

In Stock, only 1 left!

0

Echo 14580005061

MUFFLER ASSY
(Superseded to 14580005062)

$93.99

$

In Stock, only 1 left!

0
