PB-1010 - Echo Handheld Blower (SN: 098001 - 122635) Fuel System Parts Diagram

Handheld blower with 325 mm length, 225 mm width, 330 mm height and 3.5 kg dry weight. Powered by a 21.2 cc, 32.2 mm bore, air-cooled single-cylinder, 2-stroke gasoline engine. Comes with Y-T, granule-spreader, Y-head and fan-head nozzles and a full gasket kit.

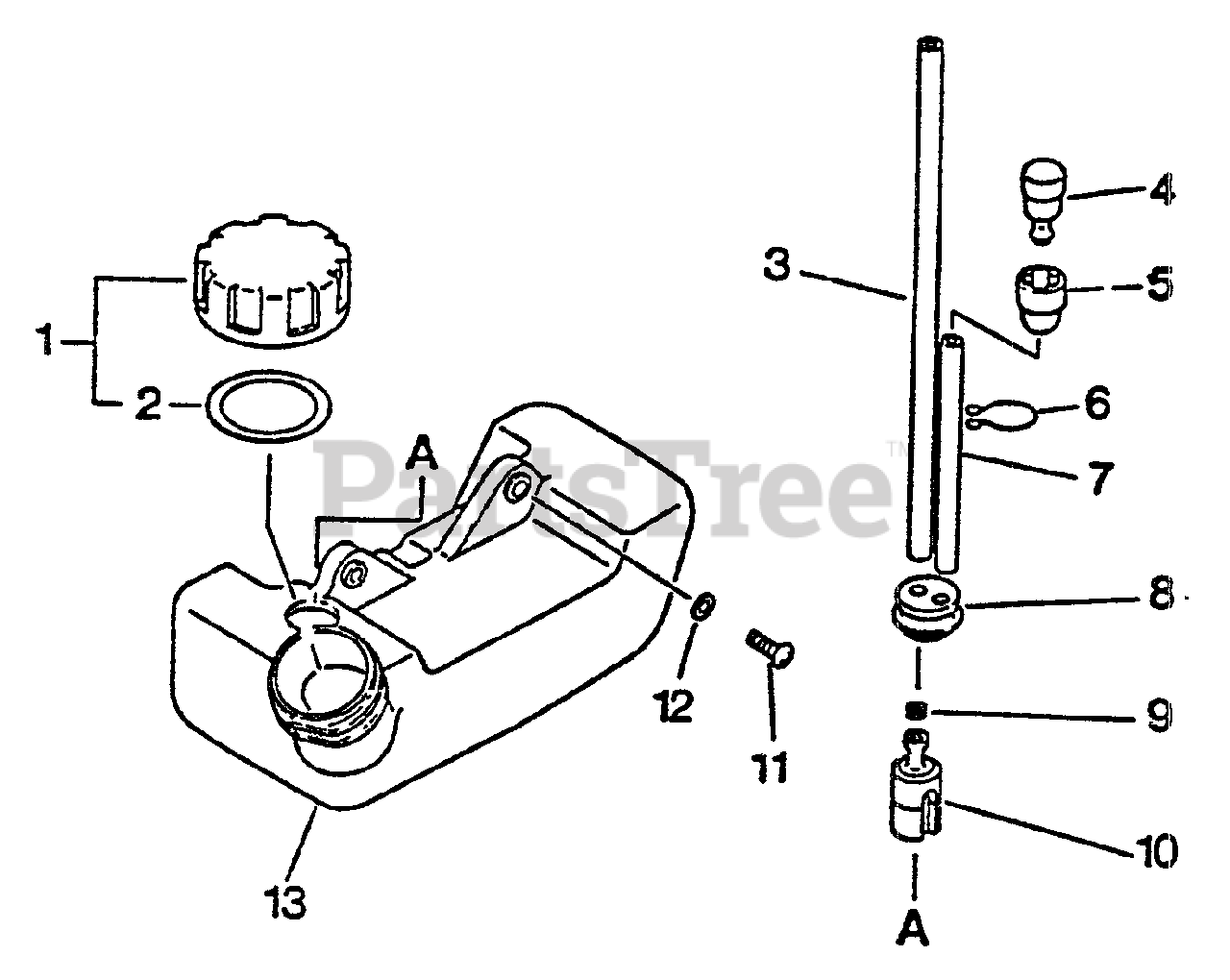

Fuel System Parts Diagram

  • Title

1

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 2

$5.49

$

In Stock, only 2 left!

0

2

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

3

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

4

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

5

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

6

Echo 13201305060

CLIP, TUBE

$0.99

$

Usually ships in 2-4 days

0

7

Echo 13271750430

PIPE, FUEL RETURN 3×6×70

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 7

0

8

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

9

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

10

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

11

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 13100506361

TANK, FUEL
(Superseded to 13100505760)

$

$

Not available
