PB-1010 - Echo Handheld Blower (SN: 219001 - 242731) Engine, Crankcase Parts Diagram

Handheld blower with 325 mm length, 225 mm width, 330 mm height and 3.5 kg dry weight. Powered by a 21.2 cc, 32.2 mm bore, air-cooled single-cylinder, 2-stroke gasoline engine. Comes with Y-T, granule-spreader, Y-head and fan-head nozzles and a full gasket kit.

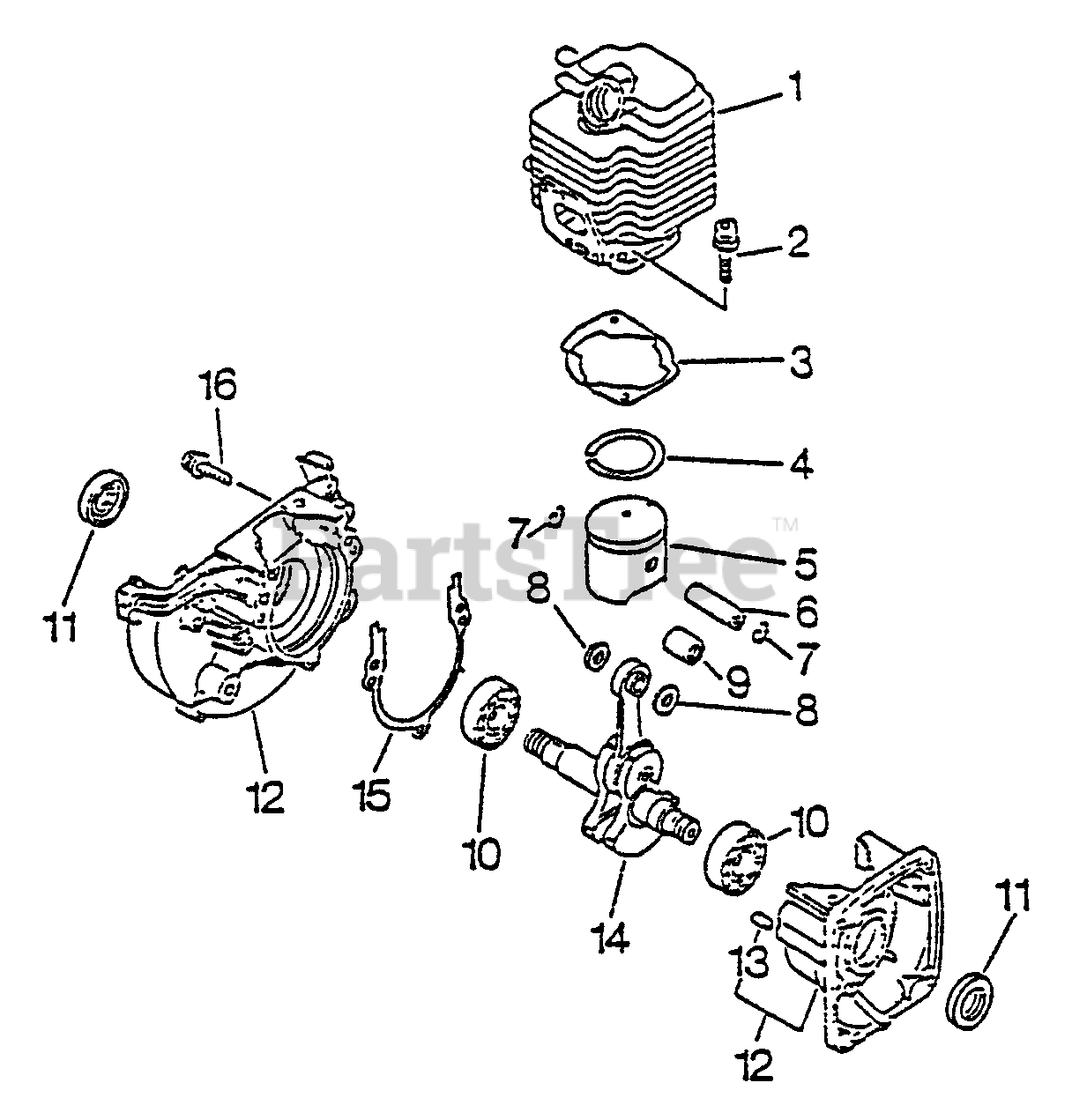

Engine, Crankcase Parts Diagram

  • Title

1

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Gasket Kit P/N 88900005062

$4.99

$

In Stock, Qty 6

0

4

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

5

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

10

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

11

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

12

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes ITEMS 13-15

$157.99

$

Usually ships in 2-4 days

0

13

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

14

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

$186.99

$

Usually ships in 2-4 days

0

15

GASKET, CRANKCASE

Note: Use Gasket Kit P/N 88900005062

$

$

Not available

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

Echo 88900005062

GASKET KIT
(Superseded to 88900005063)

$41.99

$

In Stock, only 2 left!

0
