PB-1010 - Echo Handheld Blower (SN: 219001 - 242731) Fuel System Parts Diagram

Handheld blower with 325 mm length, 225 mm width, 330 mm height and 3.5 kg dry weight. Powered by a 21.2 cc, 32.2 mm bore, air-cooled single-cylinder, 2-stroke gasoline engine. Comes with Y-T, granule-spreader, Y-head and fan-head nozzles and a full gasket kit.

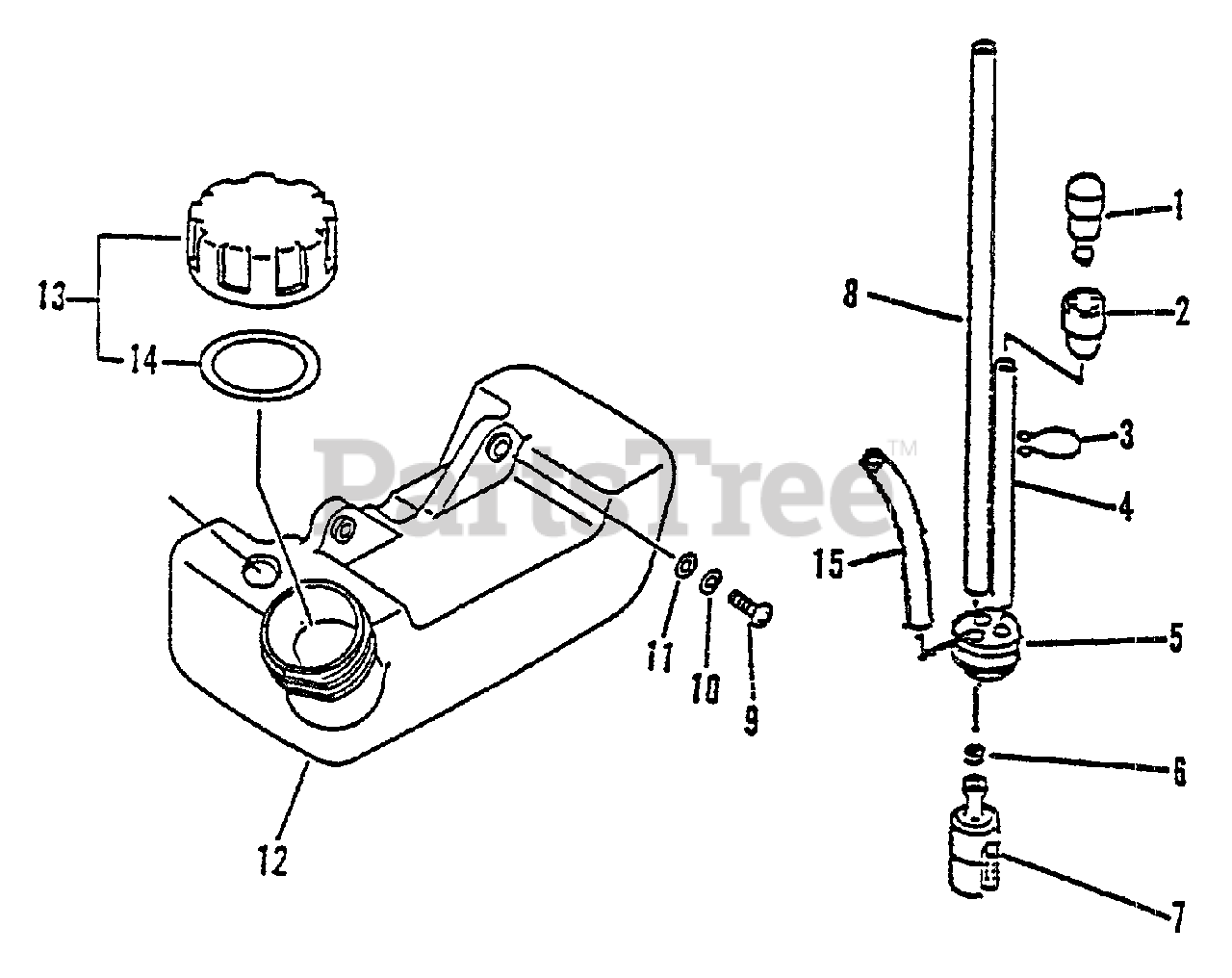

Fuel System Parts Diagram

  • Title

1

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

2

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

3

Echo 13201305060

CLIP, TUBE

$0.99

$

Usually ships in 2-4 days

0

4

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

5

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

6

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

7

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

8

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

9

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

11

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 13100505760

TANK, FUEL
(Superseded to 13100505761)

$

$

Not available

13

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 14

$5.49

$

In Stock, only 2 left!

0

14

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

15

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 9

0
