PB-1010 - Echo Handheld Blower (SN: 242732 - 999999) Ignition, Starter Parts Diagram

Handheld Blower

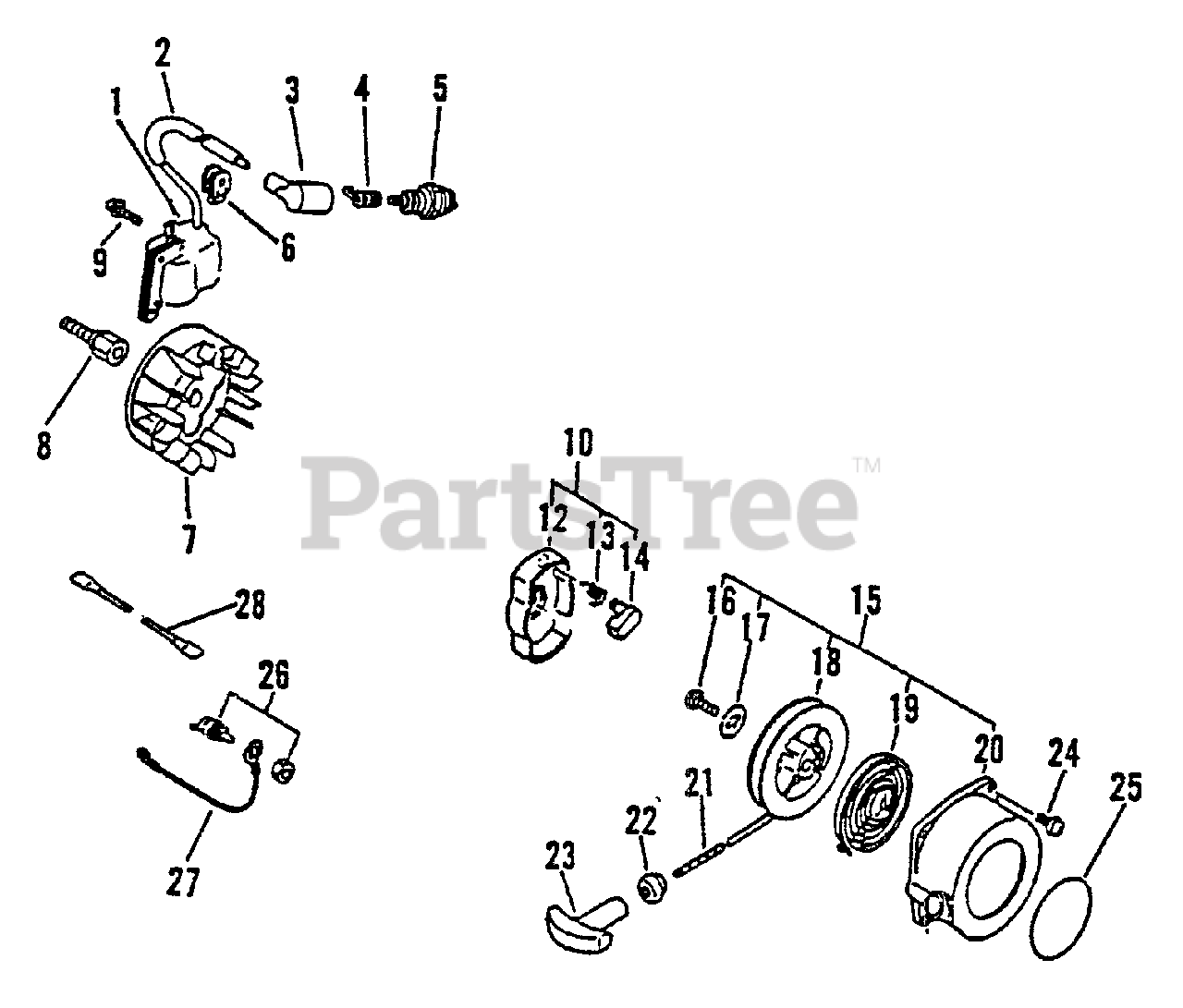

Ignition, Starter Parts Diagram

  • Title

1

Echo 15862606360

COIL, IGNITION
(Superseded to 15862606361)

$88.99

$

Usually ships in 2-4 days

0

2

Echo 15661105060

TUBE

$1.99

$

In Stock, Qty 5

0

3

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

5

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODEL

$3.99

$

In Stock, Qty 20+

0

6

Echo 15011205060

GROMMET

$1.49

$

Usually ships in 2-4 days

0

7

Echo 15880006360

FLYWHEEL
(Superseded to 15880020560)

$

$

Not available

8

Echo 20001105660

HUB, FAN
(Superseded to 20001105661)

$17.99

$

In Stock, only 1 left!

0

9

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, only 4 left!

0

10

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 12-14

$18.99

$

In Stock, Qty 7

0

12

------------------

CATCHER, PAWL

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

13

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

14

Echo 17721844330

PAWL, STARTER - BLACK

$3.99

$

In Stock, Qty 20+

0

15

Echo 17720042032

STARTER ASSY
(Superseded to 17720042033)

Note: Includes ITEMS 16-23

$54.99

$

In Stock, Qty 20+

0

16

Echo 17723640630

SCREW

$4.49

$

In Stock, Qty 14

0

17

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

18

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$9.99

$

In Stock, Qty 6

0

19

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

20

Echo 17723242032

CASE, STARTER

$23.99

$

In Stock, only 2 left!

0

21

------------------

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$

$

Not available

22

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

23

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 8

0

24

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 9

0

25

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 6

0

26

Echo 16340003460

IGNITION SWITCH ASSY

$9.49

$

In Stock, Qty 13

0

27

Echo 16201006860

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 16201006360

LEAD - GROUND
(Superseded to 16201006860)

$

$

Not available

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$33.99

$

In Stock, only 4 left!

0
