PB 145G42 (960420164-00) - Poulan Pro Lawn Tractor (2014-09) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

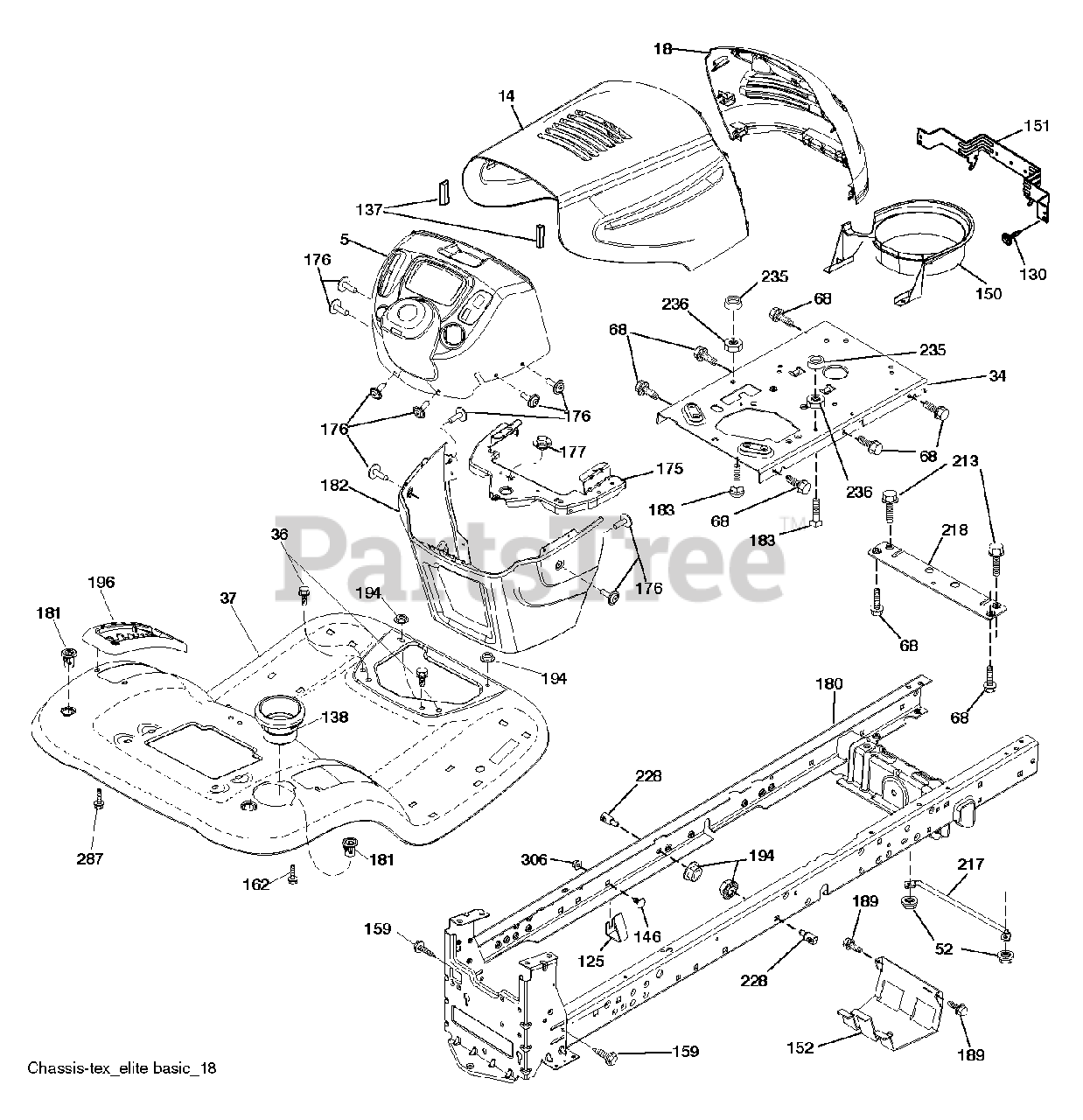

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Poulan 532411764

DASH.P/L.TEX.CBL.CL.N/CHK.BLAC

$47.99

$

Usually ships in 3-10 days

0

14

Poulan 532186580

HOOD.STL.ELITE.TOPLVRS.428

$155.99

$

Usually ships in 3-10 days

0

18

Poulan 532186718

(Superseded to 532186707)

Note: . 29 212

$

$

Not available

34

Poulan 580910801

PLATE.ENGINE.WELDED.CHASSIS

$77.99

$

Usually ships in 3-10 days

0

36

Poulan 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

37

Poulan 532420986

FENDER.TLT.FS.W/CPH.428

$341.99

$

Usually ships in 3-10 days

0

52

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

Poulan 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

125

Poulan 581684801

CLIP.FUEL.LINE

$3.49

$

Usually ships in 3-10 days

0

180

Poulan 532195457

CHASSIS
(Superseded to 579841501)

$

$

Not available

130

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

137

Poulan 532184921

BUMPER.HOOD.LARGE.1.75"

$5.99

$

In Stock, Qty 9

0

138

Poulan 532409730

CUPHOLDER.TL.TEX.BLACK

$8.49

$

Usually ships in 3-10 days

0

146

Poulan 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$3.99

$

Usually ships in 3-10 days

0

150

Poulan 532184461

DUCT.INTAKE.AIR.KAW

$

$

Not available

151

Poulan 532407807

BRACKET PIVOT

$35.99

$

Usually ships in 3-10 days

0

152

Poulan 532199535

SHIELD.BROWNING.W/TEX
(Superseded to 531169901)

$29.99

$

In Stock, Qty 7

0

159

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

162

Poulan 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.99

$

In Stock, Qty 14

0

175

Poulan 532193243

CROSSMEMBER.LT

$14.99

$

Usually ships in 3-10 days

0

176

Poulan 532400776

SCREW.#10-24X5/8.RN.QU

$4.99

$

In Stock, only 2 left!

0

177

Poulan 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 20+

0

180

Poulan 532195457

CHASSIS
(Superseded to 579841501)

$

$

Not available

181

Poulan 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$5.99

$

Usually ships in 3-10 days

0

182

Poulan 532193057

DASH.LOWER.LT.CCS

$89.99

$

Usually ships in 3-10 days

0

183

Poulan 874520520

BOLT.5/16-18X1-1/4 FULL THD
(Superseded to 595305701)

$4.99

$

In Stock, only 2 left!

0

189

Poulan 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

194

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

196

Poulan 532414581

(Superseded to 583351401)

$34.99

$

In Stock, only 2 left!

0

213

Poulan 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

217

Poulan 532409167

ROD.PIVOT.HOOD

$14.99

$

In Stock, only 2 left!

0

218

Poulan 532196395

X-PIECE.HOOD.STOP.NON/

$8.49

$

In Stock, only 2 left!

0

228

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Poulan 532406129

SPACER FENDER
(Superseded to 596564201)

$5.99

$

Usually ships in 3-10 days

0

236

Poulan 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

287

Poulan 817600406

SCREW 1/4X20

$3.99

$

Usually ships in 3-10 days

0

306

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

--

Poulan 532193935

PLUG.SWITCH.LIGHT.428
(Superseded to 532193934)

$9.99

$

Usually ships in 3-10 days

0
