PB 150-00 - Paramount Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

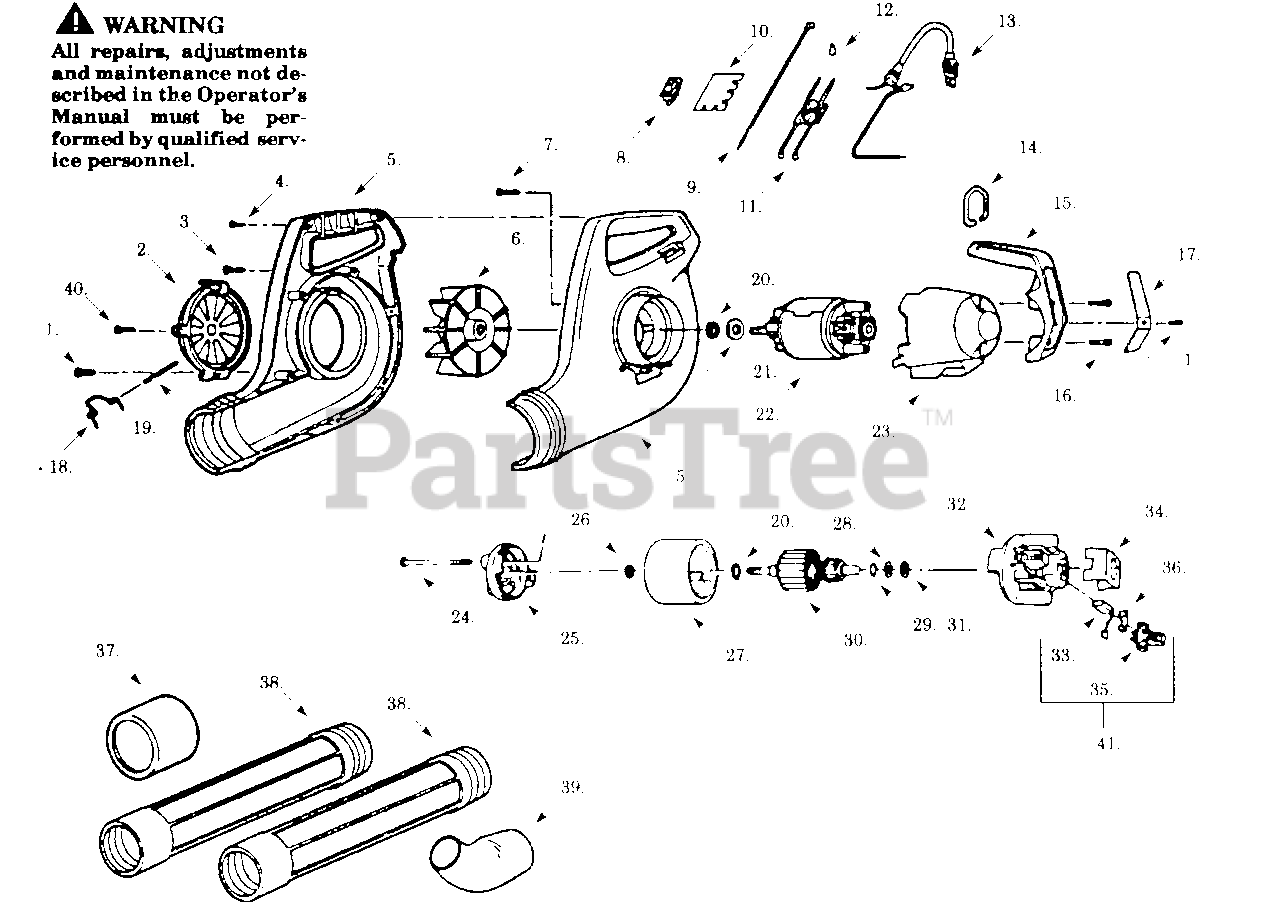

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534899900

Screw

$

$

Not available

2

Poulan 534498205

Inlet Cover

$

$

Not available

3

Poulan 534222400

Screw

$

$

Not available

4

Poulan 534184700

Screw

$

$

Not available

5

Poulan 534491722

Housing Set

$

$

Not available

6

Poulan 534398315

Impeller Ass'y

$

$

Not available

7

Poulan 534136401

Screw

$

$

Not available

8

Poulan 534332506

Switch

$

$

Not available

9

Poulan 534433800

Lead Wire Ass'y

$

$

Not available

10

Poulan 534334800

Mounting Board

$

$

Not available

11

Poulan 534345400

PC Board

$

$

Not available

12

Poulan 534561000

Connector

$

$

Not available

13

Poulan 534434001

Power Cord

$

$

Not available

14

Poulan 534270100

Hanger Bracket

$

$

Not available

15

Poulan 534319701

Handle

$

$

Not available

16

Poulan 534015772

Screw

$

$

Not available

17

Poulan 534346082

Plate

$

$

Not available

18

Poulan 534475900

Spring

$3.49

$

In Stock, only 1 left!

0

19

Poulan 534327201

Hinge Pin

$4.99

$

In Stock, only 1 left!

0

20

Poulan 534747002

Retaining Ring

$

$

Not available

21

Poulan 534757900

Washer

$

$

Not available

22

Poulan 534992001

Motor Ass'y

$

$

Not available

23

Poulan 534319602

Motor Housing

$

$

Not available

24

Poulan 534228700

Screw

$

$

Not available

25

Poulan 534207101

End Bell Ass'y

$

$

Not available

26

Poulan 534228800

Shim Washer

$

$

Not available

27

Poulan 534227001

Field Ass'y

$

$

Not available

28

Poulan 534228802

Shim Washer

$

$

Not available

29

Poulan 534246700

Retaining Ring

$

$

Not available

30

Poulan 534992401

Armature Ass'y

$

$

Not available

31

Poulan 534238903

Washer

$

$

Not available

32

Poulan 534227501

End Bell

$

$

Not available

33

Poulan 534227800

Brush

$

$

Not available

34

Poulan 534226000

Insulator

$

$

Not available

35

Poulan 534227700

Brush Holder

$

$

Not available

36

Poulan 534228000

Spring

$

$

Not available

37

Poulan 534408415

Sleeve

$

$

Not available

38

Poulan 534352705

Outlet Tube

$

$

Not available

39

Poulan 534373405

Nozzle

$

$

Not available

40

Poulan 534826801

Screw

$

$

Not available

41

Poulan 534450400

Brush Kit (Incl. 33,35,36)

$

$

Not available

42

Poulan 534886570

Operator Manual

Note: Not Shown.

$

$

Not available

43

Poulan 534100461

Warning Decal

Note: Not Shown.

$

$

Not available

44

Poulan 534061404

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
