PB 165 - Paramount Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

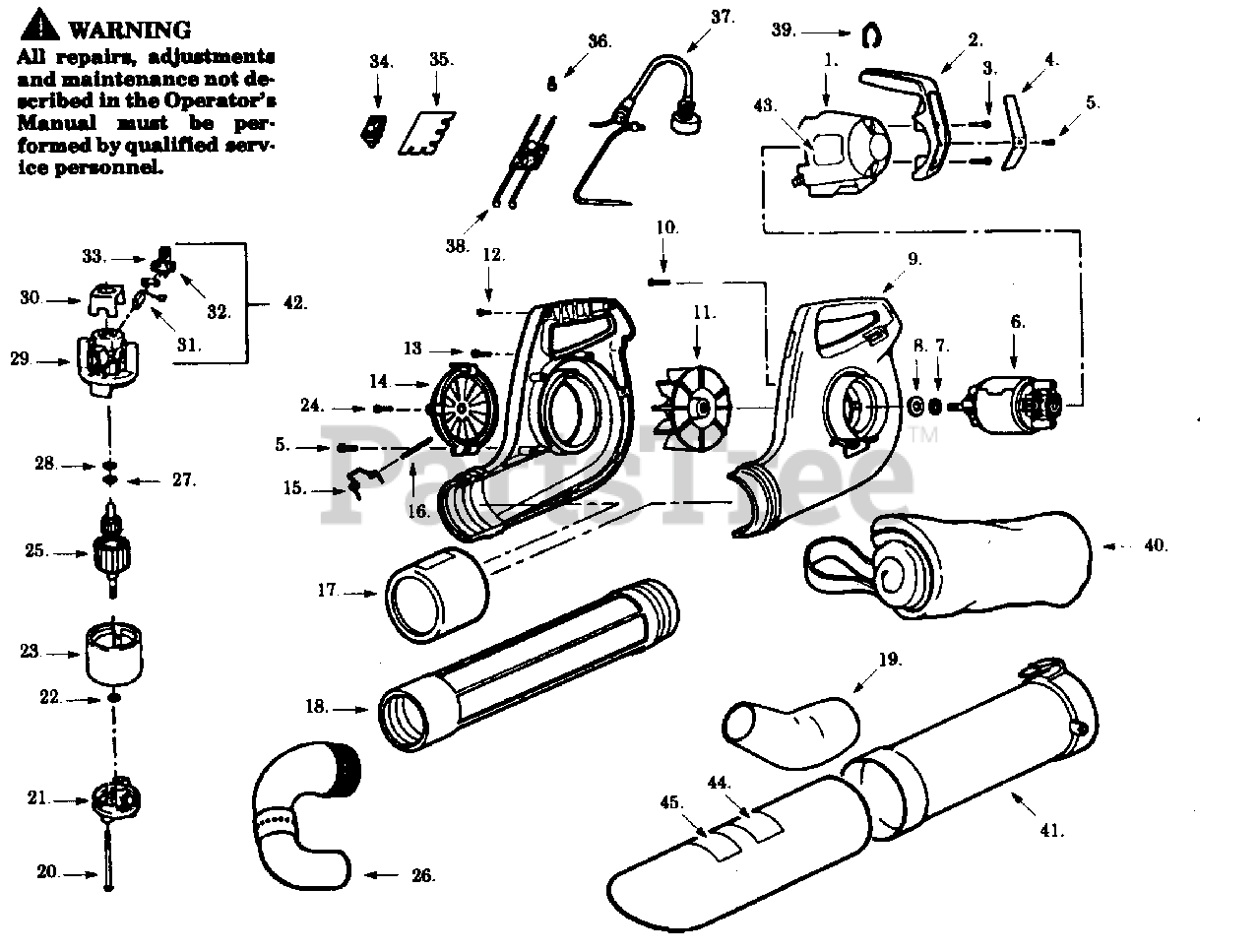

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534319602

Motor Cover

$14.99

$

Usually ships in 3-10 days

0

2

Poulan 534319705

Handle

$

$

Not available

3

Poulan 534136402

Screw

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534404355

Plate

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 534899900

Screw

$

$

Not available

6

Poulan 534992001

Motor

$

$

Not available

7

Poulan 534994500

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

8

Poulan 534757900

Washer

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 534491722

L.H/R.H. Housing

$

$

Not available

10

Poulan 534967501

Screw

$1.49

$

Usually ships in 3-10 days

0

11

Poulan 534398315

Impeller Ass'y.

$

$

Not available

12

Poulan 534790302

Screw

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 534790300

Screw

$

$

Not available

14

Poulan 534498205

Inlet Cover

$

$

Not available

15

Poulan 534475900

Spring

$3.99

$

In Stock, only 1 left!

0

16

Poulan 534327201

Hinge Pin

$4.99

$

In Stock, only 1 left!

0

17

Poulan 534408415

Ferrule Sleeve

$

$

Not available

18

Poulan 534352705

Outlet Tube

$

$

Not available

19

Poulan 534373405

Curved Nozzle

$

$

Not available

20

Poulan 534228700

Screw

$

$

Not available

21

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

22

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

24

Poulan 534826801

Screw

$

$

Not available

25

Poulan 534992401

Armature Ass'y.

$46.99

$

Usually ships in 3-10 days

0

26

Poulan 534380700

Nozzle Ass'y.

$14.99

$

Usually ships in 3-10 days

0

27

Poulan 534228802

Washer

$

$

Not available

28

Poulan 534238903

Washer

$

$

Not available

29

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

30

Poulan 534226000

Insulator

$

$

Not available

31

Poulan 534227800

Brush

$

$

Not available

32

Poulan 534228000

Brush Spring

$

$

Not available

33

Poulan 534227700

Brush Holder

$

$

Not available

34

Poulan 534447903

On-Off Switch Ass'y.

$6.49

$

In Stock, only 2 left!

0

35

Poulan 534334800

Mounting Board

$

$

Not available

36

Poulan 534253201

Wire Nut

$1.49

$

Usually ships in 3-10 days

0

37

Poulan 534434001

Power Cord Ass'y.

$

$

Not available

38

Poulan 534345405

P.C. Board Ass'y.

$14.99

$

Usually ships in 3-10 days

0

39

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

40

Poulan 534339900

Vacuum Bag

$

$

Not available

41

Poulan 534528705

Vacuum Tube

$

$

Not available

42

Poulan 534450400

Brush Kit (Incl. 31,32,33)

$

$

Not available

43

Poulan 534875600

Motor Cover Label (Not a serviceable part)

$

$

Not available

44

Poulan 534100461

Name Plate Label

$

$

Not available

45

Poulan 534803400

Warning Label

$

$

Not available

46

Poulan 534886570

Operator Manual

Note: Not Shown.

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 534875707

Gutter Attachment Manual (Not a serviceable part)

Note: Not Shown.

$

$

Not available

48

Poulan 534875707

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

49

Poulan 952062003

Goggles
(Superseded to 952007397)

Note: Not Shown.

$

$

Not available
