PB 185A42 (960420166-00) - Poulan Pro Lawn Tractor (2014-09) ENGINE Parts Diagram

Lawn Tractor

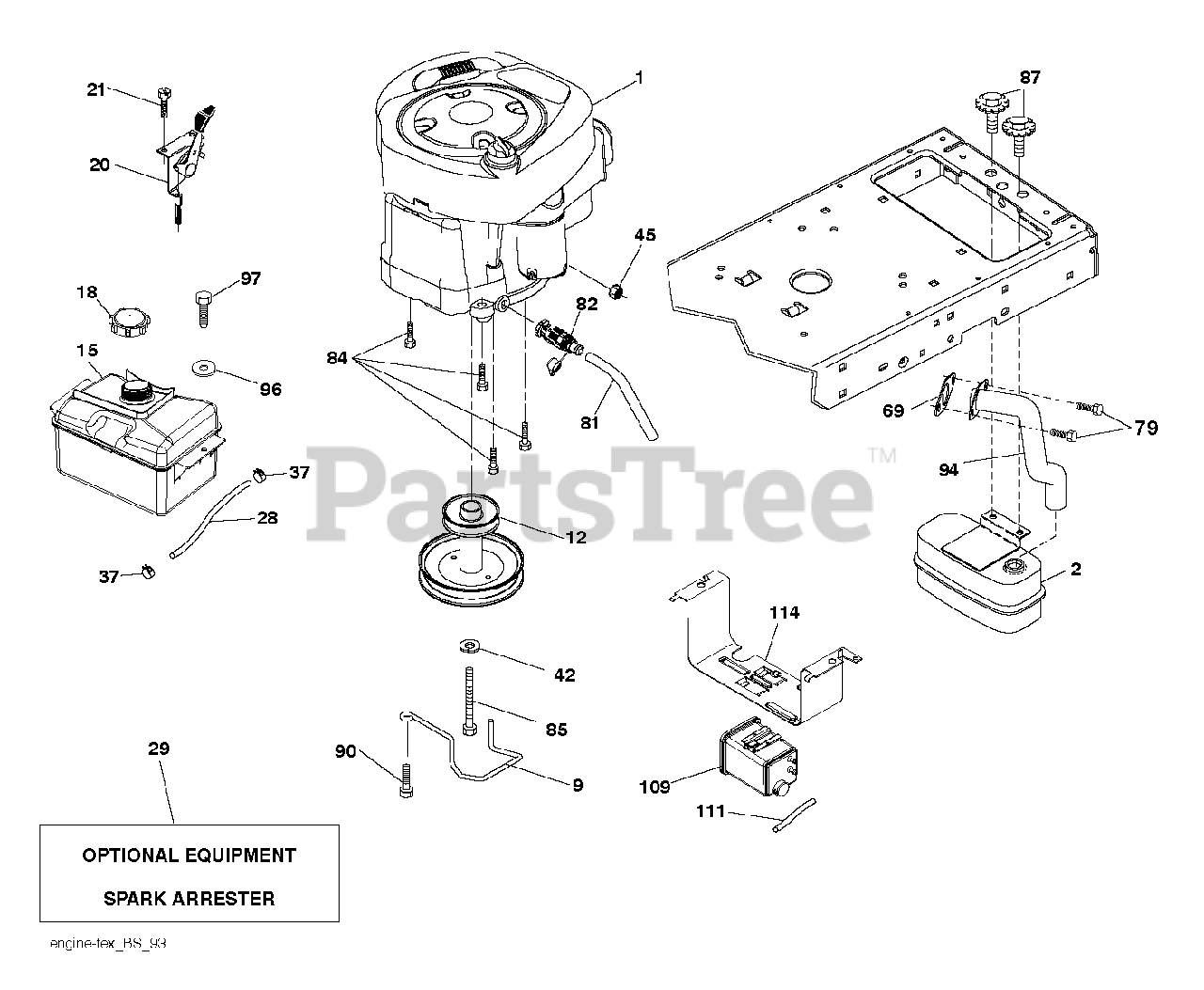

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE B S MODEL NO 33R777-0003-G1 (585564601)

$

$

Not available

2

Poulan 580532301

MUFFLER.SINGLE.LRG.BRIGGS.KOHL
(Superseded to 532188655)

$51.99

$

In Stock, Qty 9

0

9

Poulan 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

In Stock, only 2 left!

0

12

Poulan 532401985

PULLEY ENGINE
(Superseded to 586729001)

$31.99

$

In Stock, Qty 5

0

15

Poulan 532430647

TANK ASM.FRT.CRB.1.5GA.E10.SVC
(Superseded to 586365801)

$303.99

$

Usually ships in 3-10 days

0

18

Poulan 532430219

CAP ASM.FUEL.2.25"FRT.CARB

$79.99

$

Usually ships in 3-10 days

0

20

Poulan 532170545

(Superseded to 583045801)

$34.99

$

In Stock, only 2 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.49

$

In Stock, Qty 9

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$13.99

$

In Stock, only 3 left!

0

29

Poulan 532131780

SPARK ARRESTOR KIT

$

$

Not available

37

Poulan 532123487

HOSE CLAMP

$3.49

$

In Stock, only 4 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.49

$

In Stock, Qty 20+

0

69

Poulan 532165291

(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 2 left!

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 8

0

84

Poulan 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 11

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 18

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, only 2 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

94

Poulan 581880901

Exhaust Tube, B&S 28/31

$26.99

$

In Stock, only 2 left!

0

96

Poulan 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

109

Poulan 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

111

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0

114

Poulan 532414116

NO LONGER AVAILABLE
(Superseded to 414116)

$

$

Not available
