PB 195 H42 LT (960420036-00) - Husqvarna 42" Lawn Tractor (2007-08) Engine Parts Diagram

42" Lawn Tractor

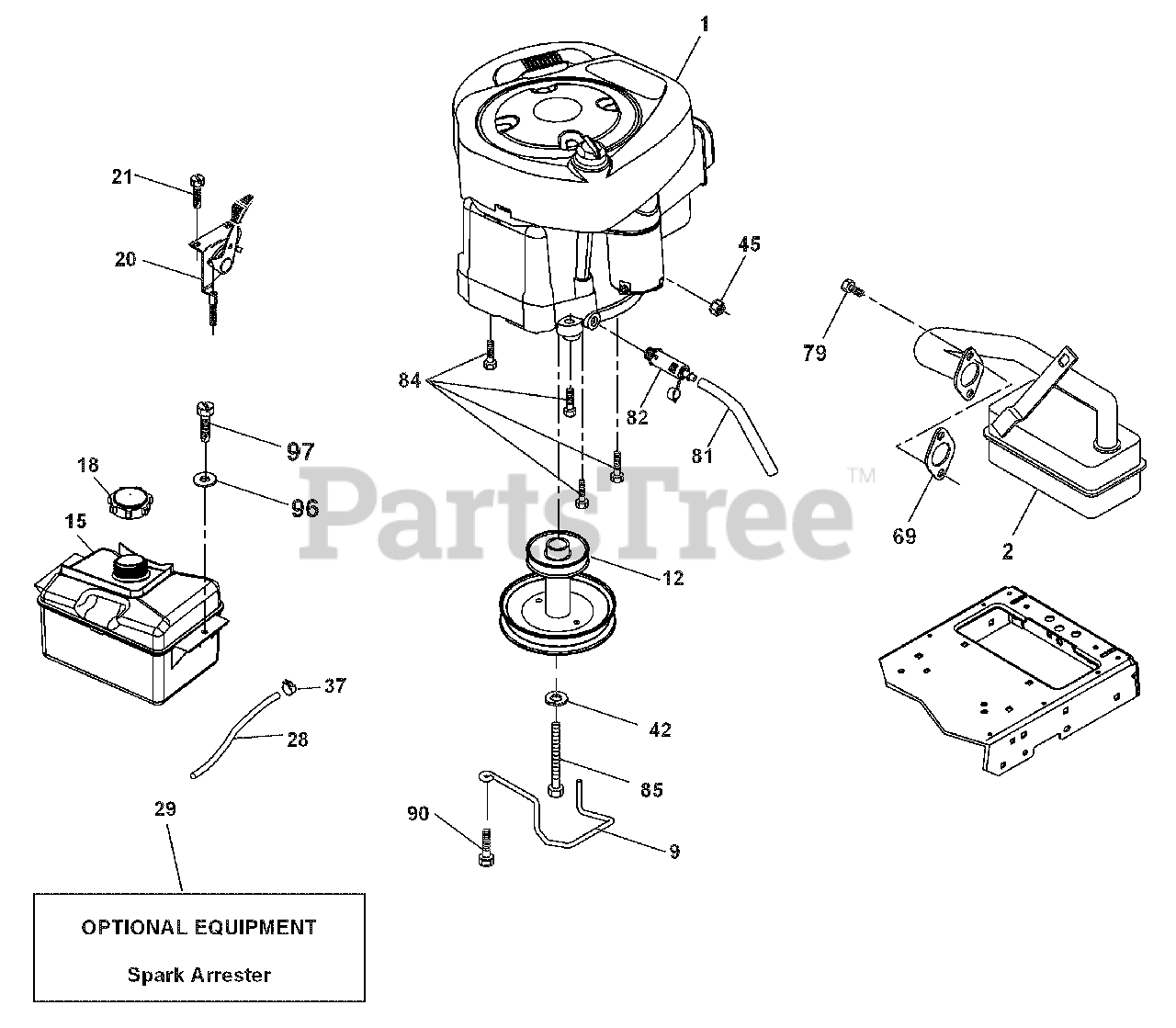

Engine Parts Diagram

  • Title

1

Engine B&S Model No. 31P677

$

$

Not available

2

Husqvarna 137352

Muffler
(Superseded to 532137352)

$44.99

$

In Stock, only 3 left!

0

9

Husqvarna 194319

Keeper Belt Engine
(Superseded to 532194319)

$12.99

$

In Stock, only 2 left!

0

12

Husqvarna 401985

Pulley Engine
(Superseded to 532401985)

$40.99

$

In Stock, Qty 8

0

15

Husqvarna 407545

Tank Fuel 1.50

$

$

Not available

18

Husqvarna 197725

Cap Asm

$

$

Not available

20

Husqvarna 176636X421

Control Throttle/Choke
(Superseded to 584372901)

$37.99

$

In Stock, only 2 left!

0

21

Husqvarna 191611

Screw 10 x 3/4 Single Lead-Hex

$

$

Currently unavailable

28

Husqvarna 401137

Fuel Line
(Superseded to 532401137)

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 137180

Spark Arrester Kit
(Superseded to 532137180)

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 123487X

Clamp Hose
(Superseded to 532123487)

$7.49

$

In Stock, Qty 16

0

42

Husqvarna 10040700

Washer Lock 7/16
(Superseded to 810040700)

$

$

Not available

45

Husqvarna 73510400

Nut Keps Hex 1/4-20 unc

$

$

Not available

69

Husqvarna 165291

Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Husqvarna 192334

Screw Socket Hd 5/16-18 x .75
(Superseded to 532192334)

$

$

Not available

81

Husqvarna 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$4.99

$

In Stock, Qty 18

0

82

Husqvarna 181654

Plug Drain Oil

$47.99

$

Usually ships in 3-10 days

0

84

Husqvarna 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
(Superseded to 532173937)

$4.99

$

In Stock, Qty 11

0

90

Husqvarna 17000612

Screw 3/8-16 x 1.0
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

96

Husqvarna 19091416

Washer 9/32 x 7/8 x 16 GA
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 17670412

Screw 1/4 - 20 x 3/4
(Superseded to 817670412)

$6.49

$

In Stock, only 2 left!

0
