PB 19542LT (960120122-01) - Poulan Pro Lawn Tractor (2012-08) ENGINE Parts Diagram

Lawn Tractor

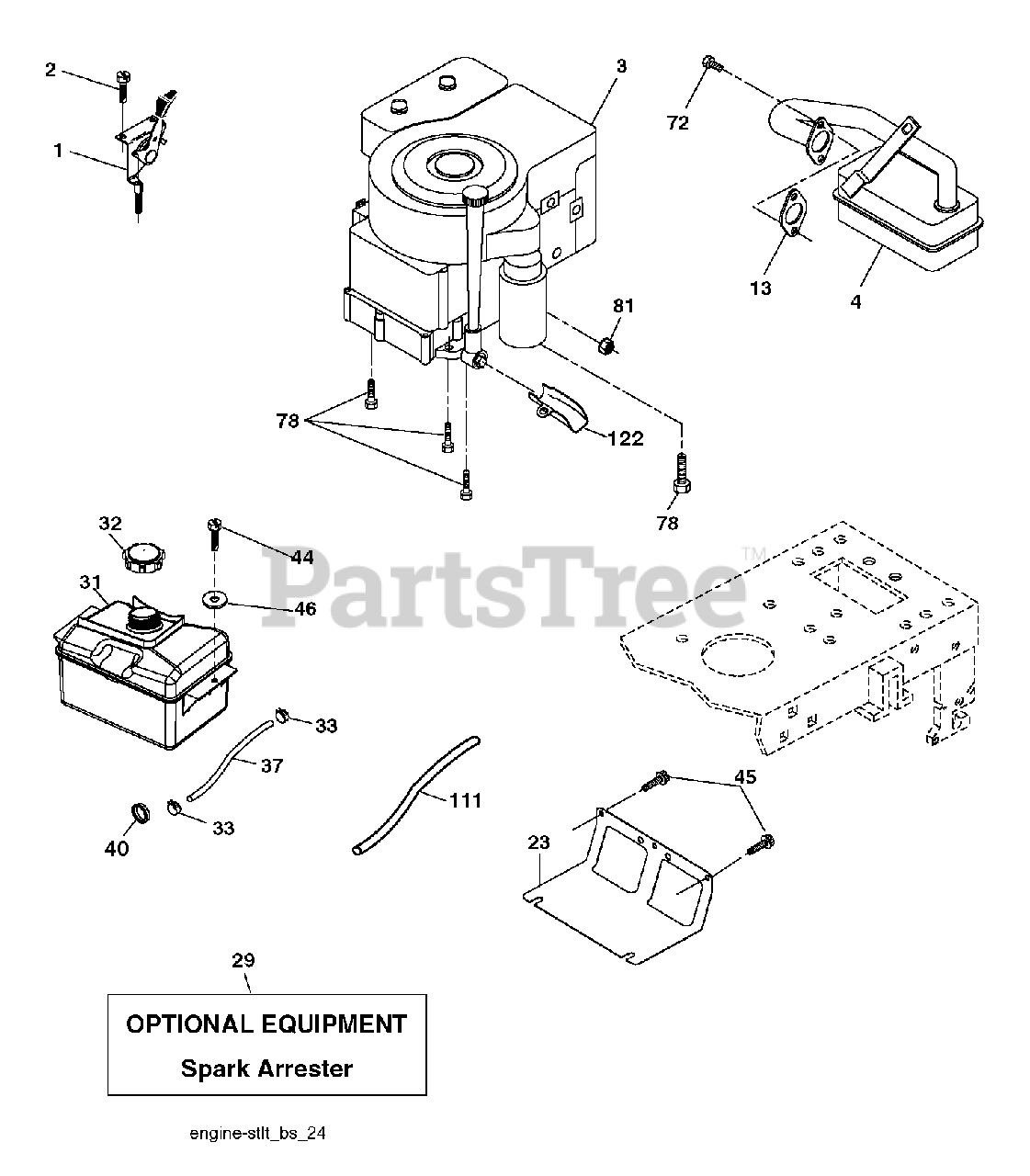

ENGINE Parts Diagram

  • Title

1

Poulan 532170551

CONTROL.THROTTLE/CHOKE.BLACK

$

$

Not available

2

Poulan 817240408

SCREW

$

$

Not available

3

Poulan 000000000

Note: ENGINE B S MODEL NO 31P677-3373-G5 (438211)

$

$

Not available

4

Poulan 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$51.99

$

In Stock, Qty 5

0

13

Poulan 532165291

(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

23

Poulan 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$26.99

$

In Stock, Qty 7

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

Note: FLAT SCRN

$193.99

$

In Stock, only 1 left!

0

31

Poulan 532433003

TANK.ASM.1.5GAL.FRT.W/CAP.EPA

$

$

Not available

32

Poulan 532438596

CAP.2.25'.VENTED.RATCHET.EPA
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

33

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, only 3 left!

0

37

Poulan 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$13.99

$

In Stock, only 3 left!

0

40

Poulan 532124028

GROMMET T

$5.99

$

In Stock, only 1 left!

0

44

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: 1767041

$4.99

$

In Stock, only 2 left!

0

45

Poulan 817000612

SCREW, 3/8-16X3/4

Note: 1700061

$4.99

$

In Stock, Qty 20+

0

46

Poulan 819091416

WASHER
(Superseded to 596135301)

Note: 1909141

$3.49

$

In Stock, Qty 6

0

72

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

78

Poulan 817060620

SCREW.3/8-16

Note: 1706062

$6.99

$

In Stock, Qty 6

0

81

Poulan 873510400

NUT
(Superseded to 586668901)

Note: 7351040

$3.99

$

In Stock, Qty 20+

0

111

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$14.99

$

Usually ships in 3-10 days

0

122

Poulan 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 7

0
