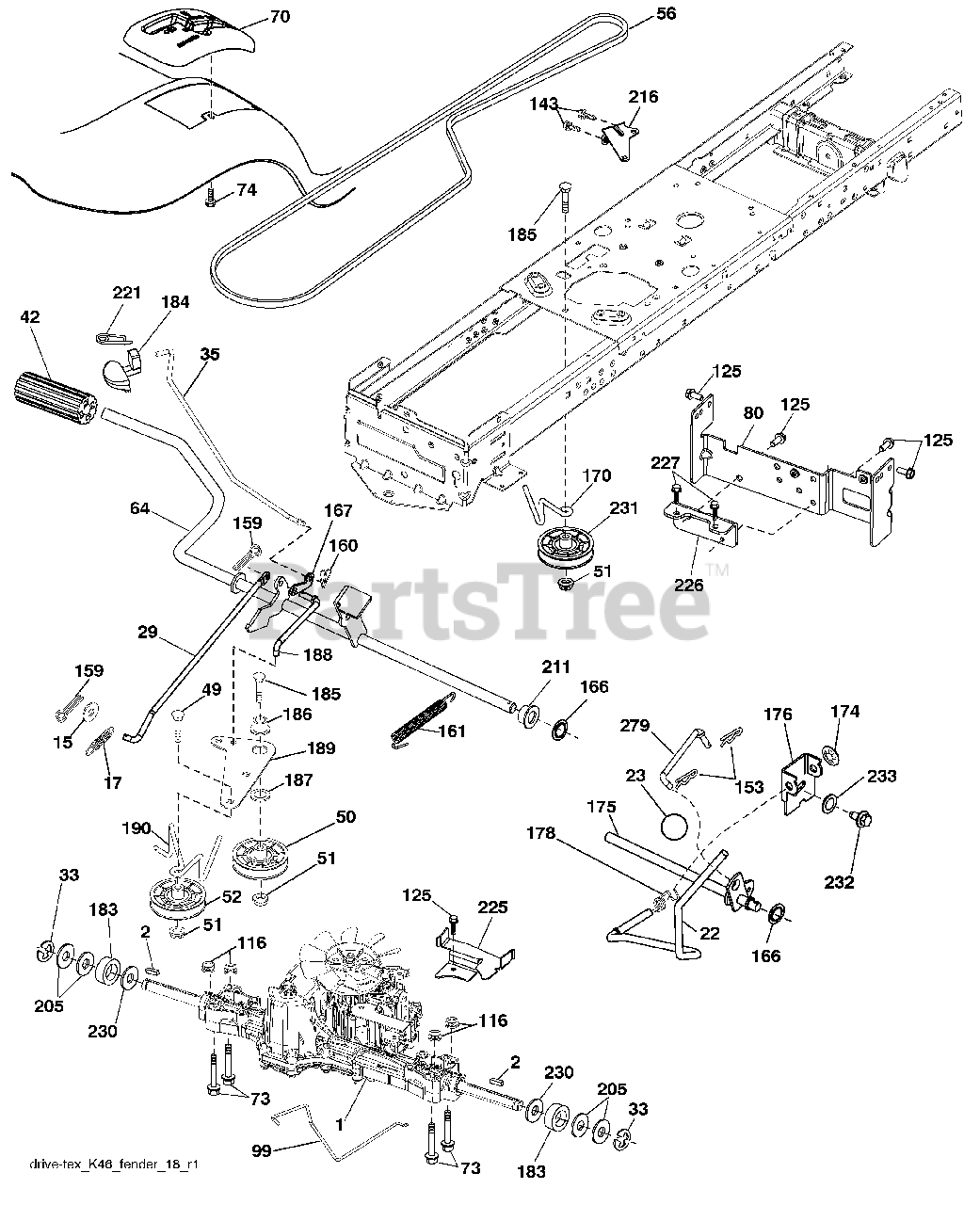

PB 195H42 LT (960420107-03) - Poulan Pro Lawn Tractor (2010-05) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle, Tufftorq K46BA

$

$

Not available

2

Electrolux/AYP 532123583

Key Square

$4.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 9

0

17

Electrolux/AYP 532413678

Spring, Brake

$7.49

$

In Stock, Qty 15

0

22

Electrolux/AYP 532197660

Rod Shift

$182.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532140845

Knob

$12.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532403806

Rod, Brake

$31.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 812000001

Ring E

$4.99

$

In Stock, Qty 17

0

35

Electrolux/AYP 532197722

Rod, Brake, Park

$12.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

49

Electrolux/AYP 872110614

Bolt
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

50

Electrolux/AYP 532194327

Pulley Idler Flat

$13.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 532194326

Idler V-Groove 910" Offset

$12.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 532130969

V-Belt, Drive

$30.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532196200

Shaft Asm. Pedal Brake Control

$34.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532411329

Console

$17.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 874490544

Bolt Hex 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532142432

Screw 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 532410024

Strap Torque
(Superseded to 532440619)

$24.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 532415742

Rod Spring Bypass

$10.99

$

In Stock, only 4 left!

0

116

Electrolux/AYP 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

125

Electrolux/AYP 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Electrolux/AYP 817490508

Screw THDROL 5/16-18

$6.49

$

Usually ships in 3-10 days

0

153

Electrolux/AYP 532124788

Retainer Spring 1"
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Electrolux/AYP 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 532169484

Retainer Clip
(Superseded to 596029401)

$3.99

$

In Stock, Qty 14

0

161

Electrolux/AYP 532105709

Spring, Return, Clutch

$10.99

$

In Stock, Qty 20+

0

166

Electrolux/AYP 532429164

Nut Push .625

$6.49

$

In Stock, Qty 6

0

167

Electrolux/AYP 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 532413430

Keeper Belt Centerspan

$7.49

$

Usually ships in 3-10 days

0

174

Electrolux/AYP 532197289

Nut Push

$6.49

$

In Stock, only 2 left!

0

175

Electrolux/AYP 532408539

Shaft Asm Shift

$24.99

$

In Stock, only 1 left!

0

176

Electrolux/AYP 532196214

Arm Clevis Rod Shift

$7.49

$

Usually ships in 3-10 days

0

178

Electrolux/AYP 532197456

Spring Shift

$6.49

$

In Stock, only 2 left!

0

183

Electrolux/AYP 532137057

Spacer Axle

$7.49

$

In Stock, Qty 10

0

184

Electrolux/AYP 532411289

Handle Parking Brake
(Superseded to 532198403)

$

$

Not available

185

Electrolux/AYP 872110622

Bolt

$3.99

$

In Stock, only 2 left!

0

186

Electrolux/AYP 532194321

Spacer Retainer

$7.49

$

In Stock, only 1 left!

0

187

Electrolux/AYP 819133210

Washer
(Superseded to 596135501)

$3.99

$

In Stock, Qty 18

0

188

Electrolux/AYP 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Electrolux/AYP 532194317

Bellcrank Ground Drive

$4.99

$

In Stock, Qty 7

0

190

Electrolux/AYP 532194318

Keeper Bellcrank Ground Drive

$8.99

$

In Stock, Qty 19

0

205

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

211

Electrolux/AYP 532196212

Bushing Shaft

$6.49

$

Usually ships in 3-10 days

0

216

Electrolux/AYP 532196131

Bracket Pulley Idler

$7.49

$

In Stock, only 2 left!

0

221

Electrolux/AYP 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, Qty 10

0

225

Electrolux/AYP 532403319

Keeper Belt Transaxle

$3.49

$

In Stock, only 3 left!

0

226

Electrolux/AYP 532401564

Bracket Mount Torque

$18.99

$

Usually ships in 3-10 days

0

227

Electrolux/AYP 817490512

Screw 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

230

Electrolux/AYP 532188967

Washer Harden .793 x 1.637 x 060

$4.99

$

In Stock, Qty 20+

0

231

Electrolux/AYP 532407287

Idler V-Groove 1.688" Offset

$18.99

$

In Stock, Qty 20+

0

232

Electrolux/AYP 874780716

Bolt 7/16-14 x 1 Gr 5

$4.99

$

Usually ships in 3-10 days

0

233

Electrolux/AYP 532405296

Washer Serrated

$6.49

$

Usually ships in 3-10 days

0

279

Electrolux/AYP 532413150

Link Shift

$24.99

$

Usually ships in 3-10 days

0
