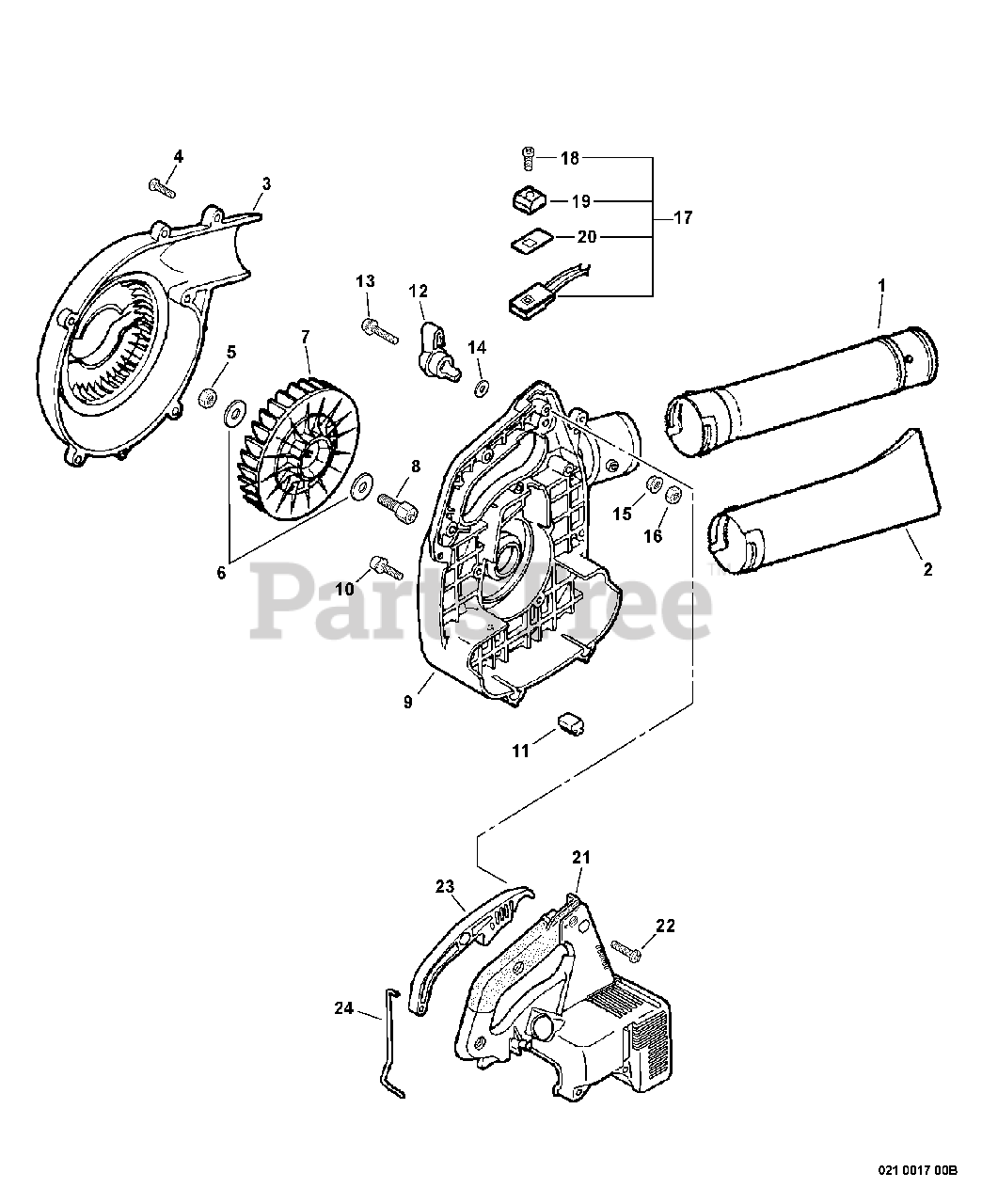

PB-200 - Echo Handheld Blower (SN: P08912001001 - P08912999999) Fan Case, Engine Cover, Controls, Blower Tubes S/N: P08912004601 - P08912999999 Parts Diagram

Handheld Blower

Fan Case, Engine Cover, Controls, Blower Tubes S/N: P08912004601 - P08912999999 Parts Diagram

  • Title

1

Echo 21001505060

TUBE, BLOWER - STRAIGHT

$15.99

$

In Stock, only 3 left!

0

2

Echo 21001420560

TUBE, BLOWER - NOZZLE
(Superseded to 21001420561)

$11.99

$

In Stock, Qty 17

0

3

Echo 20011120561

COVER, FAN
(Superseded to 20011120562)

$28.99

$

Usually ships in 2-4 days

0

4

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

5

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

6

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

7

Echo 20001020560

FAN

$21.99

$

Usually ships in 2-4 days

0

8

Echo 20001105661

HUB, FAN

$18.99

$

In Stock, only 1 left!

0

9

Echo E103000470

COVER, FAN - OUTER

$22.99

$

Usually ships in 2-4 days

0

10

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

11

Echo 35133520560

CUSHION

$7.49

$

In Stock, only 2 left!

0

12

Echo 17805420560

CONTROL, THROTTLE

$12.99

$

Usually ships in 2-4 days

0

13

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

16

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

17

Echo 16340120561

CABLE ASSY, CONTROL
(Superseded to P021015460)

Note: INCLUDES ITEMS 18-20

$5.49

$

Usually ships in 2-4 days

0

18

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

19

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

20

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

21

Echo A190000680

COVER, ENGINE

$23.99

$

Usually ships in 2-4 days

0

22

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

23

Echo 17801020560

CONTROL, THROTTLE

$8.99

$

In Stock, Qty 5

0

24

Echo 17801120561

ROD, THROTTLE

$7.99

$

In Stock, Qty 14

0
