PB-200 - Echo Handheld Blower (SN: P08912001001 - P08912999999) Ignition Parts Diagram

Handheld blower PB-200: compact 330 mm x 215 mm x 340 mm, 3.8 kg dry weight, powered by a 21.2 cc air-cooled 2-stroke single-cylinder engine. 0.5 L fuel tank.

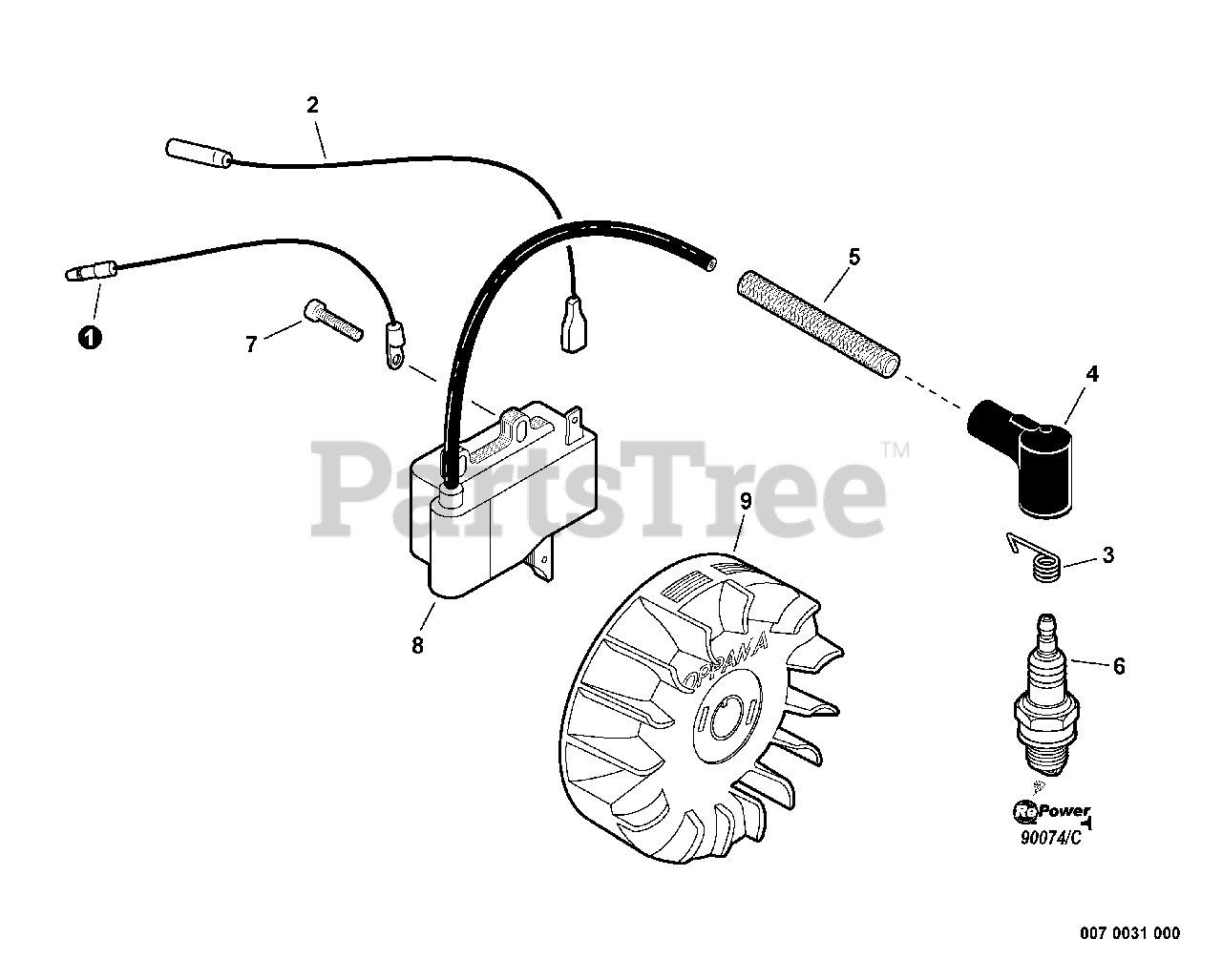

Ignition Parts Diagram

  • Title

1

Echo 16202120560

LEAD - GROUND

$11.99

$

Usually ships in 2-4 days

0

2

Echo V485000040

LEAD - IGNITION

$11.99

$

Usually ships in 2-4 days

0

3

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

4

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

5

Echo V471000660

TUBE, INSULATOR

$1.49

$

Usually ships in 2-4 days

0

6

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

6

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

7

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

8

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$85.99

$

In Stock, Qty 20+

0

9

Echo A409000210

FLYWHEEL

$65.99

$

In Stock, only 1 left!

0

10

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

10

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

Note: CANADA MODELS

$21.99

$

In Stock, Qty 20+

0
