PB-201 - Echo Handheld Blower (SN: 02001001 - 02999999) Engine, Short Block, Ignition, Starter Parts Diagram

Handheld blower PB-201: compact 330 mm x 215 mm x 340 mm, 4 kg dry weight, powered by a 21.2 cc air-cooled 2-stroke single-cylinder engine. 0.5 L fuel tank.

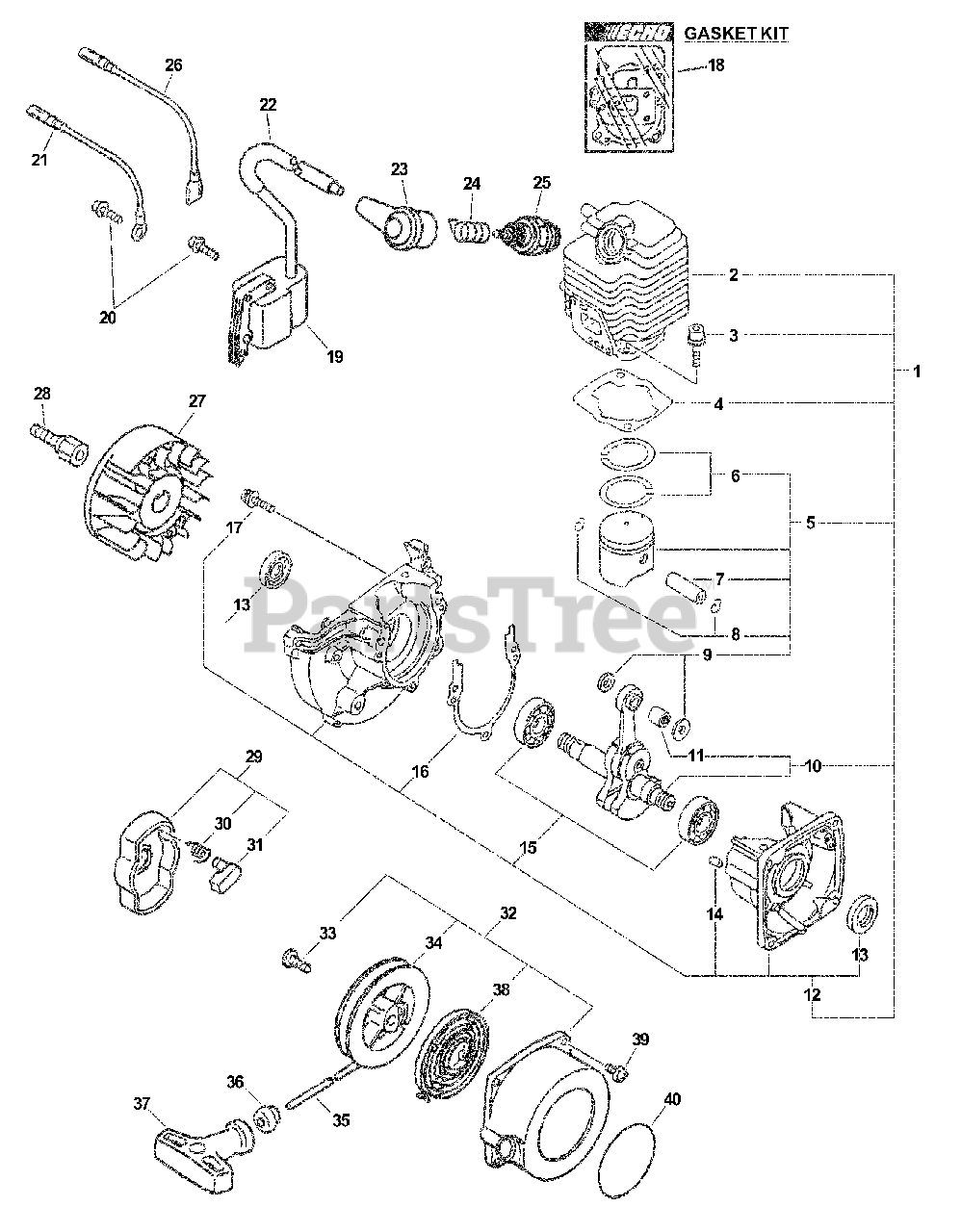

Engine, Short Block, Ignition, Starter Parts Diagram

  • Title

1

Echo SB1049

SHORT BLOCK

Note: INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER

$198.99

$

Usually ships in 2-4 days

0

2

Echo A130000100

CYLINDER
(Superseded to A130000101)

$138.99

$

Usually ships in 2-4 days

0

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

4

Echo V100000020

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Included In GASKET KIT

$

$

Not available

5

Echo P021000411

PISTON KIT
(Superseded to P021001101)

Note: Includes ITEMS 6-9

$93.99

$

In Stock, only 2 left!

0

6

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 20+

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, Qty 8

0

10

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

Note: Includes ITEM 11

$186.99

$

Usually ships in 2-4 days

0

11

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

$

$

Not available

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, Qty 20+

0

16

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 14

0

17

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 9

0

18

Echo P021001621

GASKET KIT
(Superseded to P021001622)

$20.99

$

Usually ships in 2-4 days

0

19

Echo A411000020

COIL, IGNITION
(Superseded to A411000021)

$95.99

$

Usually ships in 2-4 days

0

20

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

21

Echo 16202120560

LEAD - GROUND

$11.99

$

Usually ships in 2-4 days

0

22

Echo 15661105060

PIPE

$1.99

$

In Stock, Qty 5

0

23

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

24

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

25

Echo 99944500071

SPARK PLUG - BPM-7Y

$2.49

$

In Stock, Qty 8

0

26

Echo V485000040

LEAD - IGNITION

$11.99

$

Usually ships in 2-4 days

0

27

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

$68.99

$

Usually ships in 2-4 days

0

28

Echo 20001105661

HUB, FAN

$18.99

$

Usually ships in 2-4 days

0

29

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 30-31

$11.99

$

In Stock, Qty 7

0

30

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 20+

0

31

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

32

Echo 177200-42033

STARTER ASSY, RECOIL

Note: INCLUDES ITEMS 33-38

$58.99

$

In Stock, Qty 8

0

33

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

34

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 14

0

35

Echo 177226-10120

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$6.99

$

In Stock, Qty 7

0

36

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

37

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 15

0

38

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 20+

0

39

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

40

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0
