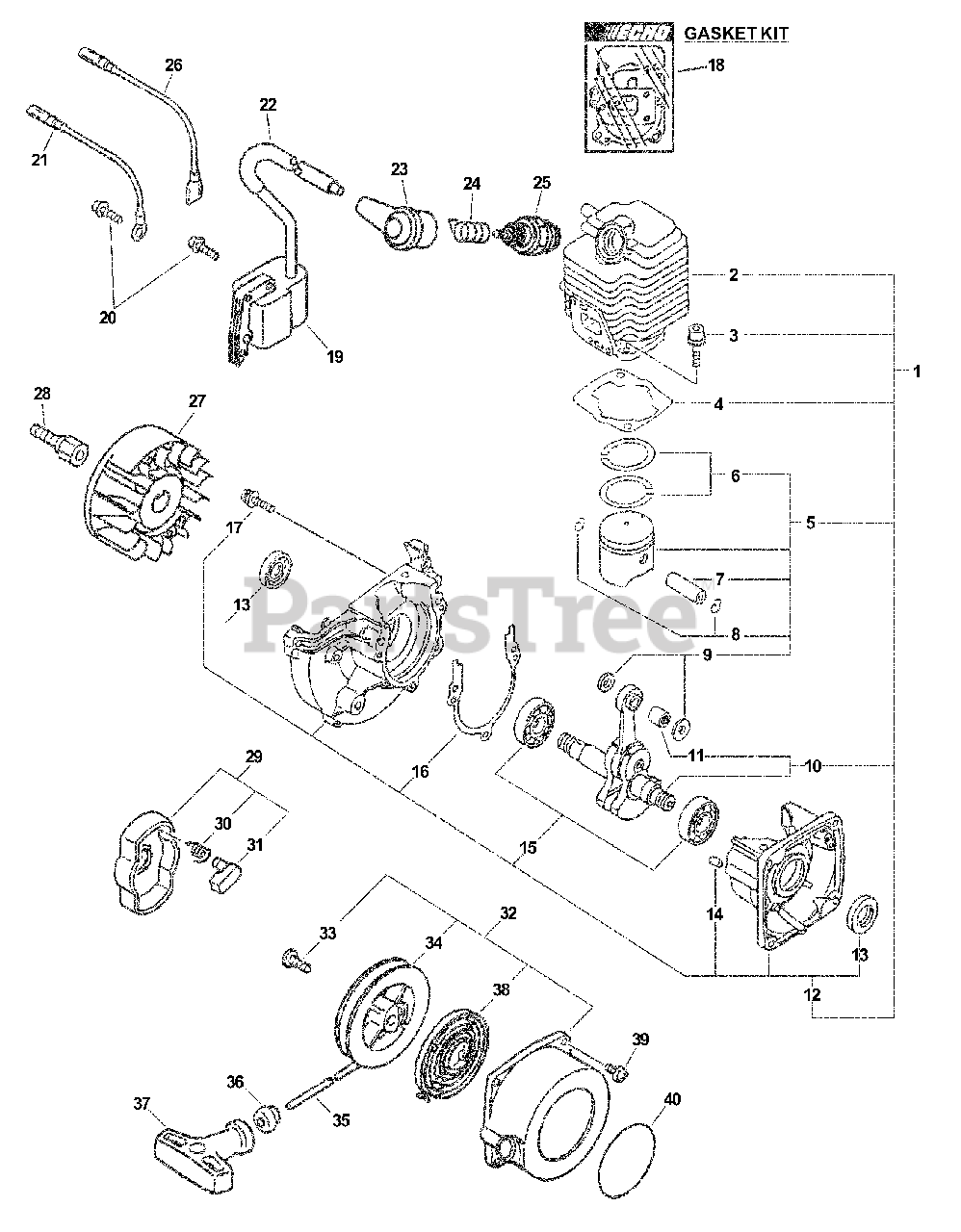

PB-201 - Echo Handheld Blower (SN: 02001001 - 02999999) Engine, Short Block, Ignition, Starter Parts Diagram

Handheld Blower

Engine, Short Block, Ignition, Starter Parts Diagram

  • Title

1

Echo SB1049

SHORT BLOCK -- SB1049

Note: INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER

$166.99

$

Usually ships in 2-4 days

0

2

Echo A130000100

CYLINDER
(Superseded to A130000101)

$115.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo V100000020

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo P021000411

PISTON KIT
(Superseded to P021001101)

Note: Includes ITEMS 6-9

$77.99

$

In Stock, Qty 6

0

6

Echo A101000000

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

10

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

Note: Includes ITEM 11

$155.99

$

In Stock, only 1 left!

0

11

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

$140.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

18

Echo P021001621

GASKET KIT
(Superseded to P021001622)

$

$

Not available

19

Echo A411000020

COIL, IGNITION
(Superseded to A411000021)

$79.99

$

In Stock, only 1 left!

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 16202120560

LEAD - GROUND

$9.99

$

Usually ships in 2-4 days

0

22

Echo 15661105060

TUBE

$1.99

$

In Stock, Qty 5

0

23

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

25

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, Qty 7

0

26

Echo V485000040

LEAD - IGNITION

$9.99

$

Usually ships in 2-4 days

0

27

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

$63.99

$

Usually ships in 2-4 days

0

28

Echo 20001105661

HUB, FAN

$15.99

$

In Stock, only 1 left!

0

29

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 30-31

$16.99

$

In Stock, Qty 20+

0

30

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 20+

0

31

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

32

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 33-38

$49.99

$

In Stock, Qty 20+

0

33

Echo 17723644330

SCREW

$3.49

$

In Stock, Qty 13

0

34

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 20+

0

35

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 16

0

36

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 19

0

37

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

38

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 20+

0

39

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

40

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0
