PB-201 - Echo Handheld Blower (SN: 06001001 - 06999999) Intake, Exhaust Parts Diagram

Handheld blower PB-201: compact 330 mm x 215 mm x 340 mm, 4 kg dry weight, powered by a 21.2 cc air-cooled 2-stroke single-cylinder engine. 0.5 L fuel tank.

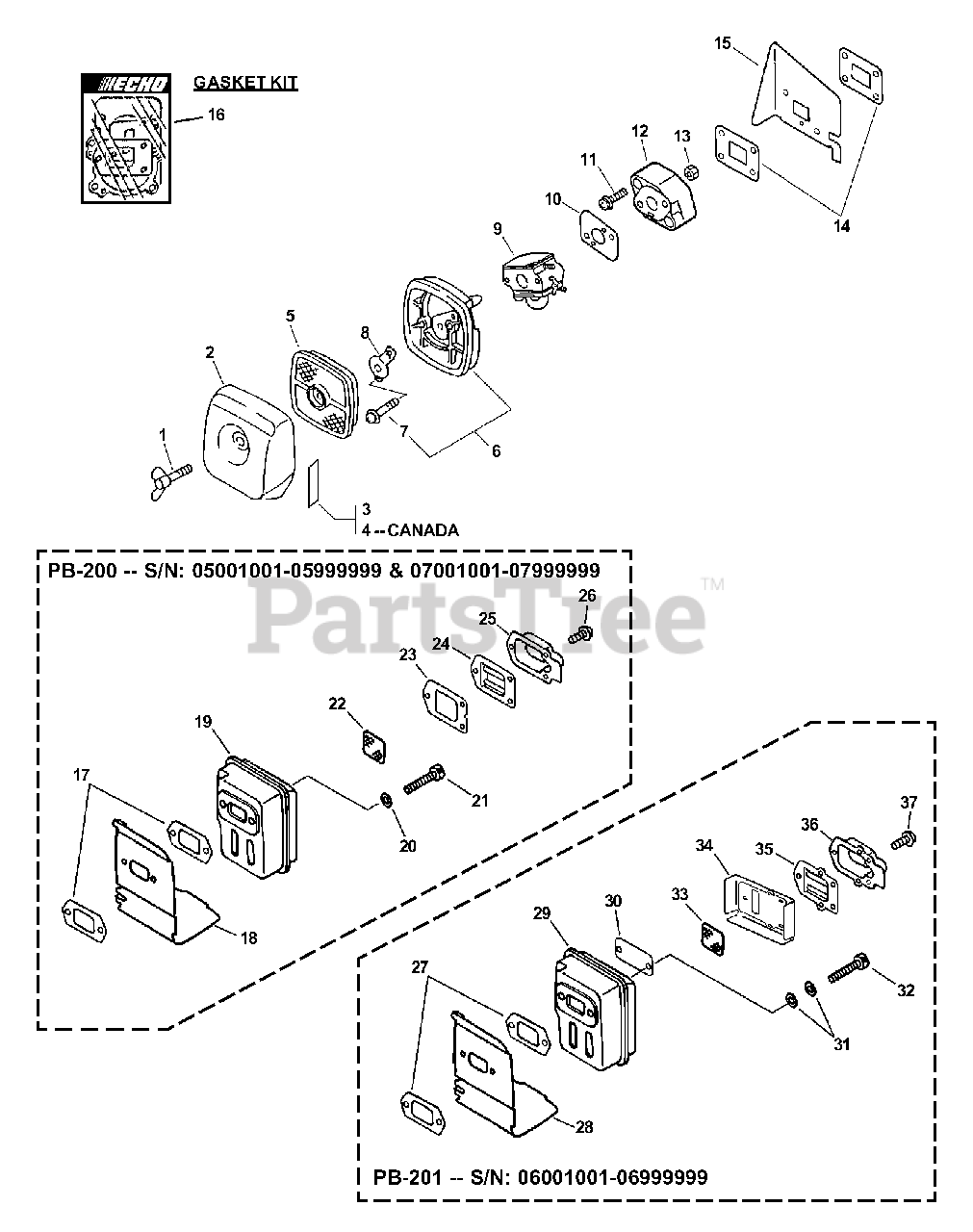

Intake, Exhaust Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 13

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

4

Echo 89012105360

LABEL, CHOKE

Note: CANADA MODELS

$1.99

$

In Stock, only 4 left!

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: Included In RePower KIT

$8.99

$

In Stock, Qty 20+

0

6

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 15

0

7

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

8

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

9

Echo A021000530

CARBURETOR - C1U-K68
(Superseded to A021000531)

$

$

Not available

10

Echo 13001020560

GASKET, INTAKE

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 8

0

11

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

12

Echo 13001705062

INSULATOR, INTAKE

$7.49

$

In Stock, only 2 left!

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 13001009561

GASKET, INTAKE

Note: Included In GASKET KIT

$3.49

$

Usually ships in 2-4 days

0

15

Echo 10151420560

HEAT SHIELD, INTAKE

$3.49

$

In Stock, only 2 left!

0

16

Echo P021004650

GASKET KIT
(Superseded to P021004651)

$

$

Not available

17

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

18

Echo 14587105760

COVER, MUFFLER

$13.99

$

Usually ships in 2-4 days

0

19

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

20

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

23

Echo 145866-42031

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.99

$

In Stock, only 1 left!

0

24

Echo A313000110

GUIDE, EXHAUST

$

$

Not available

25

Echo A313000420

GUIDE, EXHAUST - INNER

$2.49

$

Usually ships in 2-4 days

0

26

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

27

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

28

Echo 14587105760

COVER, MUFFLER

Note: Included In GASKET KIT

$13.99

$

Usually ships in 2-4 days

0

29

Echo A300000141

MUFFLER
(Superseded to A300000790)

$88.99

$

In Stock, Qty 7

0

30

Echo V150000371

PLATE, EYE

$1.49

$

In Stock, Qty 8

0

31

Echo V347000000

CONICAL WASHER

$0.99

$

In Stock, Qty 8

0

32

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

33

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

34

Echo V104000360

GASKET, EXHAUST
(Superseded to V104001760)

Note: Included In GASKET KIT

$8.49

$

In Stock, Qty 5

0

35

Echo A313000140

GUIDE, EXHAUST - INNER

$4.99

$

Usually ships in 2-4 days

0

36

Echo A313000400

GUIDE, EXHAUST - INNER

$

$

Not available

37

Echo 9136704012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0
