PB-202 - Echo Backpack Blower (SN: 0001001 - 0040501) Air Cleaner Parts Diagram

Handheld blower PB-202: features a compact 28x39x45 in (11.0x15.4x17.7 in) chassis, weighing 5.4 kg (11.9 lb). It uses an air-cooled, 2-cycle single-cylinder engine, 21.2 cc displacement, with a top speed of 7,500 rpm (idle 2,000-2,500 rpm).

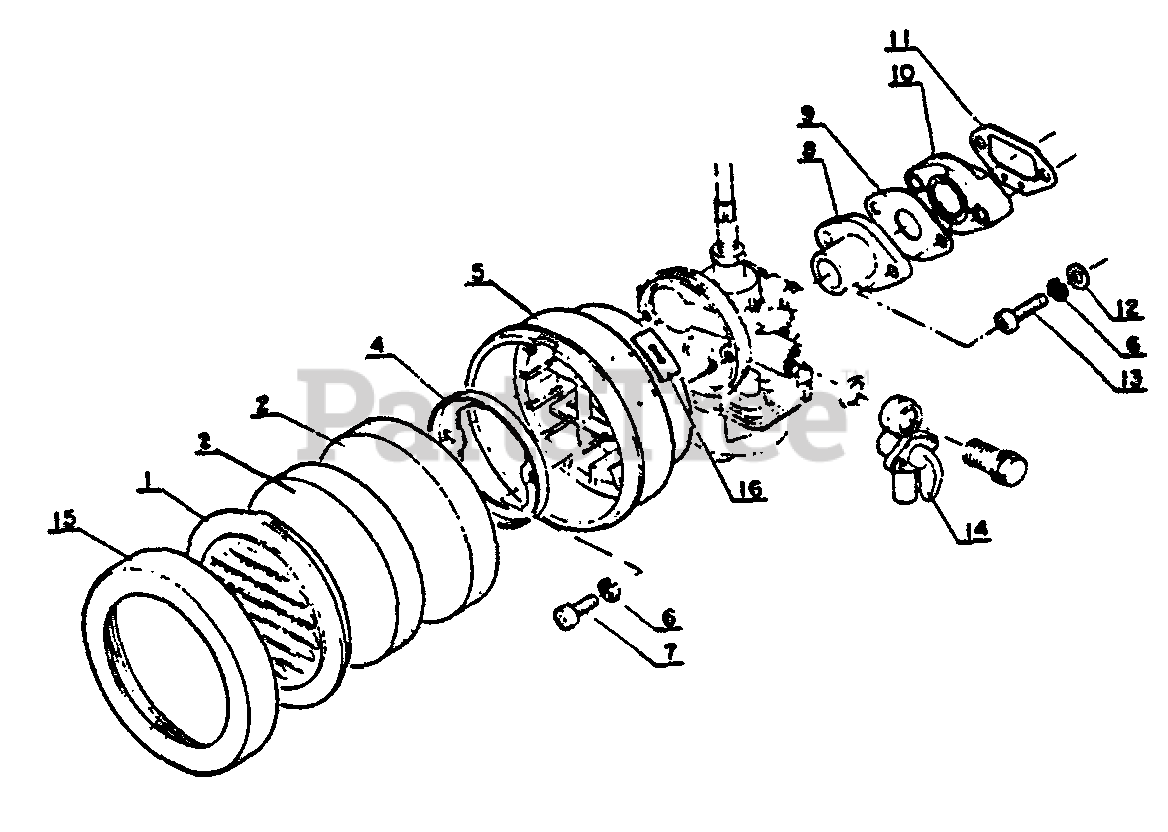

Air Cleaner Parts Diagram

  • Title

1

Echo 13031310211

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

2

Echo 13031010210

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

4

Echo 13042000110

BRACKET, AIR FILTER

$2.49

$

Usually ships in 2-4 days

0

5

Echo 13031410211

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

6

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo 90022004010

SCREW 4×10

$

$

Not available

8

Echo 13051004730

ADAPTER, INTAKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13001604730

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

10

Echo 13001710210

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 13001004630

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

12

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

13

Echo 90022004025

SCREW 4×25

$0.99

$

Usually ships in 2-4 days

0

14

Echo 13220000511

FUEL VALVE ASSY
(Superseded to 13220000512)

$14.99

$

Usually ships in 2-4 days

0

15

Echo 13034110210

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

16

Echo 89012100310

LABEL - CHOKE
(Superseded to 890121-00660)

$

$

Not available
