PB-202 - Echo Backpack Blower (SN: 0001001 - 0040501) Crankcase Parts Diagram

Backpack Blower

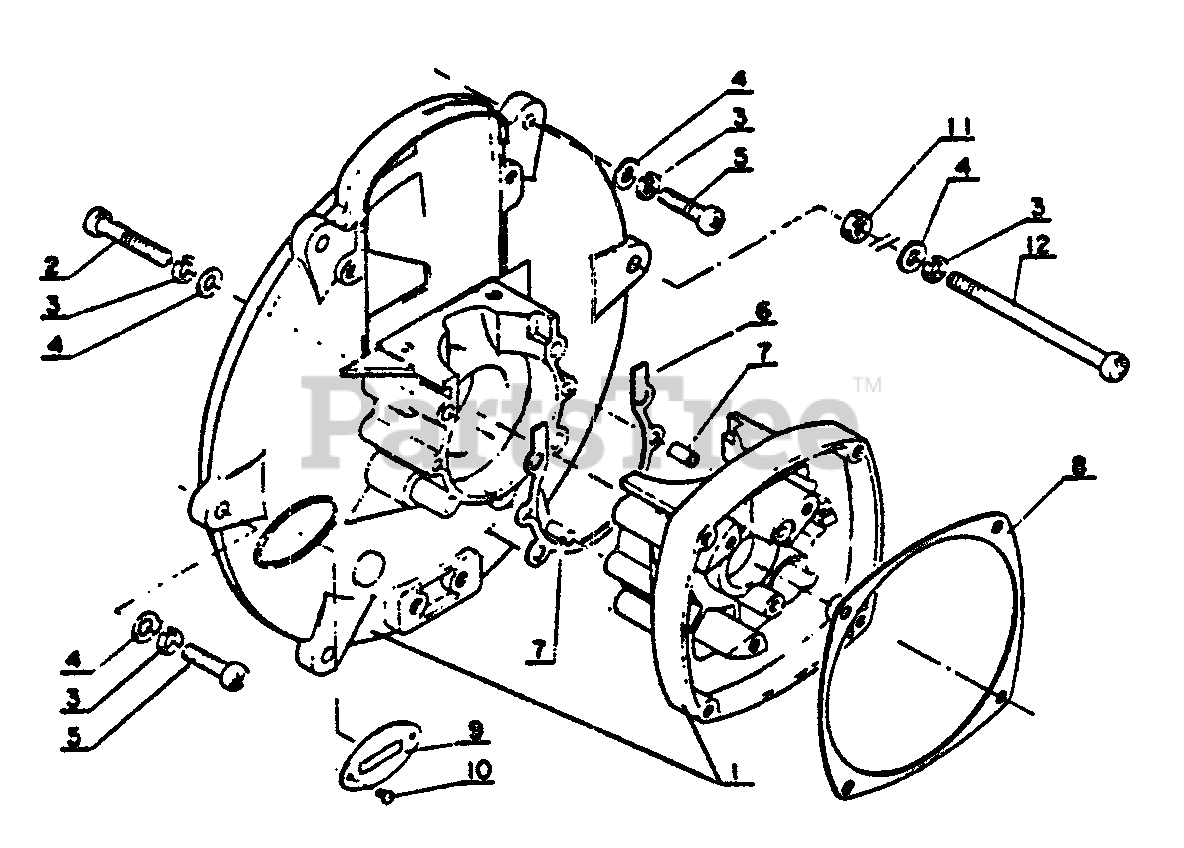

Crankcase Parts Diagram

  • Title

1

Echo 10020000660

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo 90022005028

SCREW 5×28

$0.99

$

In Stock, only 1 left!

0

3

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

4

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 90022005018

SCREW 5×18

$0.99

$

Usually ships in 2-4 days

0

6

GASKET, CRANKCASE

Note: Use Gasket Kit P/N 88900005921

$

$

Not available

7

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

8

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 89011000660

MODEL PLATE
(Superseded to Discontinued)

$

$

Not available

10

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo 90022005070

SCREW 5×70

$

$

Not available
