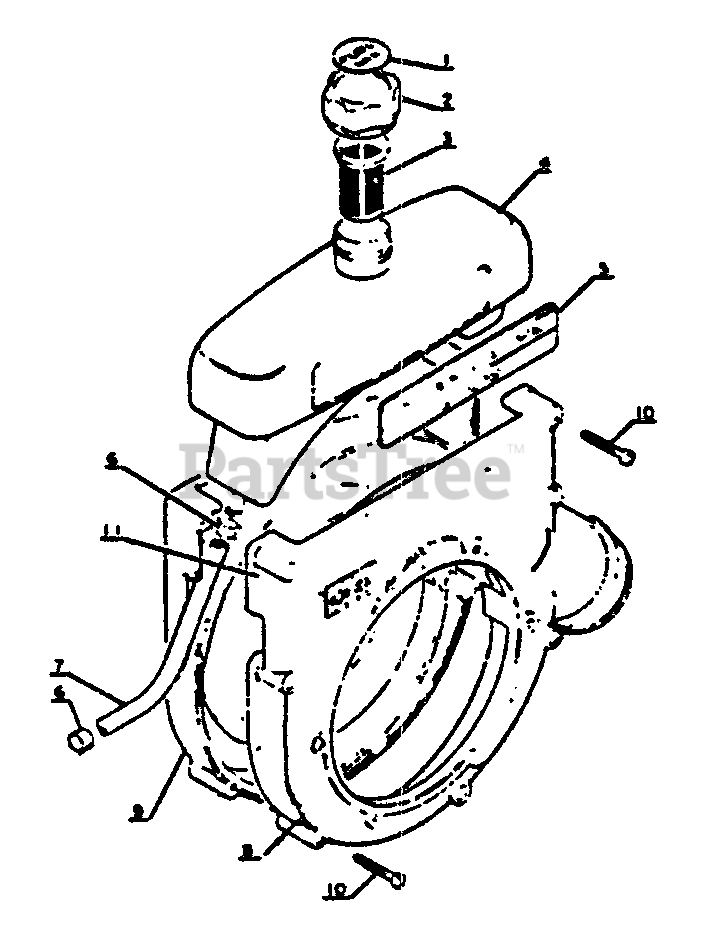

PB-202 - Echo Backpack Blower (SN: 0001001 - 0040501) Fuel Tank and Fancase Parts Diagram

Backpack Blower

Fuel Tank and Fancase Parts Diagram

  • Title

1

Echo 89015112732

LABEL - FUEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 13160407132

CAP ASSY
(Superseded to 13100403910)

$

$

Not available

3

Echo 13100305330

VENT, CAP

$2.99

$

In Stock, only 1 left!

0

4

Echo 89014710230

LABEL - FUEL MIX
(Superseded to 89015412730)

$

$

Not available

5

Echo 89013540660

LABEL - NAME

$

$

Currently unavailable

6

Echo 35701300210

CLAMP
(Superseded to 13201314010)

$3.49

$

Usually ships in 2-4 days

0

7

Echo 13201210210

PIPE - FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

8

Echo 20010700660

COVER, FAN - OUTER
(Superseded to 20010700662)

$

$

Not available

9

Echo 20011000660

COVER, FAN - INNER
(Superseded to 20011000661)

$

$

Not available

10

Echo 90024505035

SCREW - 5X35

$0.99

$

Usually ships in 2-4 days

0

11

Echo 89015906530

LABEL - FUEL VALVE
(Superseded to Discontinued)

$

$

Not available
