PB-202 - Echo Backpack Blower (SN: 0001001 - 0040501) Ignition Switch, Throttle Control S/N: 00022001 - 0005000 Parts Diagram

Backpack Blower

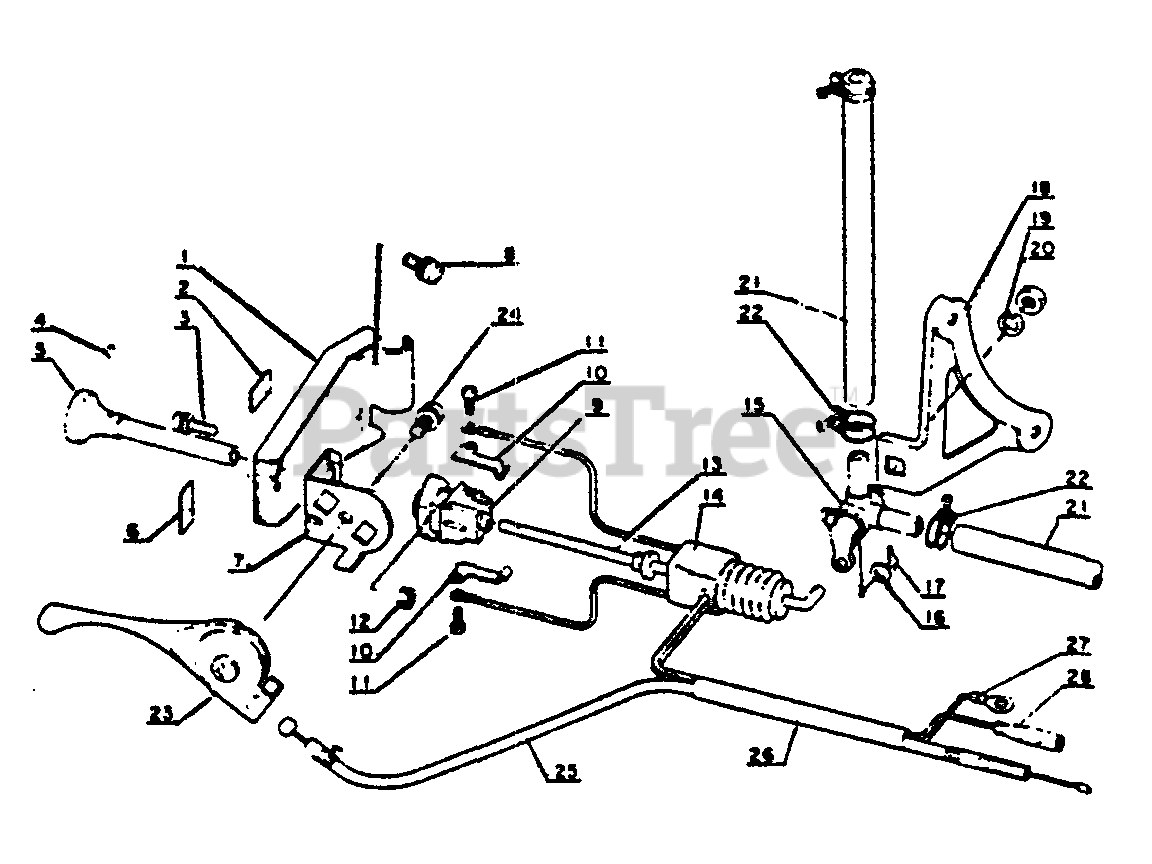

Ignition Switch, Throttle Control S/N: 00022001 - 0005000 Parts Diagram

  • Title

1

Echo 17812600661

BRACKET, SWITCH
(Superseded to 17812600662)

$

$

Not available

2

Echo 89015700660

LABEL - STOP
(Superseded to Discontinued)

$

$

Not available

3

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

4

Echo 90034016010

PIN - SPRING -- 1.6X10

$0.99

$

Usually ships in 2-4 days

0

5

Echo 16341400660

KNOB
(Superseded to 16340000660)

$21.99

$

Usually ships in 2-4 days

0

6

Echo 89014400660

LABEL - SAFETY
(Superseded to Discontinued)

$

$

Not available

7

Echo 17812300660

BRACKET, THROTTLE LEVER
(Superseded to 17812300661)

$

$

Not available

8

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

9

Echo 16341000660

BODY, SWITCH
(Superseded to 16340000660)

$21.99

$

Usually ships in 2-4 days

0

10

Echo 16341200660

CONTACT, SWITCH
(Superseded to Discontinued)

$

$

Not available

11

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

12

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

13

Echo 17901000660

ROD
(Superseded to 16340000660)

$21.99

$

Usually ships in 2-4 days

0

14

Echo 16391000660

BRACKET, SWITCH

$3.99

$

Usually ships in 2-4 days

0

15

Echo 13220000660

FUEL VALVE ASSY
(Superseded to 13220400660)

$12.99

$

In Stock, only 1 left!

0

16

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 13

0

17

Echo 17851400330

PIN

$0.99

$

Usually ships in 2-4 days

0

18

Echo 13252600660

BRACKET, FUEL VALVE

$3.99

$

Usually ships in 2-4 days

0

19

Echo 90060500001

LOCKWASHER - 6

$

$

Currently unavailable

20

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 9

0

21

Echo 13201200660

PIPE - FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

22

Echo 13201300360

RETAINER, PIPE
(Superseded to Discontinued)

$

$

Not available

23

Echo 17800000661

LEVER, THROTTLE
(Superseded to 17800000660)

$20.99

$

Usually ships in 2-4 days

0

24

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

25

Echo 17800100660

THROTTLE CONTROL ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo 17801600660

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

27

Echo 16201400661

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 15612100661

LEAD - IGNITION
(Superseded to Discontinued)

$

$

Not available
