PB-202 - Echo Backpack Blower (SN: 0001001 - 0040501) Ignition Switch, Throttle Control S/N: 0005001 - 0020500 Parts Diagram

Backpack Blower

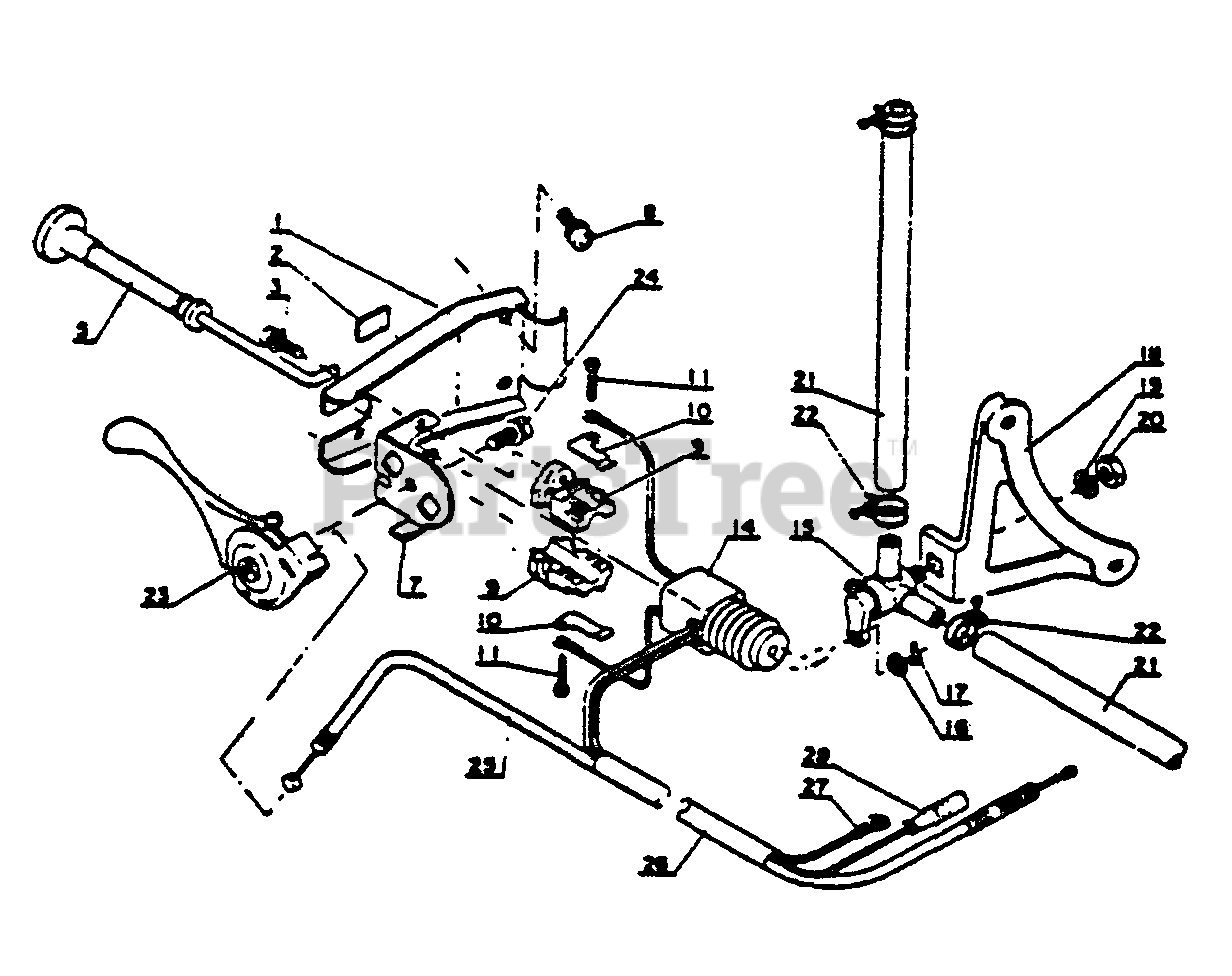

Ignition Switch, Throttle Control S/N: 0005001 - 0020500 Parts Diagram

  • Title

1

Echo 1781260062

BRACKET, SWITCH

$

$

Currently unavailable

2

Echo 89015700660

LABEL - STOP
(Superseded to Discontinued)

$

$

Not available

3

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

5

Echo 16341400661

KNOB
(Superseded to Discontinued)

$

$

Not available

7

Echo 17812300661

BRACKET, THROTTLE LEVER
(Superseded to Discontinued)

$

$

Not available

8

Echo 90324205010

SCREW - 5×10

$

$

Currently unavailable

9

Echo 163410-00661

BODY, SWITCH
(Superseded to Discontinued)

$

$

Not available

10

Echo 163412-00660

PLATE, SWITCH

$

$

Not available

11

Echo 90024503015

SCREW - 3×15
(Superseded to Discontinued)

$

$

Not available

12

Echo 900500-00004

NUT M4

$0.99

$

In Stock, Qty 20+

0

14

Echo 163910-00660

BRACKET, SWITCH

$3.99

$

Usually ships in 2-4 days

0

15

Echo 13220000660

FUEL VALVE ASSY
(Superseded to 13220400660)

$14.99

$

Usually ships in 2-4 days

0

16

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

17

Echo 17851400330

PIN

$0.99

$

Usually ships in 2-4 days

0

18

Echo 13252600660

BRACKET, FUEL VALVE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

20

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

21

Echo 13201200660

PIPE, FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

22

Echo 13201300360

CLAMP
(Superseded to Discontinued)

$

$

Not available

23

Echo 17800000661

LEVER, THROTTLE
(Superseded to 17800000660)

$24.99

$

Usually ships in 2-4 days

0

24

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

25

Echo 17800100660

THROTTLE CONTROL ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo 17800100660

THROTTLE CONTROL ASSY
(Superseded to Discontinued)

$

$

Not available

27

Echo 16201400661

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 15612100661

LEAD
(Superseded to Discontinued)

$

$

Not available
