PB-202 - Echo Backpack Blower (SN: 0040502 - 9999999) Carburetor Parts Diagram

Backpack Blower

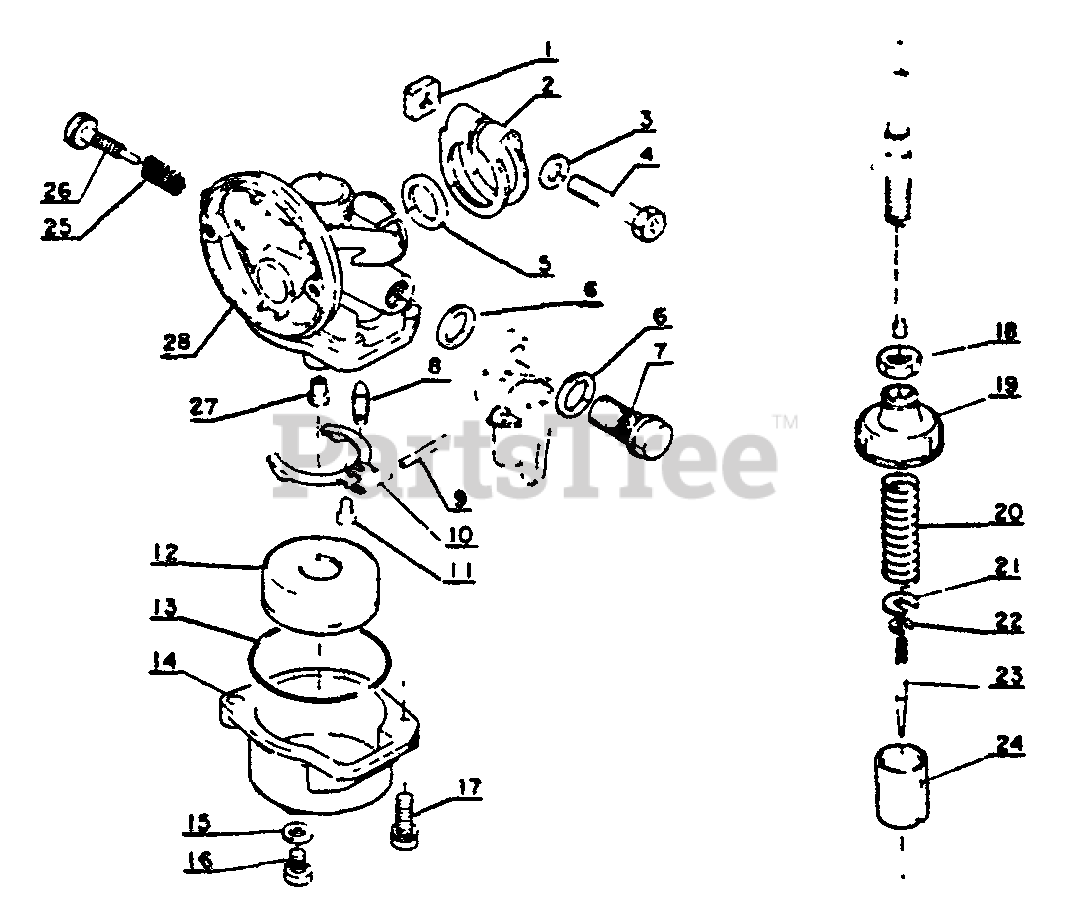

Carburetor Parts Diagram

  • Title

Echo 12000000660

CARBURETOR
(Superseded to 12000000661)

Note: Consisting of 1-28

$

$

Not available

1

Echo 12015101321

NUT
(Superseded to 12015110210)

$

$

Not available

2

Echo 12014610210

CLIP
(Superseded to Discontinued)

$

$

Not available

3

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 12014701321

BOLT
(Superseded to Discontinued)

$

$

Not available

5

Echo 12014901820

O-RING

$3.99

$

Usually ships in 2-4 days

0

6

Echo 120130-10210

GASKET
(Superseded to Discontinued)

$

$

Not available

7

Echo 120131-00120

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

8

Echo 12010210210

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 12013210210

PIN, METERING LEVER
(Superseded to 12013210211)

$

$

Not available

10

Echo 12012110210

LEVER, METERING
(Superseded to Discontinued)

$

$

Not available

11

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, only 4 left!

0

12

Echo 12013310210

FLOAT
(Superseded to Discontinued)

$

$

Not available

13

Echo 120123-10210

GASKET, CHAMBER
(Superseded to Discontinued)

$

$

Not available

14

Echo 12012410210

CHAMBER, FLOAT
(Superseded to Discontinued)

$

$

Not available

15

Echo 12013600120

PACKING

$0.99

$

Usually ships in 2-4 days

0

16

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, only 4 left!

0

17

Echo 900241-04012

SCREW 4×12

$0.99

$

Usually ships in 2-4 days

0

18

Echo 120111-04730

NUT
(Superseded to Discontinued)

$

$

Not available

19

Echo 12011310210

COVER, TOP
(Superseded to 12011310211)

$18.99

$

In Stock, only 1 left!

0

20

Echo 12011401820

SPRING, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 12011500120

SEAT, SPRING
(Superseded to 12011508020)

$

$

Not available

22

Echo 12011610210

E-RING
(Superseded to Discontinued)

$

$

Not available

23

Echo 12011700660

NEEDLE, JET
(Superseded to 12010300660)

$

$

Not available

24

Echo 12011810210

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

25

Echo 120160-01321

SPRING, IDLE ADJUST

$

$

Not available

26

Echo 12015900660

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

27

Echo 12012200660

JET, MAIN

$15.99

$

In Stock, only 1 left!

0

28

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
