PB-202 - Echo Backpack Blower (SN: 0040502 - 9999999) Cylinder, Muffler Parts Diagram

Handheld blower PB-202: features a compact 28x39x45 in (11.0x15.4x17.7 in) chassis, weighing 5.4 kg (11.9 lb). It uses an air-cooled, 2-cycle single-cylinder engine, 21.2 cc displacement, with a top speed of 7,500 rpm (idle 2,000-2,500 rpm).

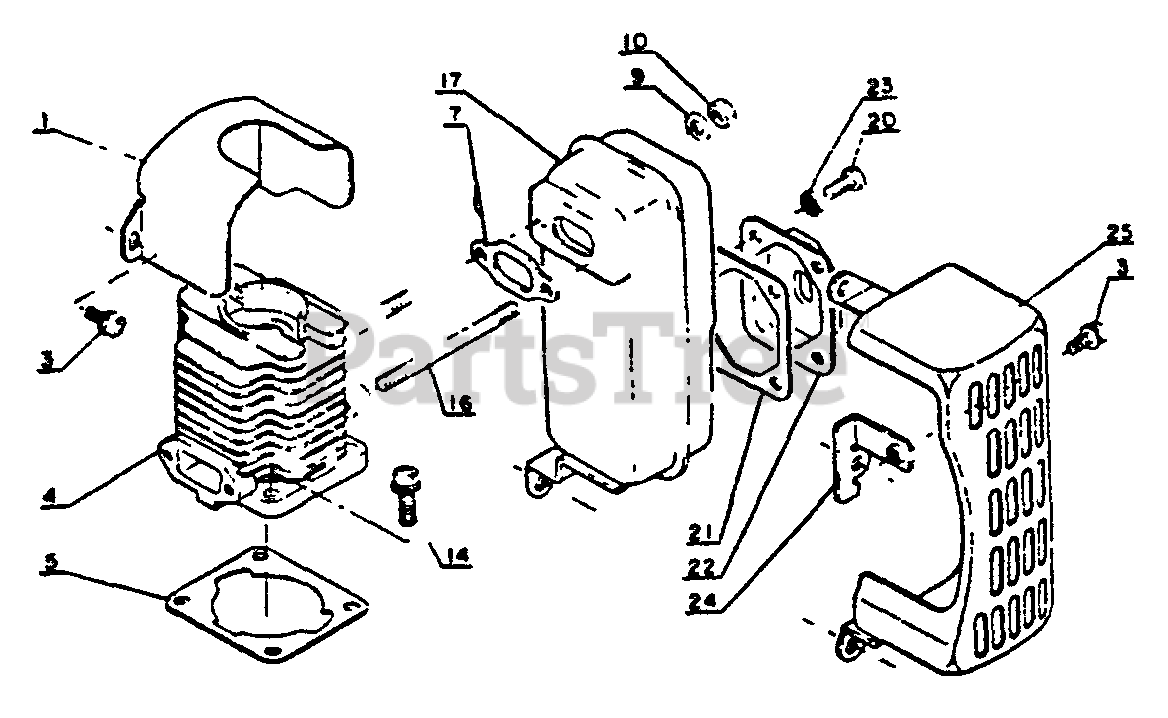

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 10151410210

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

3

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101110210

CYLINDER
(Superseded to 10101100960)

$

$

Not available

5

GASKET, CYLINDER

Note: Use Gasket Kit, P/N 88900005920

$

$

Not available

7

Echo 14551004630

GASKET, MUFFLER

$2.99

$

Usually ships in 2-4 days

0

9

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 13

0

14

Echo 900242-05018

SCREW 5×18

$0.99

$

In Stock, only 2 left!

0

16

Echo 10101405731

BOLT, STUD

$1.99

$

Usually ships in 2-4 days

0

17

Echo 14560500960

MUFFLER
(Superseded to Discontinued)

$

$

Not available

20

Echo 90022004010

SCREW 4×10

$

$

Not available

21

Echo 14561800960

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

22

Echo 14561900660

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

23

Echo 90061000004

WASHER, LOCK 4 MM

$0.99

$

In Stock, only 1 left!

0

24

Echo 14571500660

SUPPORTER
(Superseded to Discontinued)

$

$

Not available

25

Echo 14563100660

COVER, MUFFLER
(Superseded to 14587100660)

$

$

Not available

Echo 88900005920

GASKET KIT
(Superseded to 88900005921)

$11.99

$

Usually ships in 2-4 days

0
