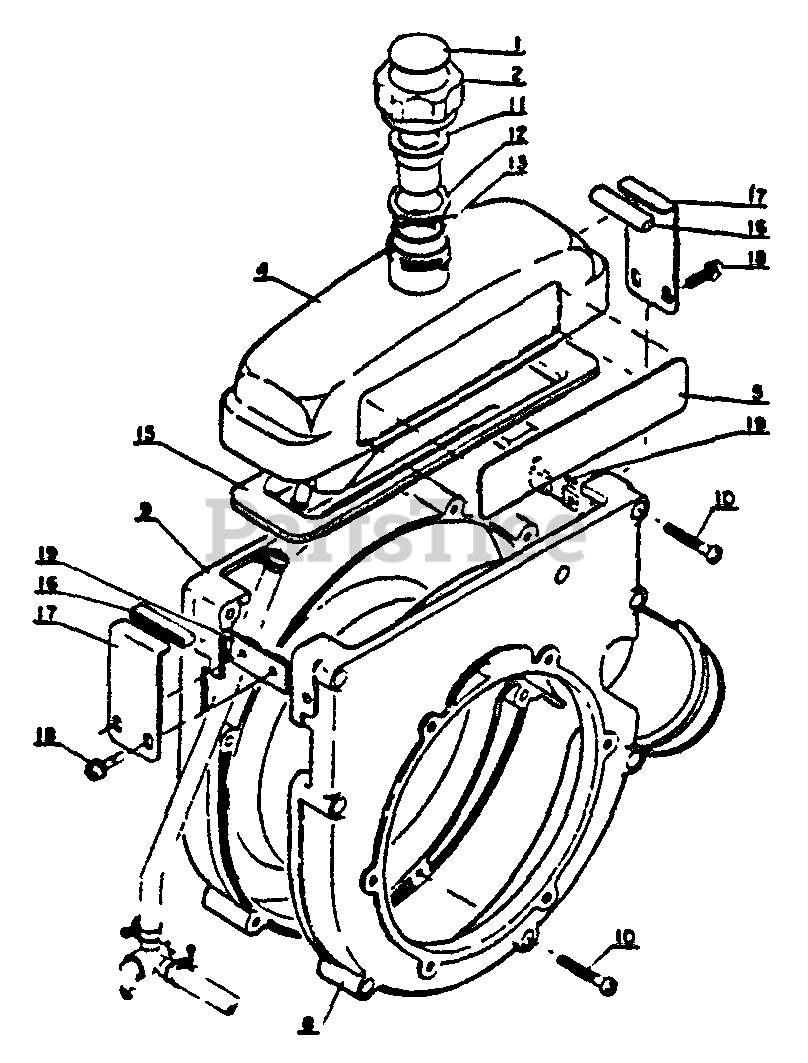

PB-202 - Echo Backpack Blower (SN: 0040502 - 9999999) Fuel Tank and Fancase Parts Diagram

Backpack Blower

Fuel Tank and Fancase Parts Diagram

  • Title

Echo 13100400660

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 13101705330

CAP
(Superseded to 13160001110)

$

$

Not available

11

Echo 13100300660

CUP
(Superseded to 13100305330)

$3.49

$

Usually ships in 2-4 days

0

12

Echo 13101600660

GASKET, CAP
(Superseded to Discontinued)

$

$

Not available

13

Echo 90072000025

O-RING - 25
(Superseded to Discontinued)

$

$

Not available

1

Echo 89014710230

LABEL - FUEL MIX
(Superseded to 89015412730)

$

$

Not available

4

Echo 13101000661

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

5

Echo 89013500660

LABEL - NAME
(Superseded to Discontinued)

$

$

Not available

8

Echo 20010700662

COVER, FAN - OUTER
(Superseded to Discontinued)

$

$

Not available

9

Echo 20011000662

COVER, FAN - INNER
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024505035

SCREW - 5X35

$0.99

$

Usually ships in 2-4 days

0

15

Echo 13192500660

SEAL
(Superseded to Discontinued)

$

$

Not available

16

Echo 13192400660

CUSHION
(Superseded to Discontinued)

$

$

Not available

17

Echo 13191000660

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

18

Echo 90024205018

SCREW - 5X18

$0.99

$

In Stock, only 2 left!

0

19

Echo 13190800660

WASHER
(Superseded to Discontinued)

$

$

Not available
