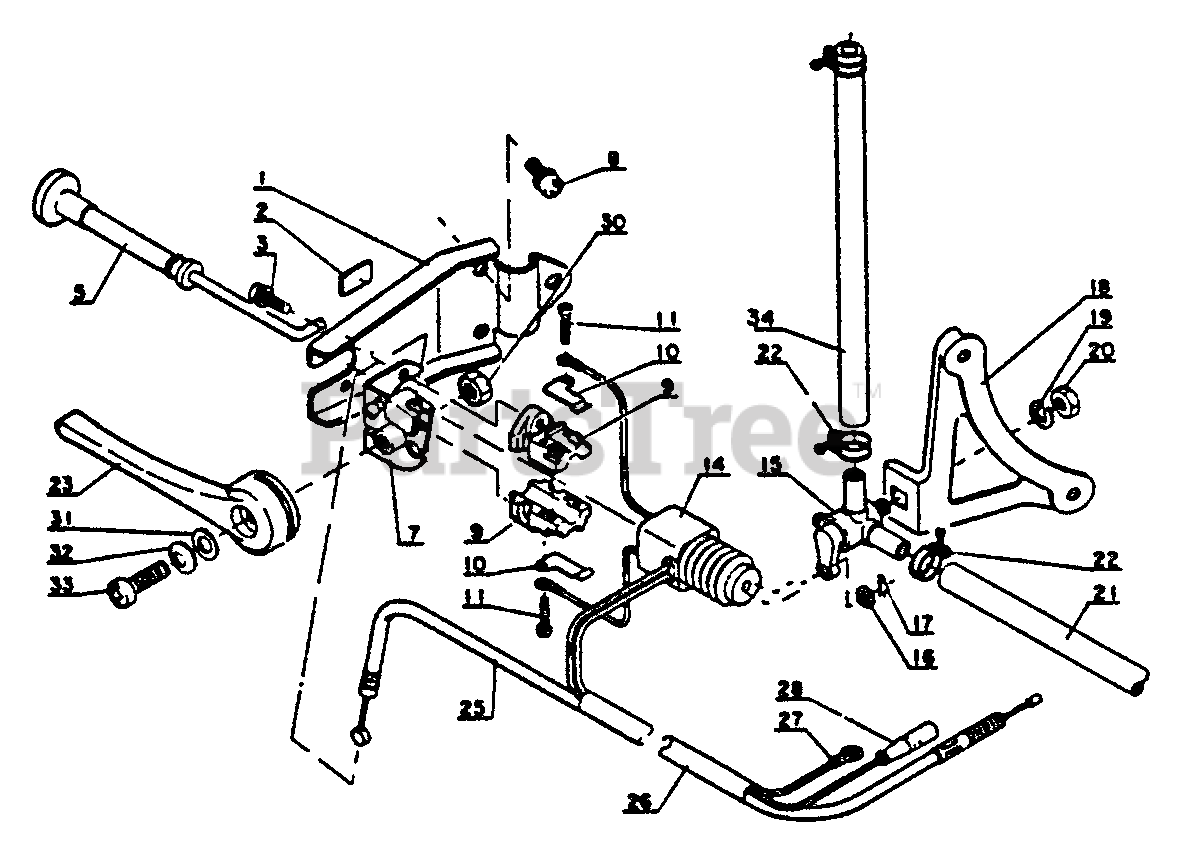

PB-202 - Echo Backpack Blower (SN: 0040502 - 9999999) Ignition Switch, Throttle Control Parts Diagram

Backpack Blower

Ignition Switch, Throttle Control Parts Diagram

  • Title

1

Echo 17812600663

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

2

Echo 89015700660

LABEL - STOP
(Superseded to Discontinued)

$

$

Not available

3

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

5

Echo 16341400661

KNOB
(Superseded to Discontinued)

$

$

Not available

7

Echo 17812300662

BRACKET, THROTTLE LEVER
(Superseded to Discontinued)

$

$

Not available

8

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

9

Echo 16341000661

BODY, SWITCH
(Superseded to Discontinued)

$

$

Not available

10

Echo 16341200660

CONTACT, SWITCH
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024503015

SCREW - 3X15
(Superseded to Discontinued)

$

$

Not available

14

Echo 16391000660

BRACKET, SWITCH

$3.99

$

Usually ships in 2-4 days

0

15

Echo 13220000660

FUEL VALVE ASSY
(Superseded to 13220400660)

$14.99

$

Usually ships in 2-4 days

0

16

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 9

0

17

Echo 17851400330

PIN

$0.99

$

Usually ships in 2-4 days

0

18

Echo 13252600660

BRACKET, FUEL VALVE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, Qty 16

0

20

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 13201200660

PIPE - FUEL
(Superseded to Discontinued)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

22

Echo 13201300360

RETAINER, PIPE
(Superseded to Discontinued)

$

$

Not available

23

Echo 17801000660

TRIGGER, THROTTLE
(Superseded to 17801000661)

$6.99

$

In Stock, only 2 left!

0

25

Echo 17800100661

THROTTLE CONTROL ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo 17801600660

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

27

Echo 16201400661

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 15612100661

LEAD - IGNITION
(Superseded to Discontinued)

$

$

Not available

32

Echo 17812900660

WASHER
(Superseded to 90060700006)

$0.99

$

Usually ships in 2-4 days

0

33

Echo 90022006020

SCREW - 6X20
(Superseded to 90024206020)

$0.99

$

In Stock, Qty 6

0

31

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

30

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

34

Echo 13201000660

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available
