PB 20A46 (960420169-00) - Poulan Pro Lawn Tractor (2014-09) ENGINE Parts Diagram

Lawn Tractor

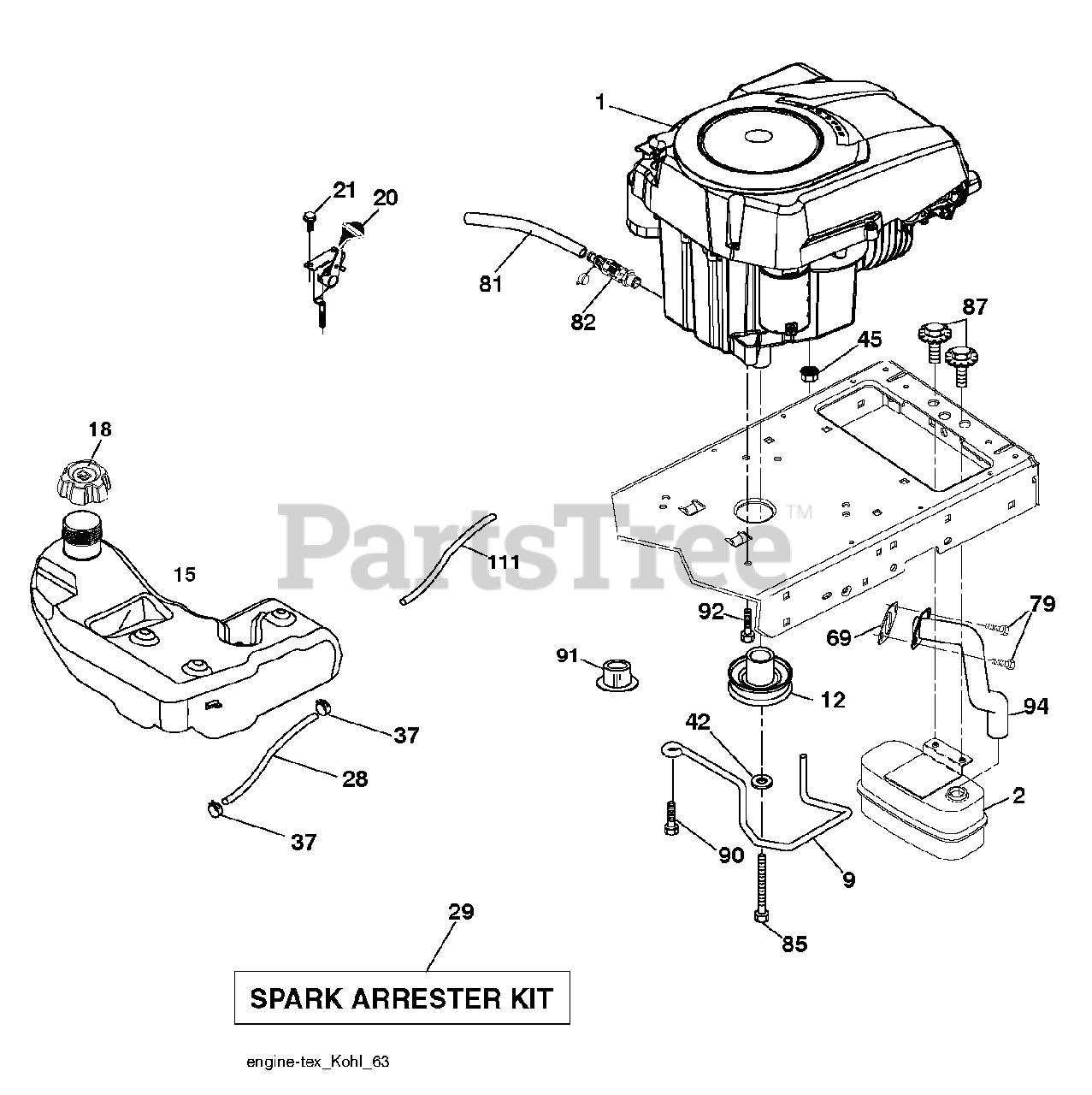

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE KOHLER MODEL SV601-3244 (585508001)

$

$

Not available

2

Poulan 580532301

MUFFLER.SINGLE.LRG.BRIGGS.KOHL
(Superseded to 532188655)

$51.99

$

In Stock, Qty 6

0

9

Poulan 532194319

KEEPER.BELT.ENGINE.3.25

$13.99

$

In Stock, only 2 left!

0

12

Poulan 532405140

PULLEY.ENGINE.5.0.PD

$37.99

$

Usually ships in 3-10 days

0

15

Poulan 532414151

TANK.ASM.FUEL.3GA.CARB
(Superseded to 532420709)

$182.99

$

Usually ships in 3-10 days

0

18

Poulan 585124802

Fuel Cap Assembly, 3" Black

$17.99

$

In Stock, only 2 left!

0

20

Poulan 532183897

(Superseded to 532176636)

$34.99

$

In Stock, only 4 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.49

$

In Stock, Qty 20+

0

28

Poulan 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$26.99

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$193.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 14

0

45

Poulan 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Poulan 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 20+

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, Qty 10

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 8

0

91

Poulan 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

92

Poulan 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 13

0

94

Poulan 583955301

Exhaust Tube, Kohler Courage

$34.99

$

In Stock, only 2 left!

0

111

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$14.99

$

Usually ships in 3-10 days

0
