PB-210 E - Echo Handheld Blower (Type 1) Carburetor Parts Diagram

PB-210E Echo Handheld Blower (Type 1) - 2-cycle, 21.2 ml air-cooled single-cylinder engine with recoil starter, flywheel magneto ignition, and Walbro WA diaphragm (WT-409B) carburetor.

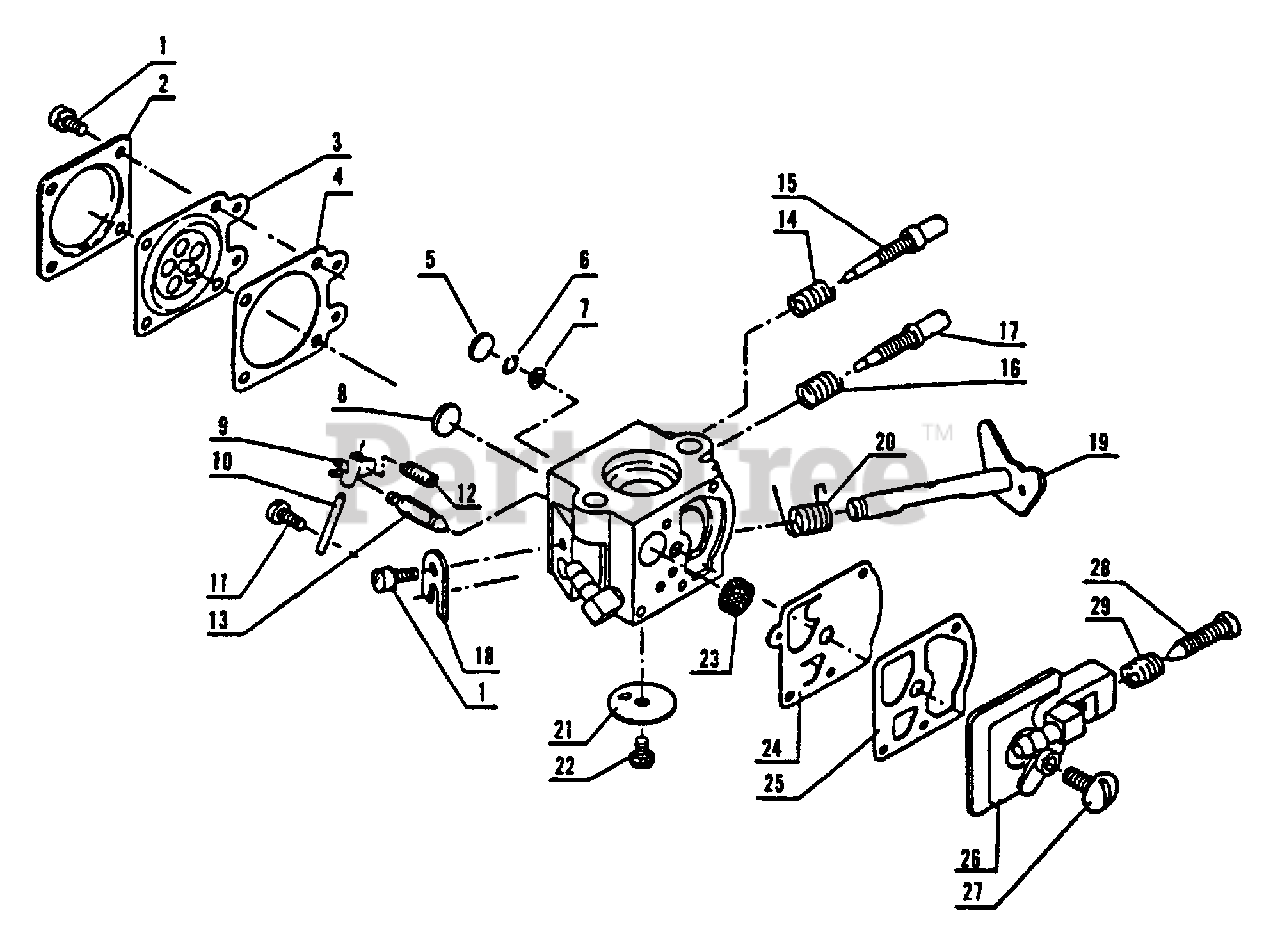

Carburetor Parts Diagram

  • Title

Echo 12300003360

CARBURETOR - WA-157

$99.99

$

In Stock, only 1 left!

0

1

SCREW

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

2

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM, METERING

Note: Included in Repair Kit P/N 12310016330 & Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

4

GASKET, METERING

Note: Included in Repair Kit P/N 12310016330 & Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

5

PLUG, WELCH

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

------------------

RING, RETAINING

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

7

STRAINER

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

8

PLUG, WELCH

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

9

LEVER, METERING

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

10

PIN, METERING LEVER

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

11

SCREW

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

12

SPRING, METERING LEVER

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

13

VALVE, INLET NEEDLE

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

------------------

SPRING, NEEDLE

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

15

Echo 12312006720

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

17

Echo 12311824430

NEEDLE, LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

19

Echo 12311711230

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

21

Echo 12311605230

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

22

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

23

STRAINER

Note: Included in Repair Kit P/N 12310016330

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included in Repair Kit P/N 12310016330 & Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

------------------

GASKET, PUMP

Note: Included in Repair Kit P/N 12310016330 & Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

26

Echo 12312416530

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

27

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

28

Echo 12313411130

SCREW, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

29

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

Echo 12310016330

REPAIR KIT, CARBURETOR

Note: Includes Items 1, 3-14, 16, 23-25

$32.99

$

In Stock, only 2 left!

0

Echo 12310110530

GASKET / DIAPHRAGM KIT

Note: Includes Items 3 & 4, 25 & 26

$16.99

$

In Stock, only 2 left!

0
