PB-210 E - Echo Handheld Blower (Type 1) Crankcase, Engine, Engine Cover Parts Diagram

PB-210E Echo Handheld Blower (Type 1) - 2-cycle, 21.2 ml air-cooled single-cylinder engine with recoil starter, flywheel magneto ignition, and Walbro WA diaphragm (WT-409B) carburetor.

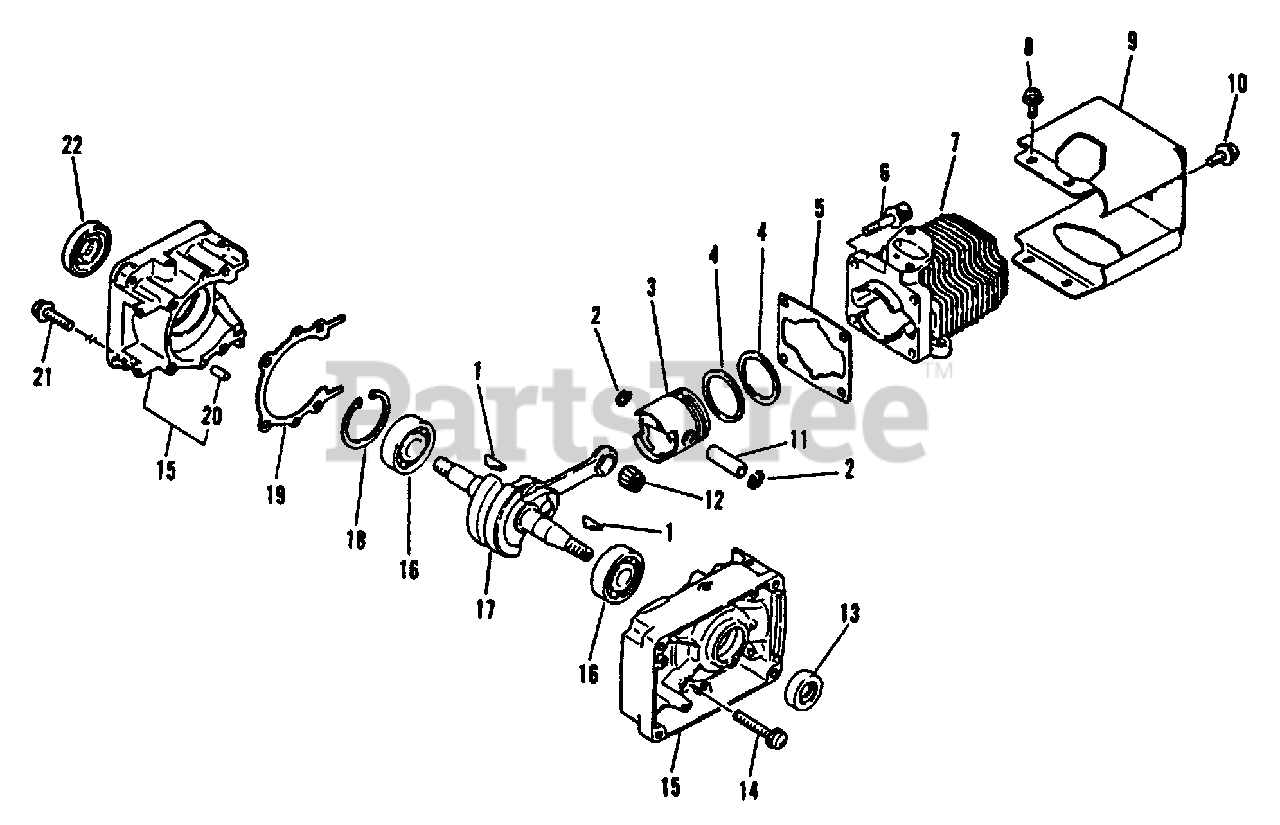

Crankcase, Engine, Engine Cover Parts Diagram

  • Title

1

Echo 90032203014

KEY, WOODRUFF - 3×14
(Superseded to 90032303014)

$1.99

$

In Stock, Qty 20+

0

2

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

3

Echo 10001003360

PISTON
(Superseded to 10000003360)

$60.99

$

Usually ships in 2-4 days

0

4

Echo 10001105530

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

5

Echo 10101003361

GASKET, CYLINDER

Note: Included In GASKET KIT

$

$

Not available

6

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 10101103360

CYLINDER
(Superseded to 10101103362)

$158.99

$

Usually ships in 2-4 days

0

8

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

9

Echo 10151403360

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

10

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

11

Echo 10001303360

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

12

Echo 10001221230

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

13

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 5

0

14

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

15

Echo 10020003360

CRANKCASE KIT

Note: Includes ITEM 20

$149.99

$

Usually ships in 2-4 days

0

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, Qty 20+

0

17

Echo 10010003360

CRANKSHAFT

$270.99

$

Usually ships in 2-4 days

0

18

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, Qty 20+

0

19

GASKET, CRANKCASE

Note: Included In Kit 88900003361

$

$

Not available

20

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

21

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

22

Echo 10021203930

SEAL, OIL 12

$6.49

$

In Stock, Qty 16

0

22

Echo 88900003361

GASKET KIT
(Superseded to Discontinued)

Note: Included in Item 5 & 19

$

$

Not available

Echo 10101003361

GASKET, CYLINDER

$

$

Not available

GASKET, CRANKCASE

$

$

Not available

Echo 13001003361

GASKET

$0.99

$

In Stock, Qty 6

0

Echo 14551003361

GASKET, MUFFLER
(Superseded to Discontinued)

$

$

Not available
