PB-210 E - Echo Handheld Blower (Type 1) Fuel System, Ignition, Starter Parts Diagram

Handheld Blower (Type 1)

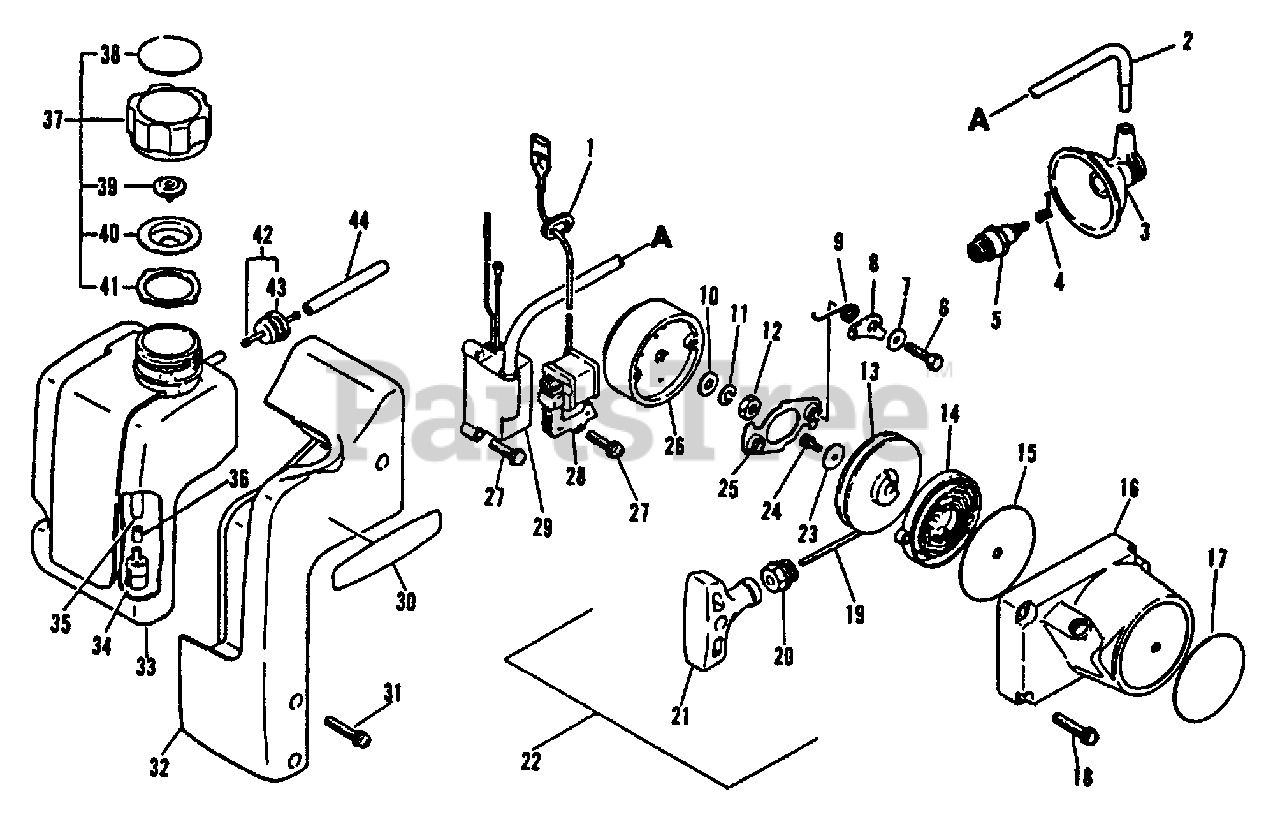

Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 15611403360

GROMMET

$1.49

$

In Stock, Qty 5

0

2

Echo 15661103360

TUBE

$1.49

$

Usually ships in 2-4 days

0

3

Echo 15901203360

CAP, SPARK PLUG

$13.99

$

Usually ships in 2-4 days

0

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

6

Echo 90010005020

BOLT - 5X20

$0.99

$

In Stock, Qty 8

0

7

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 17721804920

PAWL, STARTER

$3.99

$

Usually ships in 2-4 days

0

9

Echo 17723404920

SPRING, RETURN

$1.49

$

Usually ships in 2-4 days

0

10

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

11

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

13

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

14

Echo 17722006530

SPRING, REWIND

$15.99

$

In Stock, only 2 left!

0

15

Echo 17722116530

PLATE, STARTER

$

$

Not available

16

Echo 17720903360

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

17

Echo 89011217832

LABEL - ECHO
(Superseded to 89011849330)

$6.99

$

In Stock, only 2 left!

0

18

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

19

------------------

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944440000

$

$

Not available

20

Echo 17722705020

GUIDE, ROPE

$4.49

$

In Stock, only 3 left!

0

21

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 10

0

22

Echo 17720003360

STARTER ASSY

Note: Includes Items 13 - 16, 19 - 21, 23 & 24

$68.99

$

Usually ships in 2-4 days

0

23

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 6

0

24

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

25

Echo 17730703360

HOLDER, PAWL

$7.99

$

Usually ships in 2-4 days

0

26

Echo 15680003360

FLYWHEEL
(Superseded to 15680003361)

$110.99

$

Usually ships in 2-4 days

0

27

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

28

Echo 15662703360

COIL, EXCITER
(Superseded to 15662703361)

$

$

Not available

29

Echo 15660103360

COIL, IGNITION
(Superseded to 15660103361)

$

$

Not available

30

Echo 89013844330

LABEL - ECHO
(Superseded to 89011848730)

$0.99

$

In Stock, Qty 6

0

31

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

32

Echo 13191003360

BRACKET, FUEL TANK

$34.99

$

Usually ships in 2-4 days

0

33

Echo 13101003360

TANK, FUEL
(Superseded to 13101003361)

$

$

Not available

34

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

35

Echo 13201003360

PIPE - 3X7X135 -- BLACK
(Superseded to Discontinued)

Note: RePower BULK OPTION: 90016

$

$

Not available

36

Echo 13200115030

VENT

$4.99

$

In Stock, Qty 6

0

37

Echo 13160003360

CAP ASSY
(Superseded to 13100406610)

Note: Includes Items 38 - 41

$12.99

$

In Stock, only 3 left!

0

38

Echo 89015412730

LABEL - FUEL MIX
(Superseded to 89014706160)

$

$

Not available

39

Echo 13131406320

VENT

$5.99

$

In Stock, Qty 5

0

40

Echo 13101521330

HOLDER, VENT
(Superseded to A358000000)

$

$

Not available

41

Echo 13101621230

GASKET, CAP

$3.49

$

In Stock, only 3 left!

0

42

Echo 13200503360

GROMMET KIT
(Superseded to Discontinued)

Note: Includes ITEM 43

$

$

Not available

43

Echo 13211521330

GROMMET

$2.99

$

Usually ships in 2-4 days

0

44

Echo 13201203360

PIPE, FUEL - 3X7X65
(Superseded to Discontinued)

Note: RePower BULK OPTION: 90016

$

$

Not available
