PB-210 E - Echo Handheld Blower (Type 1) Intake, Air Cleaner, Exhaust Parts Diagram

PB-210E Echo Handheld Blower (Type 1) - 2-cycle, 21.2 ml air-cooled single-cylinder engine with recoil starter, flywheel magneto ignition, and Walbro WA diaphragm (WT-409B) carburetor.

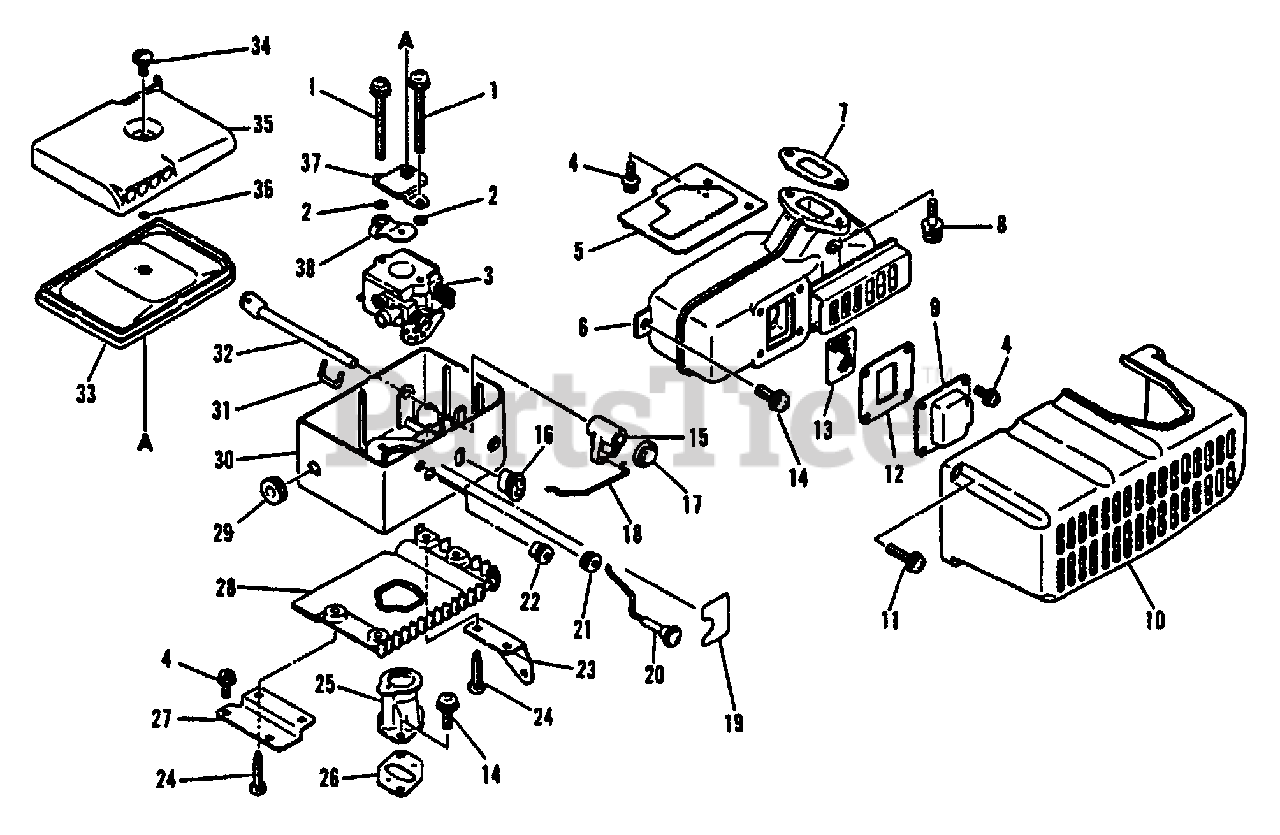

Intake, Air Cleaner, Exhaust Parts Diagram

  • Title

1

Echo 90024205045

SCREW 5×45

$0.99

$

Usually ships in 2-4 days

0

2

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

3

Echo 12300003360

CARBURETOR - WA-157

$99.99

$

In Stock, only 1 left!

0

4

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

5

Echo 10027003360

INSULATOR

$5.49

$

Usually ships in 2-4 days

0

6

Echo 14585803360

MUFFLER
(Superseded to Discontinued)

$

$

Not available

7

Echo 14551003361

GASKET, MUFFLER
(Superseded to Discontinued)

Note: Included In Kit 88900003361

$

$

Not available

8

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

9

Echo 14580903360

LID, MUFFLER
(Superseded to 14580903361)

$

$

Not available

10

Echo 14590603360

COVER, EXHAUST
(Superseded to 14590603361)

$

$

Not available

11

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

12

Echo 14586603361

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

13

Echo 14586209520

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

14

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

15

Echo 17801703360

ARM, THROTTLE LEVER

$2.99

$

Usually ships in 2-4 days

0

16

Echo 12901003361

GROMMET
(Superseded to Discontinued)

$

$

Not available

17

Echo 17811403360

HOLDER, THROTTLE LEVER

$1.49

$

Usually ships in 2-4 days

0

18

Echo 17804603360

ROD, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

19

Echo 89015803360

LABEL
(Superseded to Discontinued)

$

$

Not available

20

Echo 17851003360

ROD, CHOKE

$10.99

$

Usually ships in 2-4 days

0

21

Echo 17881003930

GROMMET

$1.99

$

In Stock, only 1 left!

0

22

Echo 12902303360

GROMMET
(Superseded to Discontinued)

$

$

Not available

23

Echo 13043103360

BRACKET

$3.49

$

Usually ships in 2-4 days

0

24

Echo 900249-05025

SCREW 5×25
(Superseded to Discontinued)

$

$

Not available

25

Echo 13051003360

ADAPTER, INTAKE

$21.99

$

In Stock, only 2 left!

0

26

Echo 13001003361

GASKET

$0.99

$

In Stock, Qty 6

0

27

Echo 13042903360

BRACKET

$3.49

$

Usually ships in 2-4 days

0

28

Echo 13035503360

INSULATOR

$13.99

$

Usually ships in 2-4 days

0

29

Echo 12902311130

GROMMET

$1.99

$

Usually ships in 2-4 days

0

30

Echo 13030603361

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

31

Echo 17803203360

CONNECTOR, THROTTLE

$1.49

$

Usually ships in 2-4 days

0

32

Echo 17812403360

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

33

Echo 13031003360

FILTER, AIR

$14.99

$

In Stock, Qty 11

0

34

Echo 13041522130

SCREW

$3.49

$

Usually ships in 2-4 days

0

35

Echo 13031303360

COVER, AIR FILTER
(Superseded to 13031303361)

$

$

Not available

36

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0

37

Echo 13040522130

BRACKET, AIR FILTER
(Superseded to A244000030)

$

$

Not available

38

Echo 17851522130

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

Echo 88900003361

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
