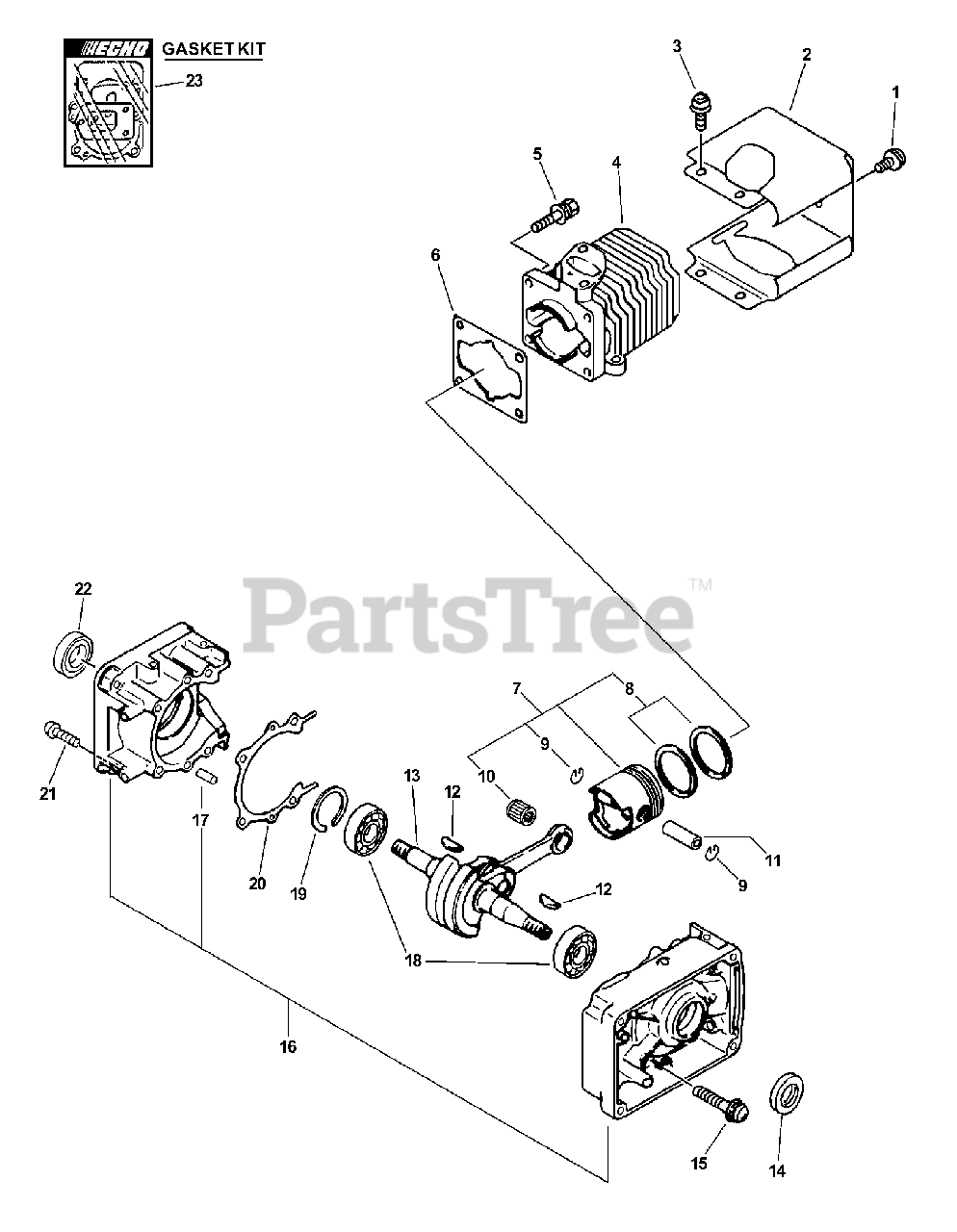

PB-210 - Echo Handheld Blower (SN: 03001001 - 03999999) Engine, Crankcase, Cylinder Cover Parts Diagram

Handheld Blower

Engine, Crankcase, Cylinder Cover Parts Diagram

  • Title

1

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

2

Echo A160000230

SHIELD, CYLINDER

$8.49

$

Usually ships in 2-4 days

0

3

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

4

Echo A130000191

CYLINDER

$130.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo 10101003361

GASKET, CYLINDER

Note: Included In GASKET KIT

$

$

Not available

7

Echo 10000003361

PISTON KIT

Note: INCLUDES ITEMS 8-11

$60.99

$

Usually ships in 2-4 days

0

8

Echo 10001105530

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

10

Echo 10001221230

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

11

Echo 10001303360

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

12

Echo 90032303014

KEY - 3X14

$1.99

$

In Stock, Qty 20+

0

13

Echo 10010003360

CRANKSHAFT ASSY

$270.99

$

Usually ships in 2-4 days

0

14

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 20+

0

15

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

16

Echo 10020003360

CRANKCASE KIT

Note: Includes ITEM 17

$149.99

$

Usually ships in 2-4 days

0

17

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, only 4 left!

0

18

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 2 left!

0

19

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 2 left!

0

20

Echo 10024203360

GASKET, CRANKCASE

$0.99

$

Usually ships in 2-4 days

0

21

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 6

0

22

Echo 10021203930

SEAL, OIL

$6.49

$

In Stock, Qty 14

0

23

Echo P021002401

GASKET KIT
(Superseded to P021002402)

Note: GASKET KIT

$23.99

$

Usually ships in 2-4 days

0
